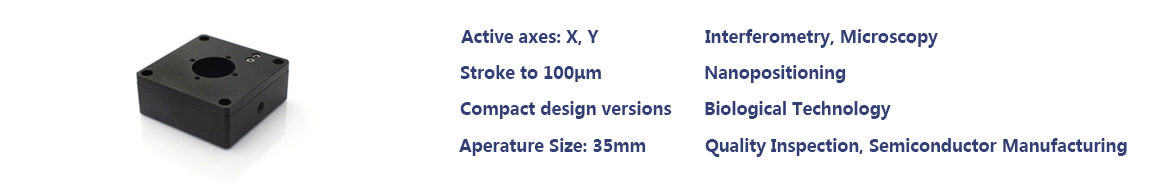

P12.XY/XZ-D3 is XY/XZ-axes motion piezoelectric scanner, with compact structure, external dimensions of 70×70×24mm, and a stroke of up to 100μm. Piezoelectric drive, frictionless, flexible hinge guide system enables this series of products to achieve nano-level resolution, millisecond response time, and the aperture is Φ35mm, which is suitable for sample positioning in microscopy and scanning.


Features


  XY/XZ axes motion

 Stroke to 100μm

 Load to 0.6kg

 Aperture: Ø35mm(Ø25mm is optional )

 Quick response




Appearance

P12.XY-D3 moving part

P12.XZ-D3 moving part

Small Size Large Displacement

P12 adopts amplified mechanism, ultra-small volume shape, and could achieve scanning range up to 100μm, aperture could be selected 25mm(35mm is optional).
P12 is optimized by FEA finite element analysis and has the advantages of zero friction, ultra-high guiding precision. It has built-in high-reliability PZT to ensure the reliability and stability of the scanner.

Open/closed Loop Curve

Application case-Inverted Piezo Scanner


Applications


 Scanning interference

 Confocal microscopy

 Wafer positioning

 Surface measurement

 Image processing and stabilization




P12 series


Aperture: φ25mm version:

P12.X

P12.Z

P12.XY

P12.XZ

P12.XYZ


Aperture: φ25mm version:





P12.X/Z-D3

P12.XY/XZ-D3

P12.XYZ-D3



    Technical data

Models

End with S:Closed loop

P12.XY100S-D3
P12.XY100K-D3

P12.XZ100S-D3
P12.XZ100K-D3

Units

End with K: Open loop

  Active axes

XY

XZ



  Motion and Positioning

  Travel range0~120V

80

80

µm/axis±20%

  Travel range0~150V

100

100

µm/axis±20%

  Integrated sensor

SGS/-

SGS/-



  Aperture

Ø35Ø25 optional

Ø35Ø25 optional

mm

  Resolution

7/4

7/4

nmtyp.

  Closed-loop linearity

0.12/-

0.12/-

%F.S.

  Repeatability

0.08/-

0.08/-

%F.S.

  Pitch/Yaw/Roll

<10

<10

µrad

  Mechanical properties

  Push/pull force capacity in motion direction

25/8

25/8

N

  Stiffness in motion direction

0.25

0.25

N/µm±20%

  Unloaded resonant frequency

0.2

0.2

kHz±20%

  Unloaded step time

15

0.8

ms±20%

  Unloaded operating frequency*

  10% travel

100

>100

Hz±20%

  100% travel

9

>9

   Load capacity

0.6

0.6

Kg

  Drive properties

  Electrical capacitance

1.8

1.8

μF/axis±20%

  Miscellaneous

  Operating temperature range**

-20~80

-20~80

°C

  Material

Steel, Aluminum

Steel, Aluminum



  DimensionsL×W×H

70×70×24

70×70×24

mm

  Mass

200

200

g±5%

  Cable length

1.5

1.5

m±10mm

  Sensor/voltage connection***

LEMO

LEMO

*If this operating frequency is very close to or exceeds the resonant frequency, it is recommended to use it much less than the resonant frequency. If it is necessary to work at this frequency, the input voltage must be small enough, and it must be gradually debugged from the minimum signal.

**Custom ultralow temperature and ultrahigh vacuum versions are available.

***Custom connector is available.

Note: The parallelism of the moving platform is about 20 μm, and the roughness is about 1.6 to 3.2. Please contact the sales engineer for confirmation before purchase.

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime. Technical data are measured by CoreMorrow E00/E01 series piezo controller.

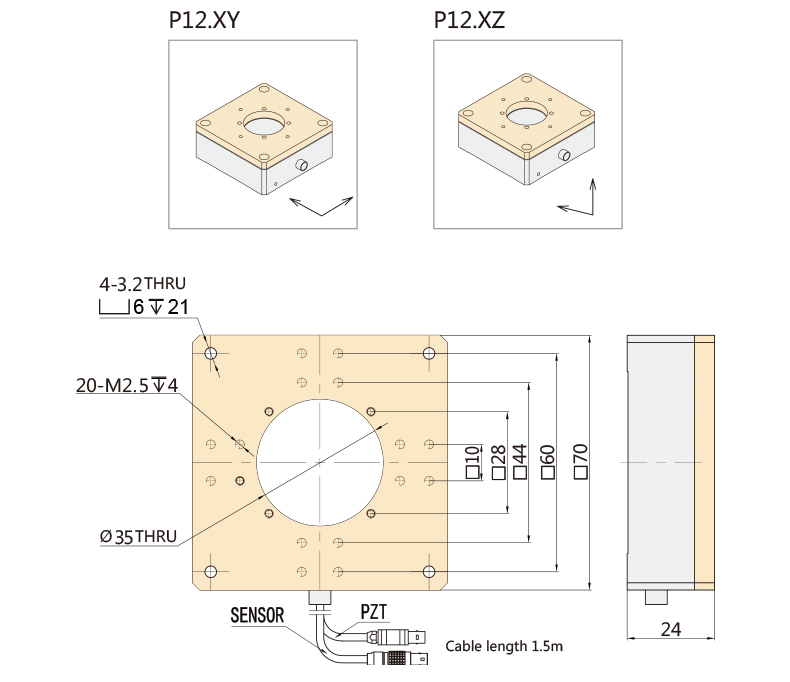

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
