Piezo nanopositioning stage with aperture is based on piezoelectric actuator, it can move in X-axis, Z-axis, XY-axis, XZ-axis,XYZ-axis. Its structure is divided into piezo direct drive and mechanism amplified structure.
Under the same driving voltage and same piezo actuators, the displacement of the piezo stage adopting amplified mechanism is several to tens of times that of that adopting direct drive structure; The direct-drive piezo stage has faster response than that of the amplified piezo stage.
CoreMorrow piezo stage with aperture feartures up to 1000μm travel range, nanometer resolution and millisecond response time. It plays a vital role in the field of precision positioning and has a wide range of applications, such as microscopic scanning, optical path adjustment, nanomanipulation technology, CCD image processing, laser interference, nanolithography, biotechnology, optical communication, nanometer measurement, Micromanipulation, nanoimprinting, etc.
The following is detailed introduction of the XYZ-axis piezo nanopositioning stage from CoreMorrow, please click for details.
Please refer to the selection guide for model selection.
XD106 Cryogenic, Vacuum, Non-Magnetic Piezo Stage
P15.XYZ300S/K-C1 Piezo Nanopostioning Scanners
P12B.XYZ100 Low Temperature Vacuum XYZ Piezo Stage
P79.XYZ50 Piezo Microscope Scanner
P12A.XY200Z100 Piezo Nanopositioning Scanners
P12.XY500Z800S/K Piezoelectric Scanning Stage
P12A.XYZ Piezo Scanners, 100µm, Aperture45×45mm
P15.XYZ Piezo Scanners, 300µm, Aperture 66×66mm

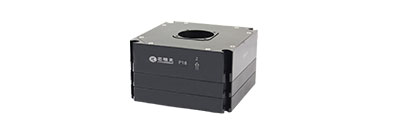

P18.XYZ Piezo Scanners, 200µm, ApertureΦ35mm
P12.XYZ Piezo Scanners, 100μm, With Ø25 or Ø35 aperture
A total of 1pages of10records
