P79.XYZ50 Piezo Microscope ScannerCurrent Location:Product Homepage >> XYZ Piezo Nanopositioner>>P79.XYZ50 Piezo Microscope Scanner
  • Introduction
  • Feedback

P79 series piezoelectric Z microscope scanner is a Z-axis micro-motion platform, mainly used for supporting macro-motion XY-axis micro-scanning stages and piezoelectric motor platforms on the market. P79 platform can perform fast Z-axis focus adjustments with milliseconds step time.

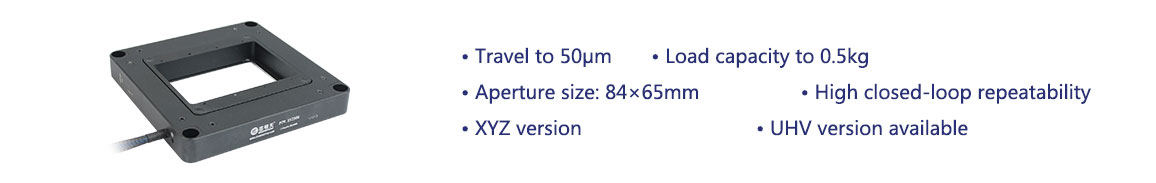

Characteristics


 Travel to 50μm

 Load capacity to 0.5kg

 Aperture size: 84×65mm

 High closed-loop repeatability

 XYZ version
 UHV version available



Applications


 Fluorescence/confocal microscopy

 3D imaging

 Biotechnology

 Autofocus system

  Sample detection





    Technical Data

Type

P79.XYZ50S
P79.XYZ50K

Units

Active axes

X、Y、Z



Drive control

3 driving channels 3 sensing channels



Travel range(0~120V)

40/axis

μm±20%

Max.travel range(0~150V)

50/axis

μm±20%

Sensor

SGS/-



Aperture

84×65

mm

Resolution

1.5/0.5

nm

Linearity

0.1/-

%F.S.

Repeatability

0.05/-

%F.S.

Picth/yaw/roll

<20

μrad

Push/pull force

25/-

N

Stiffness

0.5

N/μm±20%

Unloaded resonant frequency

X525/Y630/Z490

Hz±20%

Unloaded step time

30/6

ms±20%

Load capacity

Horizontal

0.5

kg

Vertical
0.05
Inverted
0.1

El. capacitance

3.2/axis

μF±20%

Material

Steel, A



Mass

720

g±5%

Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; For high-reliability and long-term use, the recommended driving voltage is 0~120V.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

    Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
