Piezo nanopositioning stage with aperture is based on piezoelectric actuator, it can move in X-axis, Z-axis, XY-axis, XZ-axis,XYZ-axis. Its structure is divided into piezo direct drive and mechanism amplified structure.
Under the same driving voltage and same piezo actuators, the displacement of the piezo stage adopting amplified mechanism is several to tens of times that of that adopting direct drive structure; The direct-drive piezo stage has faster response than that of the amplified piezo stage.
CoreMorrow piezo stage with aperture feartures up to 1000μm travel range, nanometer resolution and millisecond response time. It plays a vital role in the field of precision positioning and has a wide range of applications, such as microscopic scanning, optical path adjustment, nanomanipulation technology, CCD image processing, laser interference, nanolithography, biotechnology, optical communication, nanometer measurement, Micromanipulation, nanoimprinting, etc.
The following is detailed introduction of the XY-axis or XZ-axis piezo nanopositioning stage with aperture from CoreMorrow, please click for details.
Please refer to the selection guide for model selection.

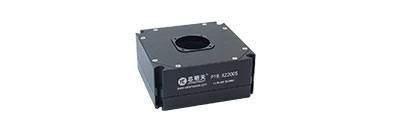

P18.XZ200 Piezo Scanners
XD604 Large Load XZ Piezo Nanopositioning Stage
P66.XY60S P66.XY60K Piezo Nanopositioning Stage
P13.XY Piezo Stage, XY Direction, Stroke to 43µm
P66.XZ Piezo Stage, XZDirection, Stroke to 30µm
P63.XY Piezo Stage, XY Direction, Stroke to 6.8 µm
P11.XZ Piezo Stage, XZDirection, Stroke to 100 µm
P11.XY Piezo Stage, XYDirection, Stroke to 100 µm
P66.XY30 Piezo Stage, XYDirection, Stroke to 30 µm
P13.XY Piezo Stage, XYDirection, Stroke to 37.5 µm
A total of 1pages of10records
