P11.XY is small-volume XY axes piezo nanopositioning stage. It adopts a no-friction flexible hinge guiding mechanism and amplified driving mechanism to ensure 100μm displacement. Closed-loop version could achieve positioning accuracy up to nano-scale. It has excellent control precision, the resolution and stability could reach nanometer level, stabilization time is only milliseconds, the stage is non-magnetic material, and is not affected by the magnetic field in operating.


Characteristics


 XY-axes

 Displacement to 100μm

 Small size

 Quick response

 Nano scale accuracy

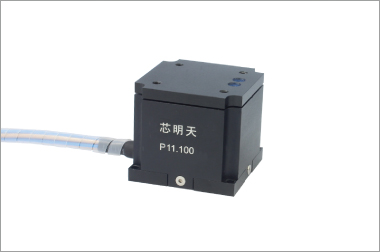

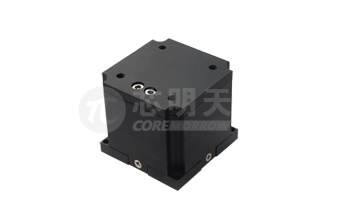

Appearance

Moving-part

Amplified-driving

Quick Response Time, Large Stroke

P11 adopts amplified mechanism and built-in high reliability piezo actuator, which could realize precise motion of 100μm. There are open-loop and closed-loop versions. Closed-loop use high-precision sensors to detect and feedback the position in real time. CoreMorrow E00/E01, E52, E53 and other closed-loop piezo controllers could be configured. P11 has very fast response time, and the step time could be up to 0.8ms with E52 piezo controller.

Sensor

Application Case - AFM


Applications


 Nanopositioning

 Quality assurance test

 Biotechnology

 Micromachining / precision control


P11 series


P11.X

P11.Z

P11.XY

P11.XZ

P11.XYZ

    Technical Data

Models

S-Closed loop
K-Open loop

P11.XY100S

P11.XY100K

Units

Active axes

X,Y



Drive control

2 driving channels 2 sensing channels



Travel range(0~120V)

80/axis

μm±10%

Max.travel range(0~150V)

100/axis

μm±10%

Integrated sensor

SGS/-



Closed/open loop
resolution

3/1

nm

Closed-loop linearity

0.1/-

%F.S.

Repeatability

0.03/-

%F.S.

Pitch/Yaw/Roll

<10

μrad

Push/pull force capacity

25/10

N

Stiffness

X0.25/Y0.3

N/μm±20%

Unloaded resonant
frequency

X0.2/Y0.3

kHz±20%

Closed / open-loop
unloaded Step time

15/0.8

ms±20%

Closed-loop operating frequency(-3dB)

50(unloaded)

Hz±20%

Load capacity

Horizontal

0.7

kg

Vertical
0.03
Inverted
0.7

Electrical capacitance

1.8/axis

μF±20%

Material

Steel, Aluminum



Mass

170

g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

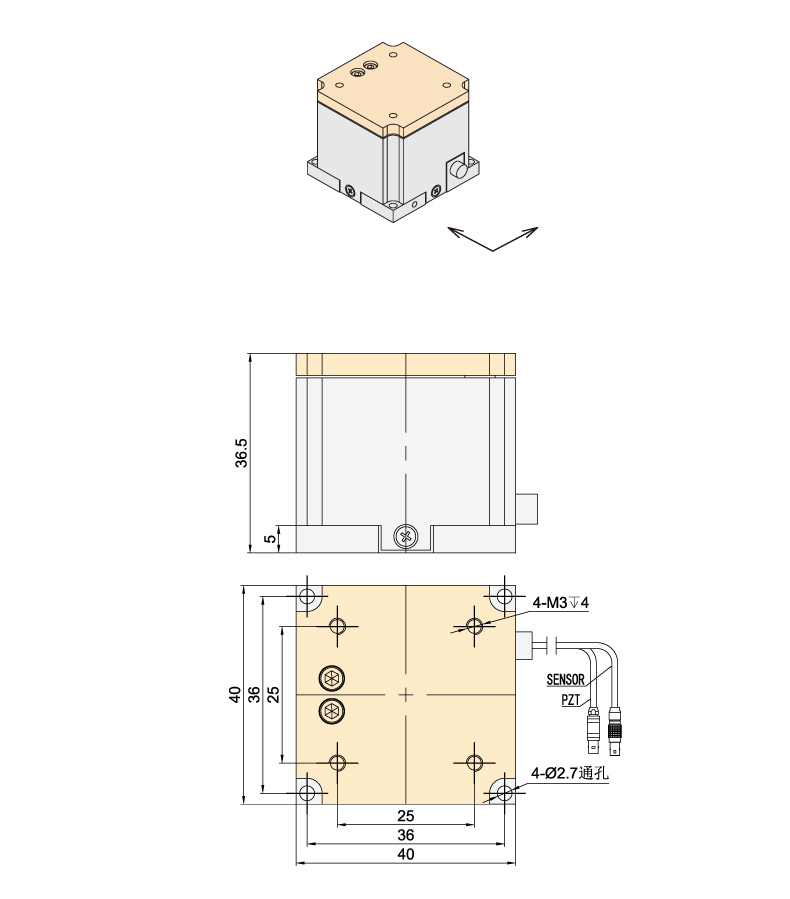

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF

Step

Specs Sheet
Manual
     3D diagram presentation

推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
