E70.C3K-H E70.D3S-H Digital & Analog Piezo Controller, 3 ChannelsCurrent Location:Product Homepage >> Integrated Piezo Controller>>E70.C3K-H E70.D3S-H Digital & Analog Piezo Controller, 3 Channels
  • Introduction
  • Feedback

E70 series piezo controller is a 3-channel piezoelectric ceramic controller with small size, high power, low power consumption, high bandwidth and low ripple noise. The controller uses a dedicated operational amplifier circuit to ensure high-voltage and high-current output capability. By optimizing the sensing servo module, the accuracy and stability of control are improved. The reliable anti-interference design ensures the high-frequency response of the controller.


Characteristics


 Analog and digital control

 3 channels

 Small size, high output power

 Low static power consumption

 Extremly low ripple

 High amplifier bandwidth

 Excellent frequency response performance

 Stabile PI regulation and control

 DC24V power supply

 USB/RS-232/RS-422 communication interface


Appearance

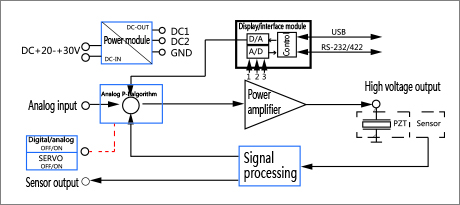

Driving Principle

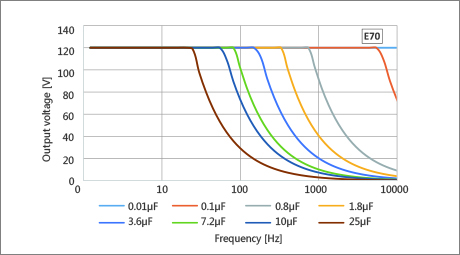

Frequency, Output Voltage and Load Curves

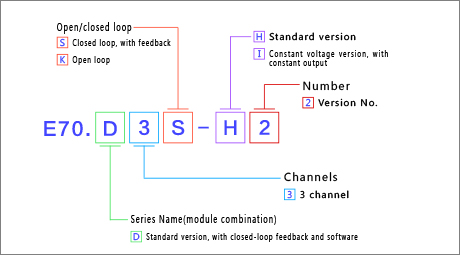

Naming Rules

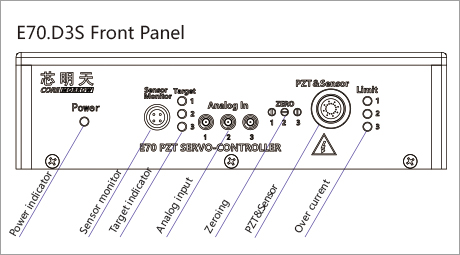

Panel Introduction

Panel Introduction

    Technical data

Models

E70.C3K

E70.D3S

Functions

Digital and analog piezo controller

Digital and analog piezo controller

Drive

Channels

3

3

Analog input(V)

-1.67~10
(±10V for constant voltage version)

-1.67~10
(±10V for constant voltage version)

Output voltage(V)

-20~120(Optional -20~100/150 and one
constant voltage)

-20~120(Optional -20~100/150 and one
constant voltage)

Input power(W)

56

56

Peak current(A)

1.1/channel

1.1/channel

Peak current(A)

70/channel

70/channel

Bandwidth(Hz)

10k/channel

10k/channel

Bandwidth, 1/10(Hz)

10k

10k

Bandwidth(-3DB)(Hz)

37k

37k

Bandwidth,1/10(-3DB)(Hz)

54k

54k

Ripple(mV)

5/channel(2.2μF)

5/channel(2.2μF)

PZT and sensor connecto

ECG.2B.312.CLV

ECG.2B.312.CLV

Control input connector

SMB

SMB

Sensor

Sensor type

-

SGS

Sensor output voltage(V)

-

0~10(±10V for
constant voltage
version)

Servo

-

P.I+Low pass+Notch filter

Sensor output connector

-

EPG.0B.304.HLN

Sensor output ripple(mV)

-

10

Interface

 Communication

RS-232/422(D-SUB 9), USB(TYPEC-female seat)

 Baud rate

9600, 38400, 57600, 115200

9600, 38400, 57600, 115200

Software Secondary development baud rate

9600, 19200, 38400, 57600, 76800, 115200, 128000, 230400, 256000

9600, 19200, 38400, 57600, 76800, 115200, 128000, 230400, 256000

Processor

ARM 32 Bit

ARM 32 Bit

D/A converter

16bit±10V

16bit±10V

A/D converter

16bit±10V

16bit±10V

Software function

Output voltage and displacement, waveform control, setting parameters.

Output voltage and displacement, waveform control, setting parameters.

Waveform

Programmable waveform, standard waveform

Programmable waveform, standard waveform

Secondary development

VC++, Matlab, LabView, DLL dynamic link library functions, etc.,

VC++, Matlab, LabView, DLL dynamic link library functions, etc.,

Others

Operating temperature()

0~50

0~50

Overcurrent protection

Yes

Yes

Static power(W)

11

11

Heat dissipation

 Fan

 Fan

Size(mm)

168.5×134×45.5

168.5×134×45.5

Mass(kg)

1.13

1.13

Power supply

24V DC3A

24V DC3A

Power interface

DC-022B (Ø2.5)

DC-022B (Ø2.5)

Control mode

Analog/digital signal control

Analog/digital signal control

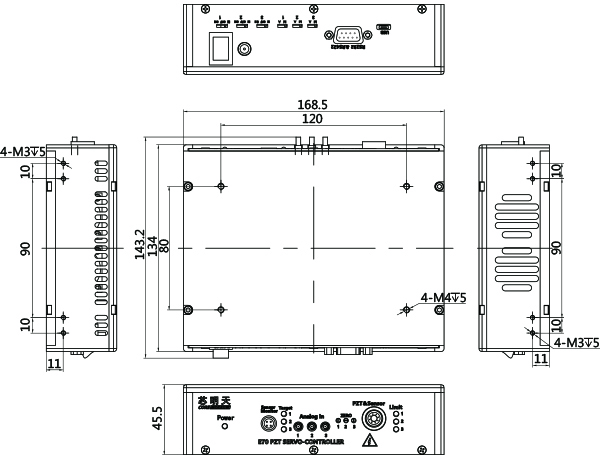

    Drawings(Click on the picture to enlarge it)
