P11.XZ400 is a piezo nanopositioning stage moving in X and Z, which adopts a frictionless flexible hinge guide mechanism. Mechanism amplification driving principle and built-in high-performance piezo material make it achieve 430μm/axis displacement. The closed-loop version of the full bridge design avoids temperature drift significantly and ensures nanometer level positioning accuracy.

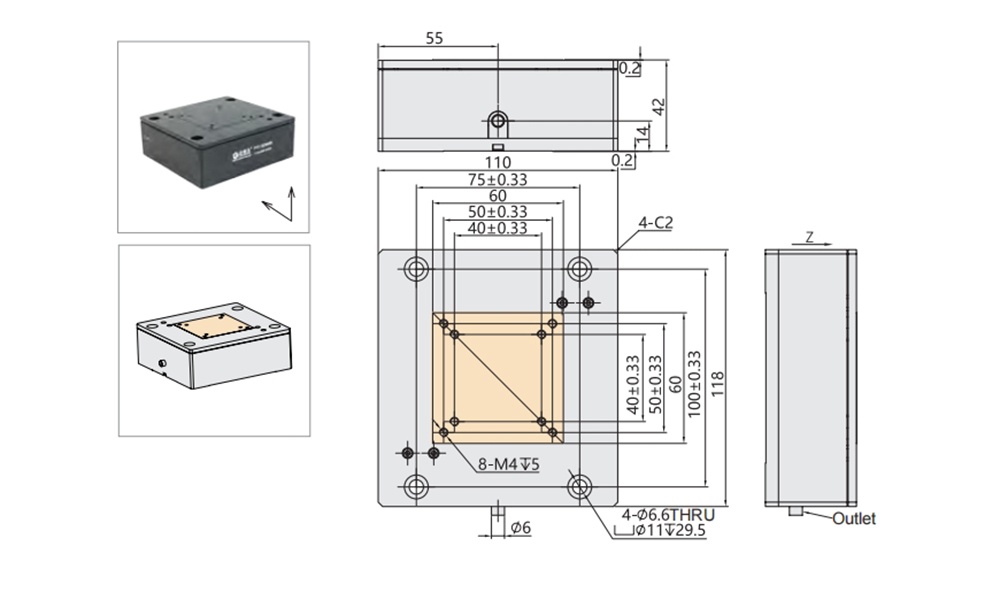

Characteristics
|
|
|
|
|
Typical Applications
|
|
|
|
|
| Technical Data | ||||
|
Type |
S-Closed loop
K-Open loop
|
P11.XY400S |
P11.XY400K |
Units |
|
Active axes |
X、Z |
X、Z |
|
|
|
Drive control |
2 driving channels 2 sensing channels |
2 driving channels |
|
|
|
Nominal travel range(0~120V) |
345/axis |
345/axis |
μm±10% |
|
|
Max. travel range(0~150V) |
430/axis |
430/axis |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
15 | 5 |
nm |
|
|
Linearity |
0.14/0.07 |
- |
%F.S. |
|
|
Repeatability |
0.025 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
X155/Z135 |
X155/Z135 |
Hz±20% |
|
| Resonant frequency@600g |
85 |
85 |
Hz±20% |
|
|
Step time |
50@600g |
15 |
ms±20% |
|
|
Load capacity |
Horizontal |
600 |
600 |
g |
| Vertical | 20 | 20 | ||
| Inverted | 20 | 20 | ||
|
El.capacitance |
20.4/axis |
20.4/axis |
μF±20% |
|
|
Operating temperature |
-20~65 |
-20~65 |
℃ |
|
|
Material |
Stainless steel, aluminum alloy |
|
||
|
Mass |
1045 |
1045 |
g±5% |
|
|
Cable length |
2 |
2 |
m±10mm |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
