P66.XZ piezo nano-positioning stage uses piezoelectric stacks as driving source and using direct drive mechanism. It is nano-positioning system combining piezoelectric and flexible hinges. Precision, and optional high-precision sensors for closed-loop precise positioning control. This product is ideal for positioning applications such as optical path length correction in interference, sample positioning in microscopy or scanning applications, and more.

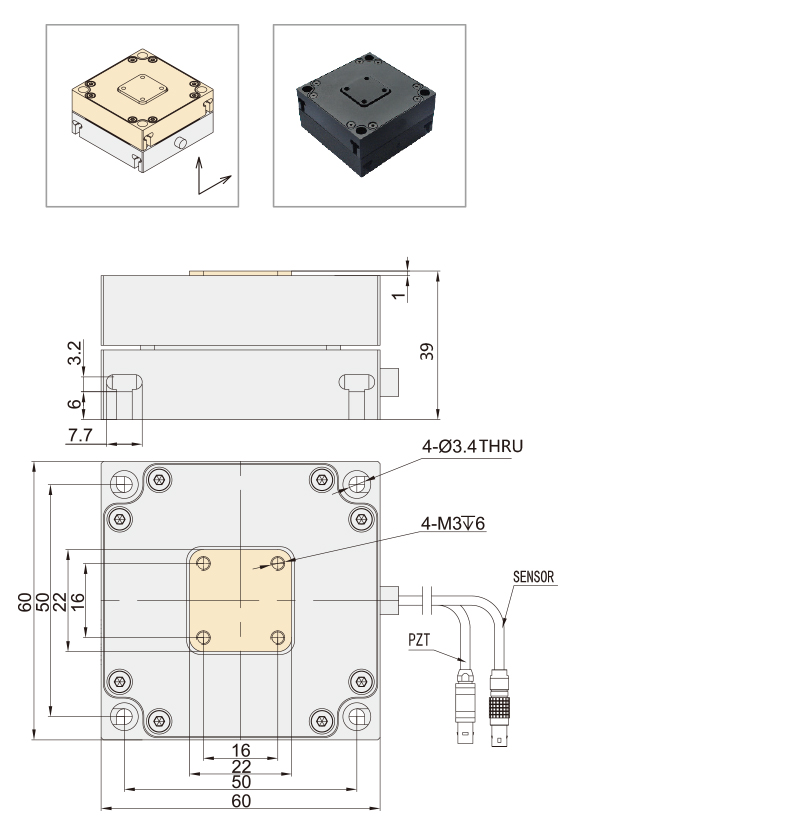

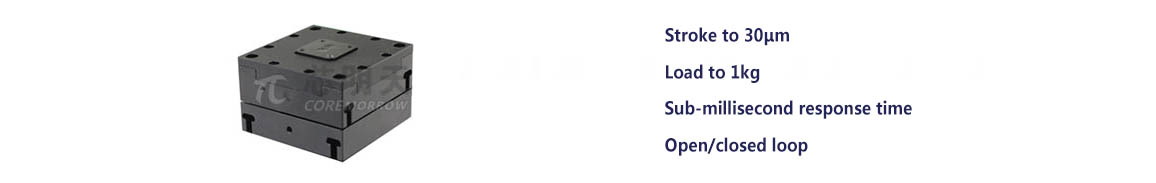

Characteristics
|
|
|
|
|
| Technical data | |||
|
Models |
S-Closed loop K-Open loop |
P66.XZ30S P66.XZ30K |
Untis |
|
Active axes |
XZ |
|
|
|
Drive control |
2 driving channels 2 sensing channels |
|
|
|
Travel range（0~120V） |
24/axis |
μm±10% |
|
|
Travel range（0~150V） |
30/axis |
μm±10% |
|
|
Integrated sensor |
SGS/- |
|
|
|
Closed/open loop resolution |
1/0.5 |
nm |
|
|
Closed-loop linearity |
0.1/- |
%F.S. |
|
|
Repeatability |
0.08/- |
%F.S. |
|
|
Pitch/Yaw/Roll |
<15 |
µrad |
|
|
Push/pull force capacity |
30/10 |
N |
|
|
Stiffness in motion direction |
1.1 |
N/μm±20% |
|
|
Unloaded resonant frequency |
X1.5/Z0.8 |
kHz±20% |
|
|
Closed/open-loop unloaded Step time |
20/1 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
- |
Hz±20% |
|
|
Load capacity |
1 |
kg |
|
|
Electrical capacitance |
3.6/axis |
μF±20% |
|
|
Material |
Aluminum |
|
|
|
Mass |
320 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
