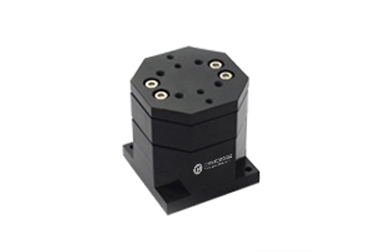

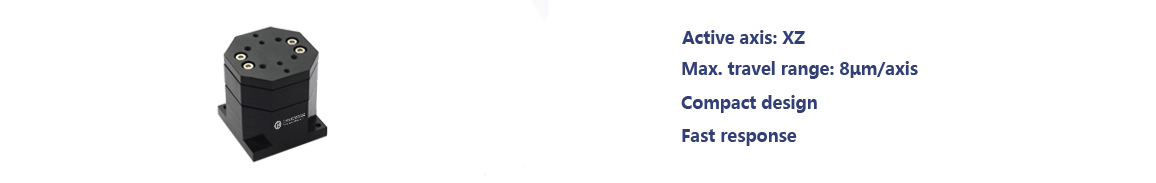

P63.XZ is XZ-axis moving piezoelectric nano-positioning stage. It adopts the design principle of piezoelectric stack direct-drive mechanism and could achieve nano-level resolution and positioning accuracy, has very high reliability, and plays an important role in the field of precision positioning.
Characteristics
|
|
|
|
|
|
Appearance
|
Moving-part
|
Direct-driving
|
|
Small Size Quick Response

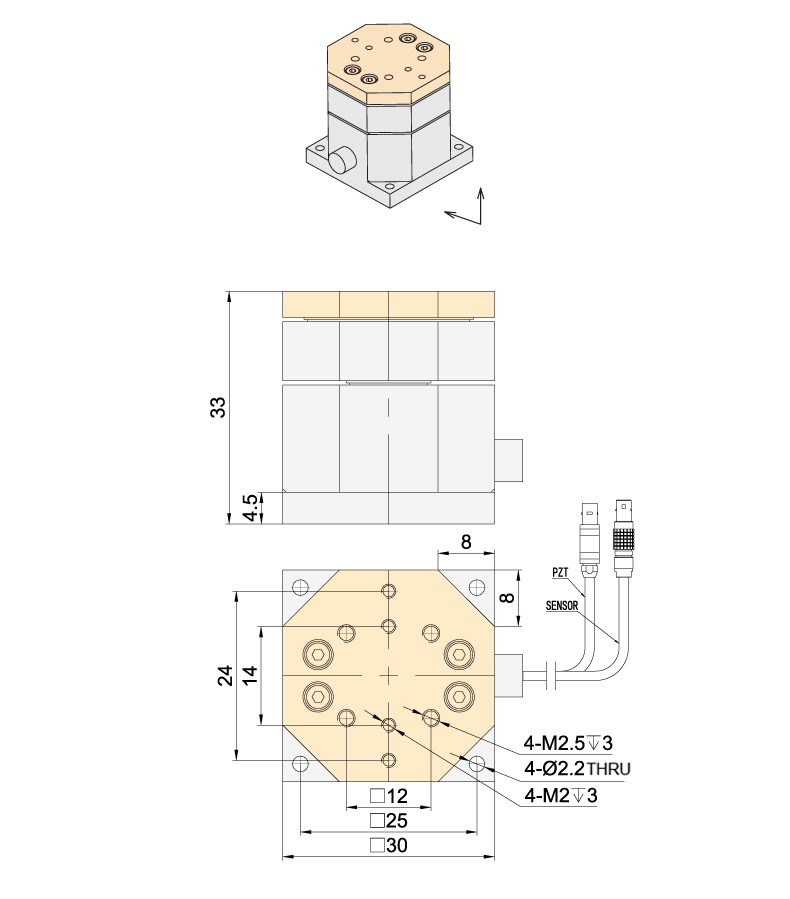

P63 piezoelectric nano positioning stage is characterized by high precision and small size. The size of the P63.X is only 30×30×21mm (XYZ axis is 30×30×42mm), which is very easy to integrate into the scanning instrument. |
Sensor
|
Application case P63.XYZ has been applied to the cutting force test based on SEM online nano cutting stage.
|
Applications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Technical Data | ||||
|
Models |
S-Closed loop
|
P63.XZ7S |
P63.XZ7K |
Units |
|
Active axes |
X,Z |
X,Z |
|
|
|
Drive control |
2 driving channels 2 sensing channels |
2 driving channels |
|
|
|
Travel range(0~120V) |
5.5/axis |
5.5/axis |
μm±10% |
|
|
Max.travel range(0~150V) |
6.8/axis |
6.8/axis |
μm±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
|
Closed/open loop resolution |
0.2 |
0.1 |
nm |
|
|
Closed-loop linearity |
0.4 |
- |
%F.S. |
|
|
Repeatability |
0.2 |
- |
%F.S. |
|
|
Pitch/Yaw/Roll |
<10 |
<10 |
μrad |
|
|
Push/pull force capacity |
9/2 |
9/2 |
N |
|
|
Stiffness |
X1.2/Z1.5 |
X1.2/Z1.5 |
N/μm±20% |
|
|
Unloaded resonant frequency |
X1.5/Z1.6 |
X1.5/Z1.6 |
kHz±20% |
|
|
Closed/open-loop unloaded |
1.5 |
0.3 |
ms±20% |
|
|
Load capacity |
Horizontal |
0.5 |
0.5 |
kg |
|
Vertical |
0.05* | 0.05* | ||
|
Inverted |
0.05 | 0.05 | ||
|
Electrical capacitance |
0.8/axis |
0.8/axis |
μF±20% |
|
|
Material |
AI |
AI |
|
|
|
Mass |
120 |
120 |
g±5% |
|
Note:When installed vertically, the load capacity depends on the specific installation direction.
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
