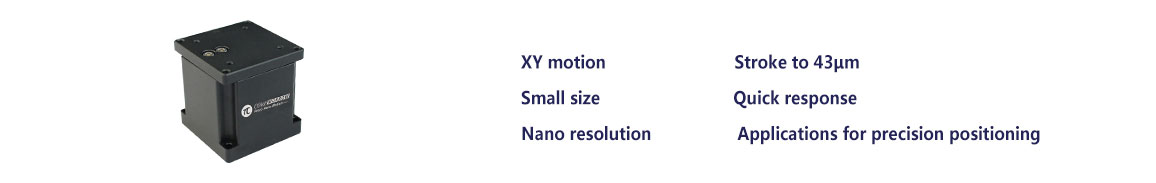

P13.XY Piezo Stage, XY Direction, Stroke to 43µmCurrent Location：Product Homepage >> XY/XZ Nanopositioner>>P13.XY Piezo Stage, XY Direction, Stroke to 43µm

Introduction
Controllers
Feedback

Characteristics

XY axes

Max stroke to 43μm

Small size

Quick response time

Amplified-driving

Sensor

Closed Loop Stabilization Time

Settling time of the P13.XY closed loop version full stroke is ~30ms.

Ultra-Small Size, High Resolution

Solid-state hinge parallelogram design principle, it has very high resolution and good linearity of motion.
P13 could be easily mounted to other positioning systems and could be equipped with sensing and measuring devices (strain gauge sensors) to eliminate the hysteresis and creep of piezoelectric ceramics.
P13 Piezo Stage is ideal for dynamic and scanning applications.

Applications

2D/3D scanning	Light path adjustment	Semiconductor	Micromanipulation
AFM	Nanopositioning

Technical data
Models	S-Closed loop K-Open loop	P13.XY50S P13.XY50K	Units
Active axes		XY
Drive control		2 driving channels 2 sensing channels
Travel range(0~120V)		34/axis	μm±10%
Max.travel range(0~150V)		43/axis	μm±10%
Integrated sensor		SGS/-
Closed/open loop resolution		1.5/0.5	nm
Closed-loop linearity		0.2/-	%F.S.
Repeatability		0.1/-	%F.S.
Unloaded resonant frequency		X0.55/Y0.52	kHz±20%
Closed/open-loop unloaded Step time		30/3	ms±20%
Load capacity	Horizontal	0.8	kg
	Vertical	0.02
	Inverted	0.5
Electrical capacitance		0.8/axis	μF±20%
Material		Steel, Aluminum,Low temperature magnetic intensity optional
Mass		120	g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.

Mounting Method	Horizontal Mounting	Vertical Mounting	Inverted Mounting
Definition	Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane. PS: Default direction for carrying capacity in the parameter table	Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity	Place the PZT platform horizontally, but the moving surface is located below the PZT platform
Diagram
Note	When the mounting method is selected as vertical mounting, pay attention to the outlet port

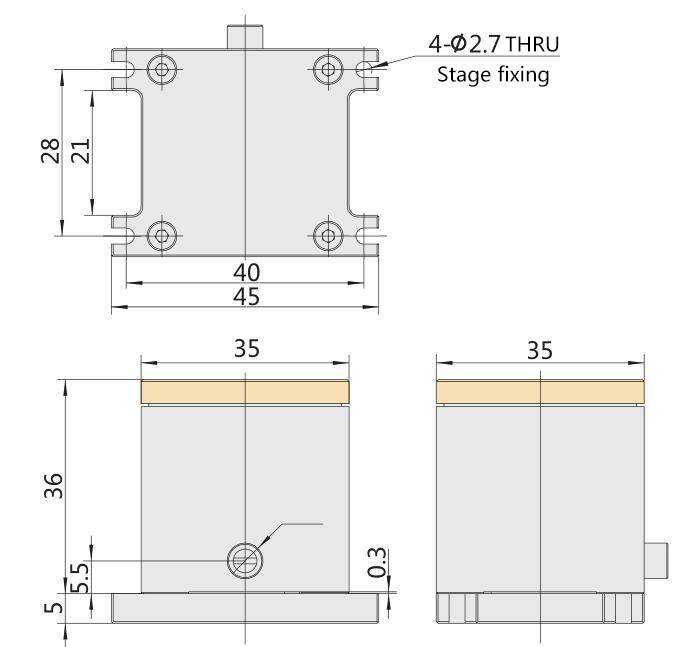

Drawings（Click on the picture to enlarge it）

Downloads
Auto CAD PDF	P13.XY50
Step	P13.XY50
Specs Sheet
Manual
