P12A.XY200Z100 Piezo Nanopositioning ScannersCurrent Location:Product Homepage >> XYZ Piezo Nanopositioner>>P12A.XY200Z100 Piezo Nanopositioning Scanners
  • Introduction
  • Feedback

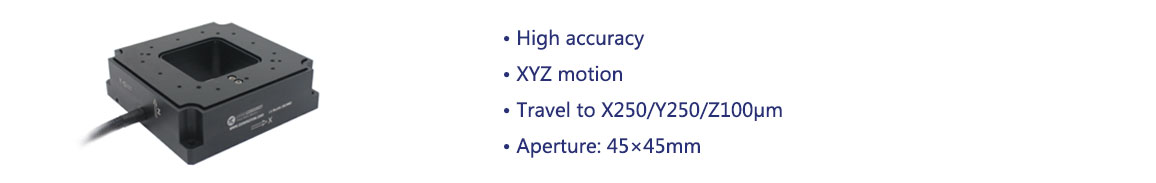

Characteristics


 High accuracy

 XYZ motion

 Travel to X250/Y250/Z100μm

 Aperture: 45×45mm

 Vacuum version available




Displacement vs Voltage Curve

Loaded Step Time

    Technical Data

Type

P12A.XY200Z100S

P12A.XY200Z100K

Units

Active axes

X、Y、Z

X、Y、Z

Drive control

3 driving channels 3 sensing channels

3 driving channels 3 sensing channels

Travel range (0~120V)

X200/Y200/Z80

X200/Y200/Z80

μm±10%

Max.travel range (0~150V)

X250/Y250/Z100

X250/Y250/Z100

μm±10%

Sensor

SGS

-

Resolution

XY7Z3

XY3/Z1

nm

Linearity

X0.1/Y0.1/Z0.2

-

%F.S.

Repeatability

X0.05/Y0.05/Z0.1

-

%F.S.

Unloaded resonant frequency

X240/Y240/Z150

X240/Y240/Z150

Hz±20%

Load capacity

Horizontal

0.5

0.5

kg

Vertical
0.02 0.02
Inverted
0.05 0.05

El. capacitance

X7.2/Y7.2/Z1.8

X7.2/Y7.2/Z1.8

μF±20%

Material

Steel, Aluminum

Steel, Aluminum


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

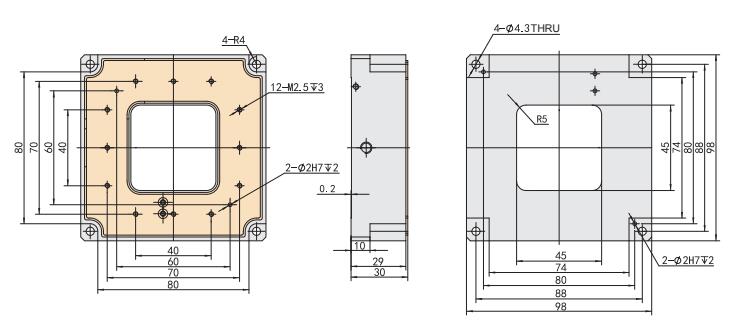

    Drawings(Click on the picture to enlarge it)
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
