XD107 Piezo Nanopositioning Scanner
  • Introduction
  • Feedback

XD107 piezo scanner moves in XYZ, it has a large square aperture, and is ideal for sample microscopy imaging applications.


Characteristics


 XYZ motion

 Travel up to 100μm

 Load capacity to 0.4kg

 Aperture of 50×50mm


Application


 Scanning microscopy

 Mask/wafer positioning

 Interferometry

  Metrology

 Micromanipulation, etc.

 Biotechnology



    Technical Data

Type

XD107.XY100Z80S

XD107.XY100Z80K

Units

Active axes

X Y Z

X Y Z



Drive control

3 driving channels
3 sensing channels

3 driving channels
3 sensing channels


Travel range(0~120V)

XY80/Z64

XY80/Z64

μm±10%

Max.travel(0~150V)

XY100/Z80

XY100/Z80

μm±10%

Sensor

SGS

-



Aperture

50×50

50×50

mm

Size

94×94×24.5

94×94×24.5

mm

Resolution

3

1

nm

Linearity

XY0.2/Z0.1

-

%F.S.

Repeatability

XY0.02/Z0.02

-

%F.S.

Pitch/yaw/roll

≤ 30

≤ 30

μrad

Unloaded resonant frequency

XY220/Z160

XY220/Z160

Hz±20%

Resonant frequency @500g

XY110/Z80

XY110/Z80

Hz±20%

El. capacitance

XY3.6/Z1.8

XY3.6/Z1.8

μF±20%

Load capacity

Horizontal

0.4

0.4

kg

Vertical
0.03 0.03
Inverted
0.04 0.04

Material

Al, Steel

Al, Steel


Mass

420

420

g±5%


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

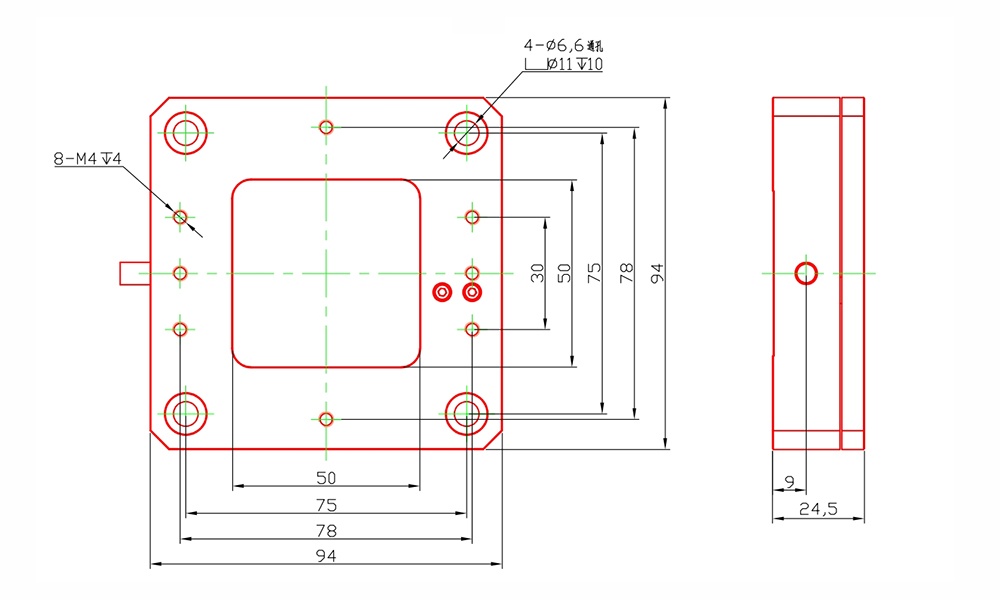

    Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

     3D diagram presentation
