P15.XYZ Piezo Scanners, 300µm, Aperture 66×66mmCurrent Location：Product Homepage >> XYZ Piezo Nanopositioner>>P15.XYZ Piezo Scanners, 300µm, Aperture 66×66mm
  • Introduction
  • Controllers
  • Feedback

P15 is a fast, high-precision scanning and nanopositioning stage with very high straightness. The aperture is 66×66mm, which is ideal for transmitted-light applications such as near field scanning, confocal microscopy and mask positioning. P15 has 300 μm displacement and its internal finite element analysis (FEA) optimized wire-cut flexural hinge structure. FEA gives it the design with the highest possible stiffness and minimizes linear and angular runout


Features


 3 axes

 Stroke to 300μm/axis

 Closed-loop sensor available

 Frictionless, high precision flexible guiding system

 High scanning flatness

 Aperture 66×66mm

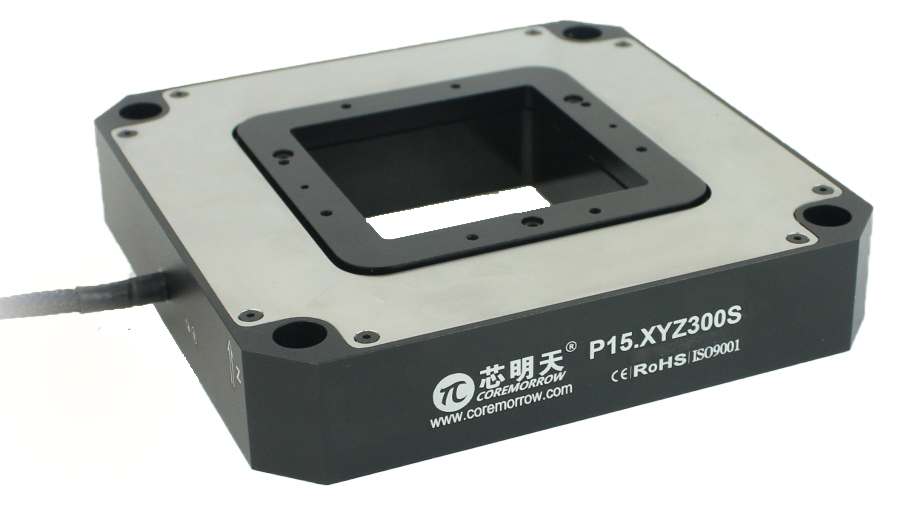

Appearance

Moving-part

Amplified-driving

Closed Loop Sensor

P15 is available with closed-loop feedback sensor that provides higher positioning accuracy and is ideal for high-precision positioning applications.

Freqency VS Load Curve

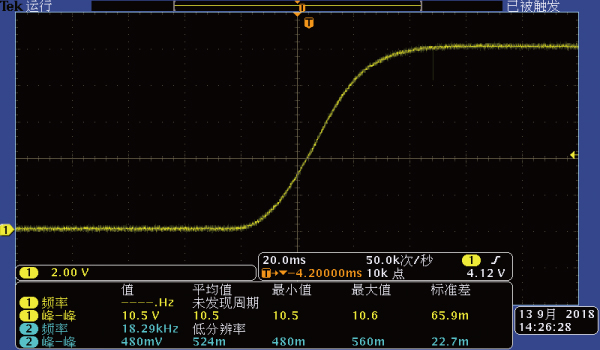

Closed-loop rising curve, full stroke step time 60ms.


Applications


 Scanning microscope

 Mask/wafer positioning

 Interferometry

 Metrology

 Biotechnology

 Micromanipulation

    Technical Data

Type

P15.XY100S-C1

P15.XY100K-C1

P15.XYZ100S-B1

P15.XYZ100K-B1

P15.XYZ100S-B2

P15.XYZ100K-B2

P15.XYZ300S

P15.XYZ300K

P15.XYZ300S-C1

P15.XYZ300K-C1

P15.XYZ300S-C2
P15.XYZ300K-C2

Units

Active axes

X、Y

X、Y、Z

X、Y、Z
 X、Y、Z
 X、Y、Z
 X、Y、Z

Driving channels

2 driving channels
2 sensing channels

3 driving channels
3 sensing channels

4 driving channels
3 sensing channels
 3 driving channels
3 sensing channels
 4 driving channels
3 sensing channels
 4 driving channels
3 sensing channels

Travel(0~120V)

80/axis

100/axis

XY±50
Z100
 240/axis
 ±120/axis
 ±120/axis

μm±10%

Travel(0~150V)

100/axis

120/axis

XY±60
Z120
 300/axis
 ±150/axis
 ±150/axis

μm±10%

Sensor

SGS/-

SGS/-

SGS/-
 SGS/-
 SGS/-
 SGS/-

Aperture

66×66

60×60

60×60
 66×66
 66×66
 66×66

mm

Resolution

3.5/1

3.5/1

3.5/1
 8/2.5
 8/2.5
 10/5

nm

Linearity

0.15/-

0.2/-

0.2/-
 0.2/-
 0.2/-
 0.2/-

%F.S.

Closed loop
repeatability

0.1/-

0.1/-

0.1/-
 0.1/-
 0.15/-
 0.15/-

%F.S.

Pitch/yaw/roll

<30

30

30
 <30
 <150
 <100

μrad

Push/pull force

60/10

100/20

XY150/20
Z100/20
 50/10
 200/10
 200/10

N

Stiffness

0.6

0.8

1.6/1.6/0.8 0.1
 1
 1

N/μm±20%

Unloaded resonant
frequency

200

300/350/400

389/355/400
 140/170/220
 190/145/249
 180/200/200

Hz±20%

Resonant
frequency at loading

45（@6kg）

-

-
 -
 145/110/145
（@300g）
 49/49/69
（@5kg）

Hz±20%

Closed/open-loop
unloaded step time

-

-

-
 60/10
 -
 -

ms±20%

Load capacity

Upright 6/Inverted
6/Lateral 0.5

1

2
 0.5
 3
 5

kg

El. capacitance

10.8/axis

XY7.2/Z14.4

14.4
 XY10.8/Z13.2
 21.6/axis
 21.6/21.6/43

μF±20%

Material

Aluminum

Steel, Aluminum

Steel, Aluminum
 Aluminum
 Steel, Aluminum
 Steel, Aluminum

Mass(no cable)

<1.1

0.7

0.75
 0.83
 -
 -

kg±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term and high-reliable operation. Technical data is measured by CoreMorrow E00/E01 series piezo controller.

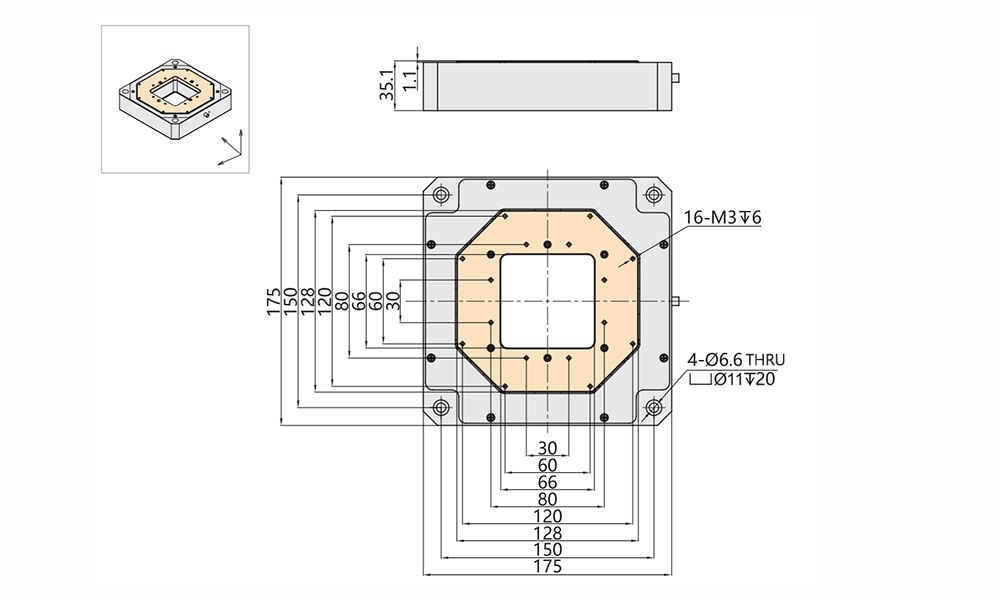

    P15.XY100S/K-C1 Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    P15.XYZ100 Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    P15.XYZ300 Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    P15.XYZ300S/K-C1 Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    P15.XYZ300S/K-C2 Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
     3D diagram presentation
     3D diagram presentation
     三维图演示3D diagram presentation
     3D diagram presentation
    Downloads
Auto CAD PDF

P15.XY100S/K-C1

P15.XYZ100-B1

P15.XYZ100-B2


P15.XYZ300

P15.XYZ300S/K-C1

P15.XYZ300S/K-C2

Step



/
Specs Sheet




Manual
    P15.XYZ300 Motion Video

推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
