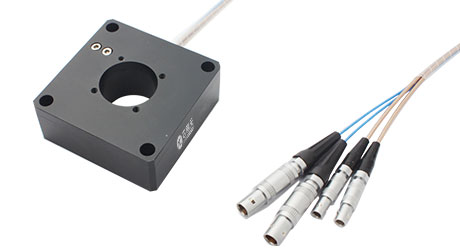

P12.XZ100 is XZ-axes scanning stage. The aperture diameter could be selected as 25mm(35mm is optional), which is suitable for applications such as microscopy. The piezo scanner could realize single-axis displacement of 100μm. Integrated structure makes multi-dimensional motion uncoupled and could be selected in various specifications to meet the needs of different applications.
Features
|
|
|
|
|
|
Appearance
|
P12.XZ moving part
|
Amplified-driving
|
|
1~3 - Axis Scanning Stage P12 piezo nanopositioning stage is a 1~3-axis linear piezo scanning stage, including X, Z, XY, XZ, XYZ motion versions. A variety of specifications and models for choice with optional aperture diameter of 25mm or 35mm. |

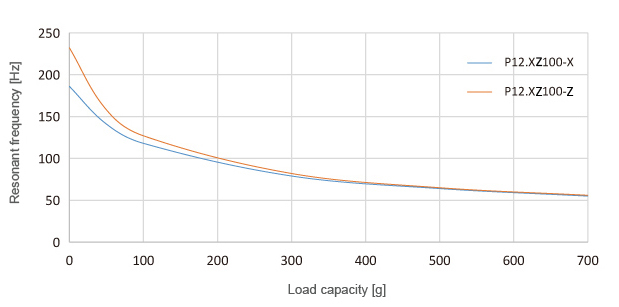

Freqency VS Load Curve
|
Application case-Inverted Piezo Scanner
|

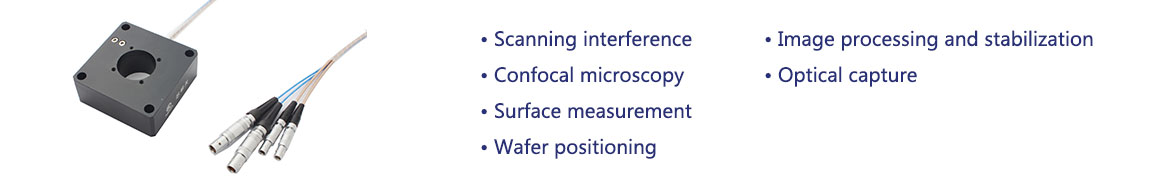

Applications
|
|
|
|
|
|
|
|
|
|
| Technical data | ||||
|
Models |
S-Closed loop |
P12.XZ100S-D |
P12.XZ100K-D |
Units |
|
K-Open loop |
||||
|
Active axes |
X、Z |
X、Z |
|
|
|
Drive control |
2 driving channels 2 sensing channels |
2 driving channels |
|
|
|
Motion and Positioning |
||||
|
Travel range（0~120V） |
80 |
80 |
µm/±10% |
|
|
Max.travel range（0~150V） |
100 |
100 |
µm/±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
|
Aperture |
Ø25/Ø35 |
Ø25/Ø35 |
mm |
|
|
Resolution |
3 |
1 |
nm，typ. |
|
|
Closed-loop linearity |
0.12 |
- |
%F.S. |
|
|
Repeatability |
0.08 |
- |
%F.S. |
|
|
Pitch/Yaw/Roll |
<10 |
<10 |
µrad |
|
|
Mechanical properties |
||||
|
Push/pull force capacity in motion direction |
25/8 |
25/8 |
N |
|
|
Stiffness in motion direction |
0.25 |
0.25 |
N/µm±20% |
|
|
Unloaded resonant frequency |
200 |
200 |
Hz±20% |
|
|
Unloaded step time |
30 |
0.8 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
- |
- |
Hz±20% |
|
|
Load capacity |
Horizontal |
0.6 |
0.6 |
Kg |
|
Vertical |
0.04 | 0.04 | ||
|
Inverted |
0.04 | 0.04 | ||
|
Electrical capacitance |
1.8 |
1.8 |
μF/axis±20% |
|
|
Material |
Steel, Aluminum |
Steel, Aluminum |
|
|
|
Mass |
200 |
200 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, recommended voltage 0~120V for long-term, high-reliability operation. Technical data is measured by CoreMorrow E00/E01 series piezo controller.
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
