P78.Z300 Piezo Scanners,262.5µm,Aperture 64×64mmCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P78.Z300 Piezo Scanners,262.5µm,Aperture 64×64mm
  • Introduction
  • Controllers
  • Feedback

P78 piezo scanner is ideal for applications such as nanoscale alignment and measurement. Closed-loop sensor with bridge configuration can be selected to eliminate temperature drift and ensure the positioning stability in the nanometer range.

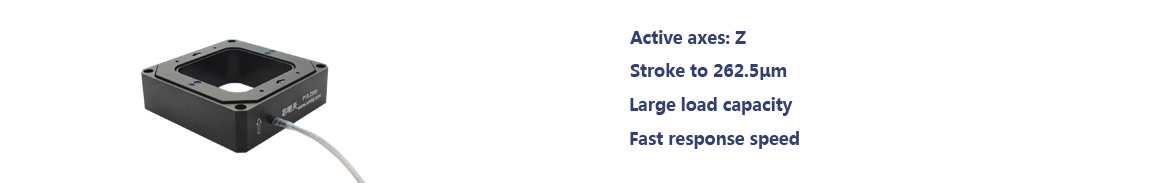

Characteristics


 Z motion

 Travel range to 262.5µm

 Resolution to 2.5nm

 Aperture 64×64mm

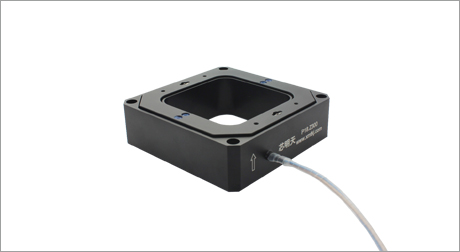

Appearance

Moving Part

Amplified-driving

Long Travel, High Resolution

P78 adopts amplification mechanism to realize stroke of 187.5/262.5μm. Excellent flexible hinge guiding mechanism is optimized by FEA to achieve nanometer resolution and millisecond response time.
Aperture in the center is 64×64mm, which is suitable for applications such as interference and surface inspection.

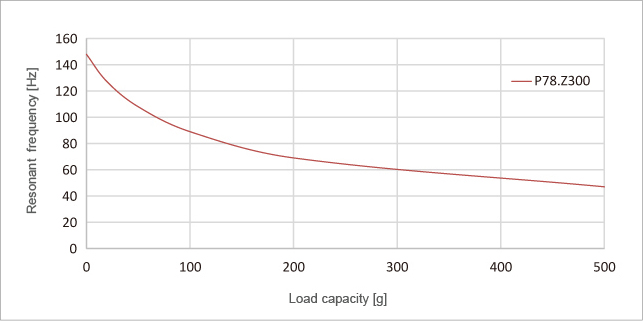

Freqency VS Load Curve


Applications


 Microscopic imaging

 Biotechnology

 Super-resolution microscopy

 3D imaging

 Interferometry

 Measurement techniques

 Autofocus systems


P78 series








P78.Z200

P78.Z300







    Technical data

Models

S-Closed loop

K-open loop

P78.Z300S

P78.Z300K

Units

Active axis

Z



Drive control

1 driving channel

1 sensing channel



Travel range(0 ~120 V)

210

µm±20%

Travel range(0~150 V)

262.5

µm±20%

Sensor type

SGS/-



Aperture size

64×64

mm

Resolution

7/2.5

nm

Linearity

0.15/-

%F.S.

Repeatability

0.1/-

%F.S.

Pitch/yaw/roll

<30



Push/pull force

30/5

N

Stiffness

0.15

N/μm±20%

Unloaded resonant frequency

200

Hz±20%

Unloaded step time

50/6.4

ms

Load capacity

Horizontal

0.5

kg

Vertical
0.01
Inverted
0.1

El.capacitance

14.4

μF±20%

Operating temperature

-20~80

Material

Aluminum



Mass

340

g±5%

Cable length

1.5

m±10mm

Sensor/voltage connector

LEMO

Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

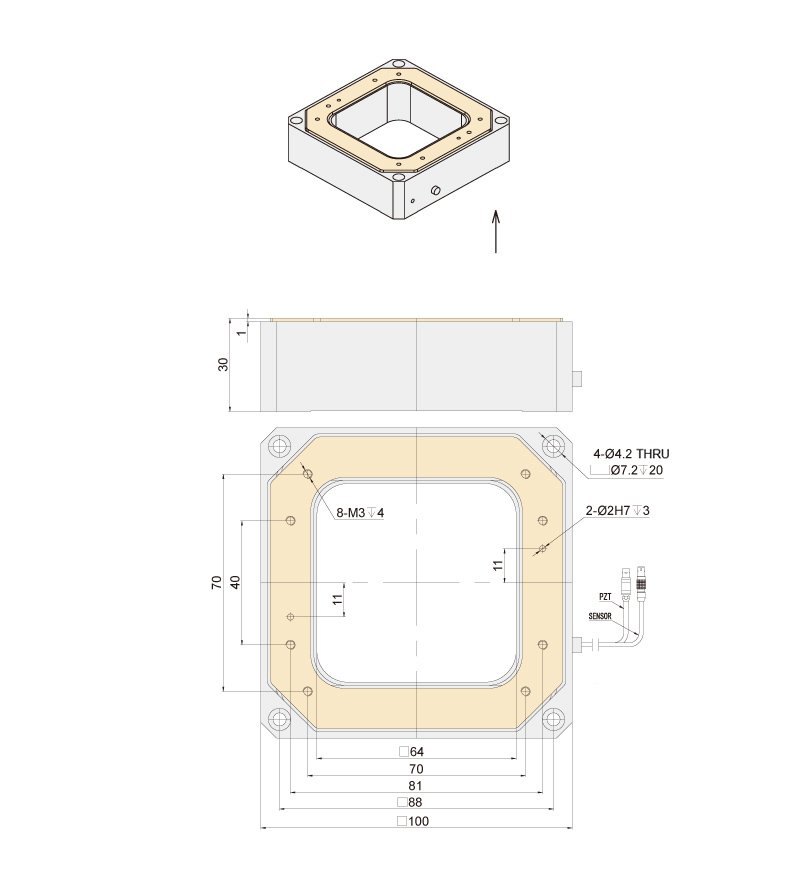

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
     3D diagram presentation

推荐控制器

E01.D3 Piezo Controller

1 channel
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 291mA


E53 Piezo controller

1 channel
Software / Analog input
Open/closed loop
Ave.current: 60mA


E52 Piezo Controller

1 channel
Analog input
Open/closed loop
Ave.current: 300mA
