P12A.XY Piezo Scanners, 100µm, Aperture45×45mmCurrent Location:Product Homepage >> XY Piezo Nanopositioner>>P12A.XY Piezo Scanners, 100µm, Aperture45×45mm
  • Introduction
  • Controllers
  • Feedback

P12A.XY is XY axes piezo scanner with aperture in the center of scanner. The internal frictionless flexible hinge guiding mechanism uses finite element simulation to optimize the structure and has high guiding precision and large stiffness, large load and other characteristics, the scanner could be equipped with high-performance sensors for closed feedback, achieving repeatability positioning accuracy of 0.04% of full stroke.


Features


 Max stroke to 100μm

 Max load to 0.6kg

 Aperture 45×45mm

 Open loop or closed loop


Appearance

Moving-part

Amplified-driving

Small Size Large Displacement

P12A.XY is very compact and can be displaced up to 100μm. Unique parallel kinematic design enables the scanner to achieve high-speed precision motion of XY axes.
The aperture is 45×45mm. High stiffness and excellent linearity make it the first choice for nano-precision positioning applications in the optical and laser fields.

Freqency VS Load Curve

High Positioning Accuracy

P12A is equipped with high-resolution sensor, which detects the position in real time and feeds back to piezo controller. The controller adjusts the voltage correction displacement through the PID algorithm to achieve high-precision positioning.


Applications


 Scanning microscopy

  Confocal microscopy

 Surface measurement

 Semiconductor test


P12A series


P12A.X

P12A.Z

P12A.XY

P12A.XZ

P12A.XYZ

    Technical data

Models

S-Closed loop

K-Open loop

P12A.XY100S

P12A.XY100K

Units

Active axes

XY



Drive control

2 driving channels 2 sensing channels



Travel range(0~120V)

80/axis

μm±10%

Travel range(0~150V)

100/axis

μm±10%

Integrated sensor

SGS/-



Aperture

45×45

mm

Closed/open loop resolution

3/1

nm

Closed-loop linearity

0.1/-

%F.S

Repeatability

0.05/-

%F.S

Pitch/Yaw/Roll

<15

μrad

Push/pull force capacity

25/8

N

Stiffness

X0.25/Y0.3

N/μm±20%

Unloaded resonant frequency

X170/Y200

Hz±20%

Closed/open-loop unloaded Step time

15/0.8

ms±20%

Load capacity

0.6

kg

Electrical capacitance

3.6/axis

μF±20%

Material

Steel, Aluminum



Mass

290

g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime. Technical data are measured by CoreMorrow E00/E01 series piezo controller.

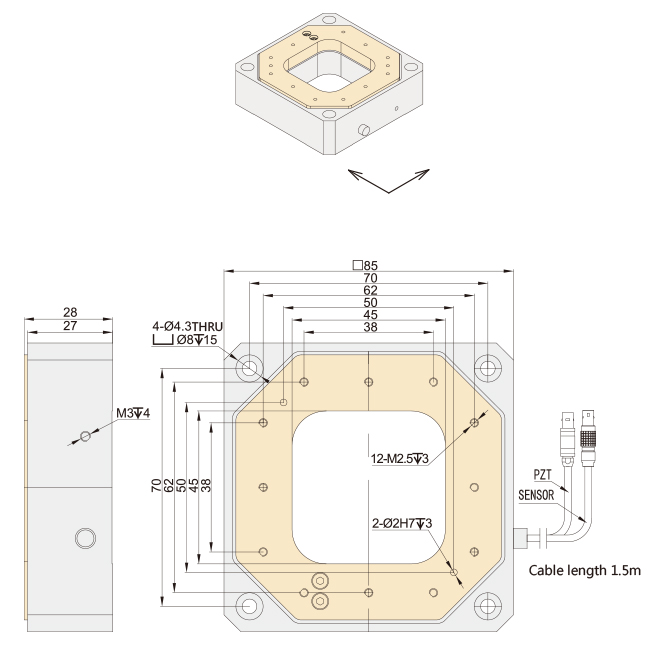

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
     3D diagram presentation

推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
