P77A.K65 Piezo Phase Shifter,20μm, ApertureΦ65mmCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P77A.K65 Piezo Phase Shifter,20μm, ApertureΦ65mm
  • Introduction
  • Controllers
  • Feedback

    P77A.K65 series of piezo phase shifters are designed for optical detection phase shift applications with a travel range of up to 20μm and a load capacity of up to 5kg, making them ideal for optical inspection equipment for lenses.


Features


 Travel range:0~20µm

 Aperture diameter:Φ65mm

 Load capacity:5kg

 Size:Φ105×35mm

    Technical data

Type

P77A.S65

P77A.K65

Units

Active axes

Z

Z



Travel range(0~120V)

13.5

13.5

μm±10%

Max.travel range(0~150V)

17

17

μm±10%

Aperture

Φ65

Φ65

mm

Length/OD

Φ105

Φ105

mm

Height

35

35

mm

Resolution

0.5

0.2

nm

Push/pull force
100/30 100/30 N

Load capacity

Horizontal
5

5

kg

Vertical
2 2
Inverted
3 3

Electrical capacitance

3.6

3.6

μF±20%

Mass

670

670

g±5%

Operating temperature

-20~80

-20~80

Control

2channel

2channel



Connector

LEMO

LEMO



Cable length

1.5

1.5

m±10mm

Material
Al, Steel
Al, Steel

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

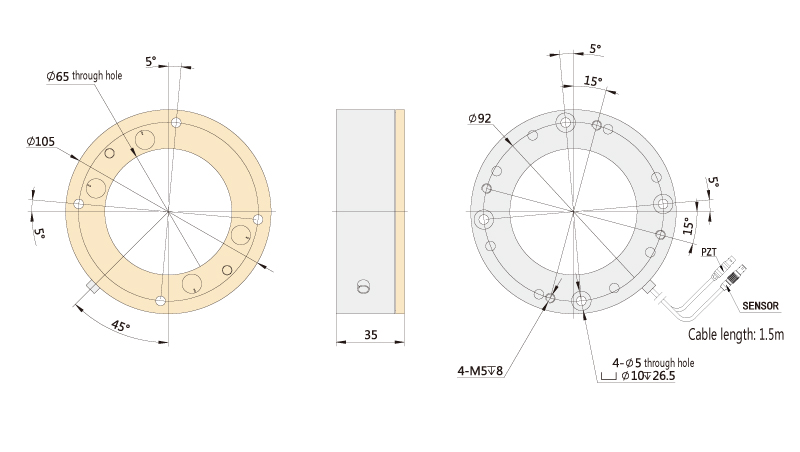

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
     3D diagram presentation
