P72 series piezoelectric objective scanner is a Z-axis motion piezoelectric objective positioner specially designed for objective lens focusing microscopy. It adopts a frictionless flexible hinge parallel guiding mechanism design, with super high focusing stability. The objective positioner is loaded with a microscopic detection/measurement or observation device, and can take lens to generate Z-direction focus to improve accuracy and can be used with a variety of high resolution microscopes.
Characteristics
|
|
|
|
|
|
|
|
|
|
|

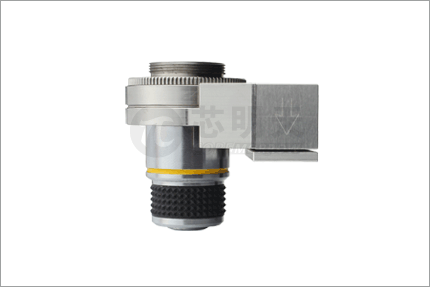

Appearance
|
Moving Part
|

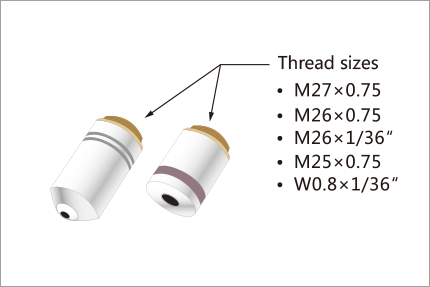

Match brands/sizes of objectives
|
|
Small Size, High Dynamics, Good Linearity P72 Piezo Objective Scanner is very compact, enabling displacements up to 100μm. Its body uses a flexible hinge mechanism, which is frictionless and has a very high resolution. Because of its no-load resonant frequency up to 350Hz, and it can carry 200g load for high-speed precision motion, it has been widely used in optical scanning, confocal microscopy and other fields. A closed-loop version is available for ultra-high positioning accuracy. |
Adjustable response time
|

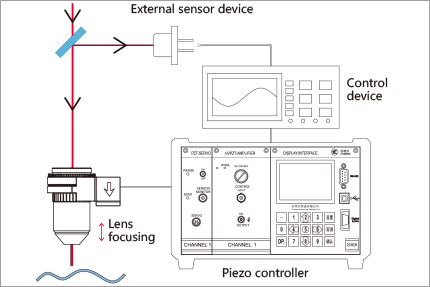

Driving and Control
|
|
Linearity
|
Frequency vs Load Curve
|

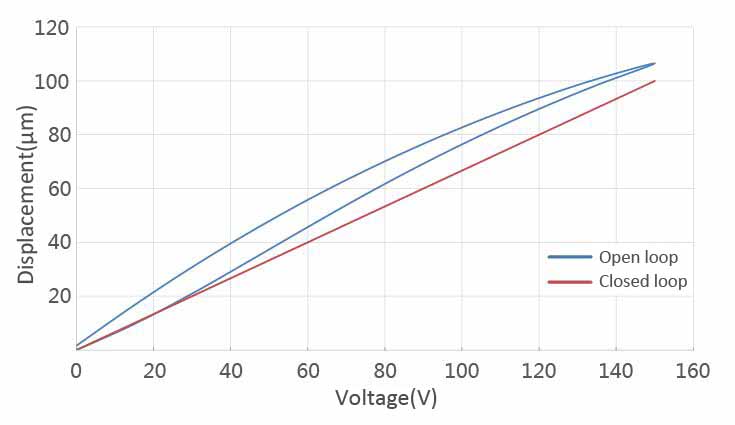

Voltage vs Displacement Curve
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical data | ||||
|
Models |
Suffix S-Closed loop |
P72.Z100S |
P72.Z100K |
Units |
|
Active axis |
Z |
Z |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
1 driving channel |
|
|
|
Travel range（0~120V） |
80 |
80 |
μm±10% |
|
|
Max.travel range（0~150V） |
100 |
100 |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
3 |
1 |
nm |
|
|
Linearity |
0.1 |
- |
%F.S. |
|
|
Repeatability |
0.05 |
- |
%F.S. |
|
|
Push/pull force |
110/15 |
110/15 |
N |
|
|
Stiffness in motion direction |
1.4 |
1.4 |
N/μm±20% |
|
|
Unloaded resonant frequency |
350 |
350 |
Hz±20% |
|
|
Unloaded step time |
10 |
3 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
70（@100g load） |
- |
Hz±20% |
|
|
Load capacity |
0.2 |
0.2 |
kg |
|
|
El.capacitance |
3.6 |
3.6 |
μF±20% |
|
|
Material |
Steel |
Steel |
|
|
|
Mass |
150 |
150 |
g±5% |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
