Capacitive Displacement Measurement SystemCurrent Location:Product Homepage >> Cap Type>>Capacitive Displacement Measurement System
  • Introduction
  • Feedback

       Capacitive displacement measurement system is a non-contact displacement measuring instrument, which consists of a capacitive sensing probe and a sensing and power supply module. It can measure small displacements within the range of 0-1mm with a measurement accuracy of up to nanometer level.




Characteristics


 Modular design,free combine

 High resolution

 Analog output

 Non-contact measurement


Principle

It is based on the principle of an ideal parallel plate capacitor.The sensor and the measured target on the opposite side form two electrodes. The principle of guard ring capacitor is used to ensure that the sensor is still linear when measuring any metal.

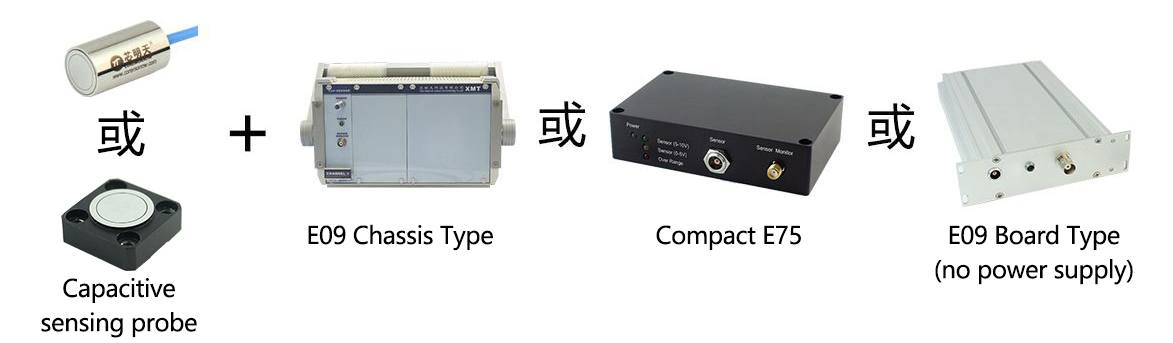

Composition                                                                                CoreMorrow can provide capacitive sensing probe with multiple ranges, with a measurement range of 100μm to 1mm available. It can be used in combination with any of sensing and power supply modules from the E09 chassis type, the E09 board type, or compact E75.

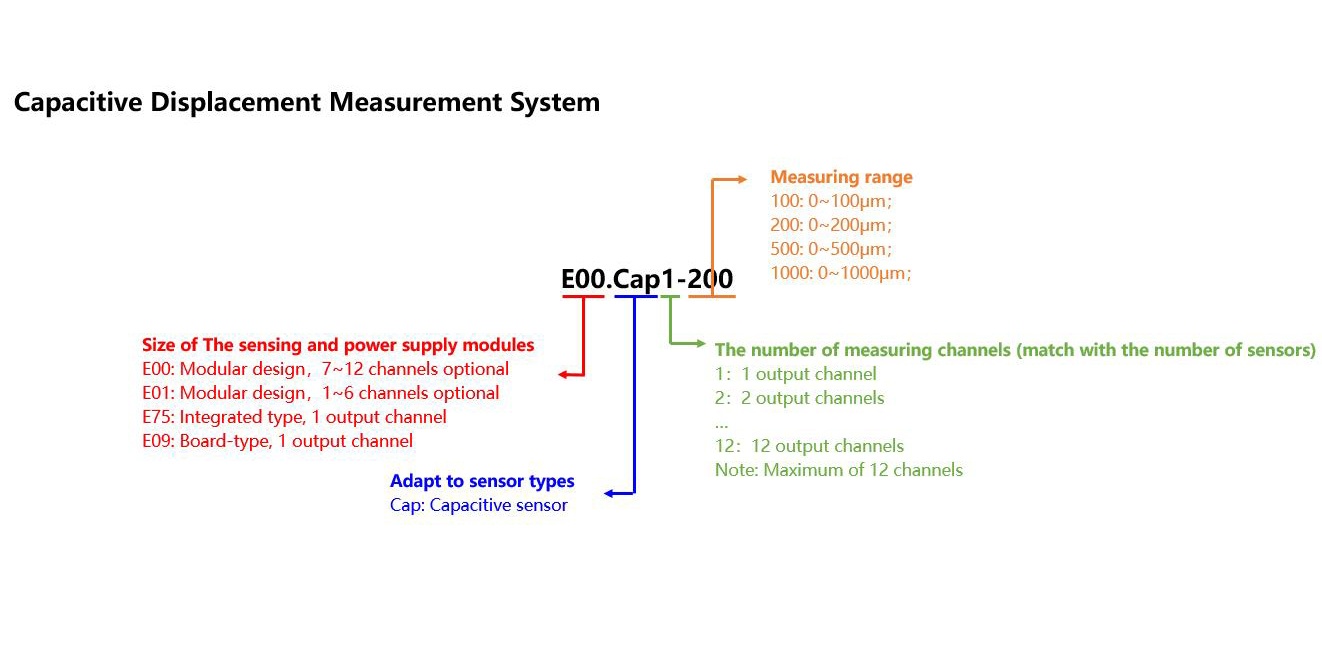

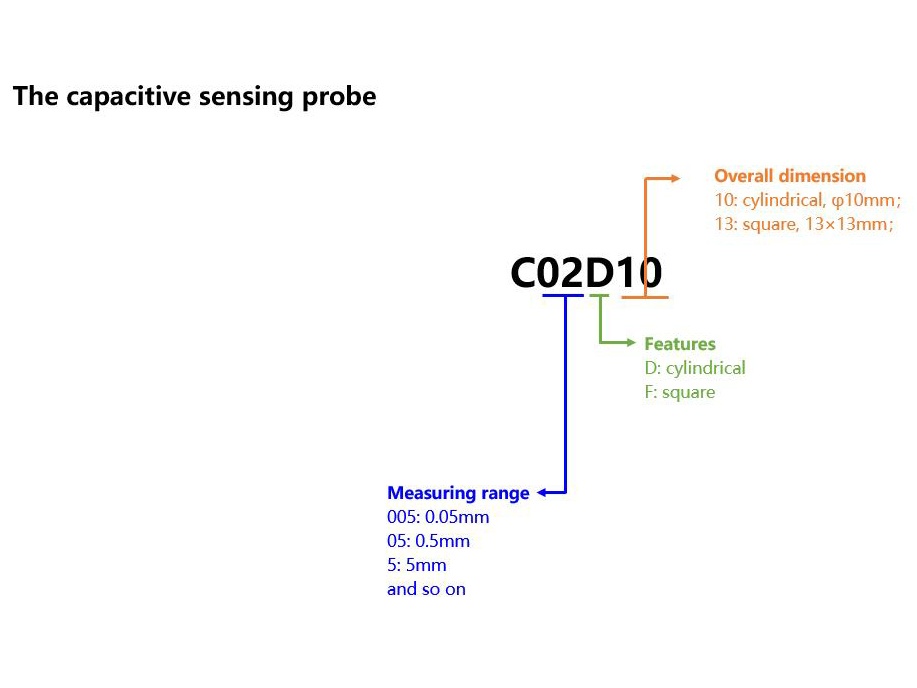

Model Naming Rules

Model Naming Rules

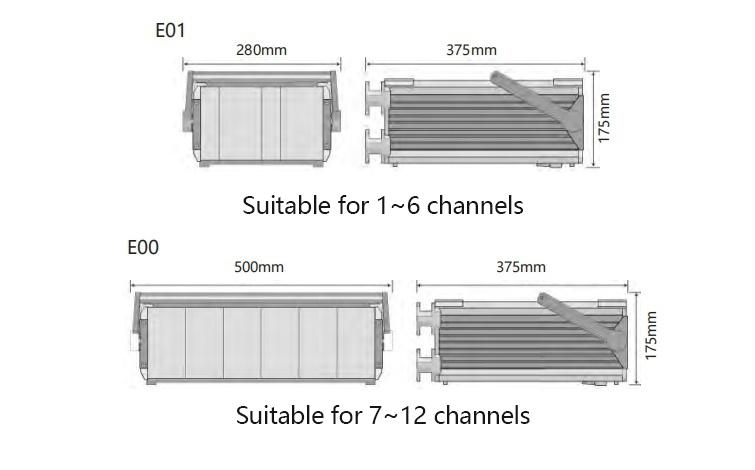

E09 Chassis Type

E09 Board Type(no power supply)

Compact E75


Typical Applications


The capacitive displacement measurement system of CoreMorrow is suitable for high-precision positioning, angle/linear vibration measurement, thickness detection (film thickness measurement, wafer thickness measurement, brake disc thickness measurement, oil film thickness measurement, etc.), rotating machinery clearance measurement, jumping measurement (shaft jumping measurement, etc.), automatic focusing or zeroing, dielectric constant measurement, astronomical telescope lens positioning, outer diameter measurement, deformation measurement, etc.





Vibration, amplitude, gap, beating Deflection, deformation, waviness, inclination Distortion, deformation, axial vibration Displacement, distance, position, elongation




Size, tolerance, identification Insulator thickness measurement Online inspection, size inspection Double-sided thickness detection

Double-sided thickness detection


Magnetic stand Test stand
  Technical data

 No.

Type

Measuring range

[μm]

Channels
The parameter of the capacitive probe
The sensing and power supply modules

Page

Type
Resolution
[nm]
Linearity
[nm]
Repeatability
[nm]

 1

E01.CapX[1]-100

0~100

1~6

C01D10

1.25

50

2.5 Chassis-type

Click to view

 2

E01.CapX[1]-200

0~200

1~6

C02D10

2.5

100

5 Chassis-type

Click to view

 3

0~200
1~6

C02F13

2.5

100

5
Chassis-type

Click to view

 4

E01.CapX[1]-500

0~500
1~6

C05D10

5

200

10 Chassis-type

Click to view

 5

E01.CapX[1]-1000

0~1000
1~6

C1D10

10

400

20 Chassis-type

Click to view

 6

E00.CapX[2]-100

0~100
7~12

C01D10

1.25

50

2.5 Chassis-type

Click to view

 7

E00.CapX[2]-200

0~200

7~12

C02D10

2.5

100

5 Chassis-type

Click to view

 8

0~200
7~12

C02F13

2.5

100

5 Chassis-type

Click to view

 9

E00.CapX[2]-500

0~500
7~12

C05D10

5

200

10 Chassis-type

Click to view

 10

E00.CapX[2]-1000

0~1000
7~12

C1D10

10

400

20 Chassis-type

Click to view

 11

E75.Cap1-100

0~100
1

C01D10

1.25

50

2.5 Compact-type

Click to view

 12

E75.Cap1-200

0~200

1

C02D10

2.5

100

5 Compact-type

Click to view

 13

0~200
1

C02F13

2.5

100

5 Compact-type

Click to view

 14

E75.Cap1-500

0~500
1

C05D10

5
200
10 Compact-type

Click to view

 15

E75.Cap1-1000

0~1000
1

C1D10

10

400

20 Compact-type

Click to view

 16

E09.Cap1-100

0~100
1

C01D10

1.25

50

2.5 Board-type, without power supply modules

Click to view

 17

E09.Cap1-200

0~200

1

C02D10

2.5
100
5 Board-type, without power supply modules

Click to view

 18

0~200
1

C02F13

2.5

100

5 Board-type, without power supply modules

Click to view

19

E09.Cap1-500

0~500
1

C05D10

5 200 10 Board-type, without power supply modules
Click to view
20

E09.Cap1-1000

0~1000
1

C1D10

10 400 20 Board-type, without power supply modules
Click to view

       Note:
      [1]:The X represents the number of channels, ranging from 1 to 6;
      [2]:The X represents the number of channels, ranging from 7 to 12;
