Board-type Capacitive Displacement Measurement System-200μm rangeCurrent Location:Product Homepage >> Cap Type>>Board-type Capacitive Displacement Measurement System-200μm range
  • Introduction
  • Feedback

The capacitive displacement measurement system is a non-contact displacement measuring instrument, which consists of a capacitive sensing probe and a sensing and power supply module. It can measure small displacements within the range of 0-1mm with a measurement accuracy of up to nanometer level.

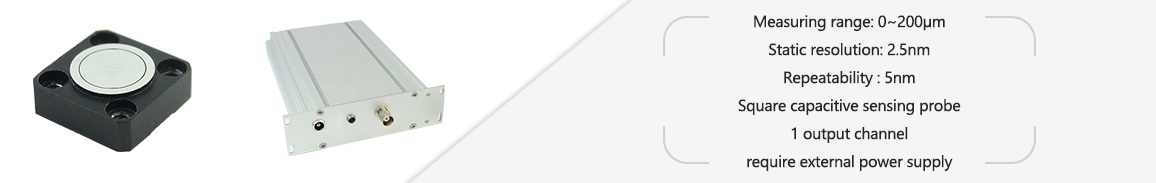

Characteristics


 Measuring range: 0~200μm

 Static resolution: 2.5nm

 Repeatability: 5nm

 1 output channel

 Require external power supply  Square capacitive sensing probe


Principle

It is based on the principle of an ideal parallel plate capacitor. The sensor and the measured target on the opposite side form two electrodes.The principle of guard ring capacitor is used to ensure that the sensor is still linear when measuring any metal.


Typical Applications






Vibration, amplitude, gap, beating Deflection, deformation, waviness, inclination Distortion, deformation, axial vibration Displacement, distance, position, elongation




Size, tolerance, identification Insulator thickness measurement Online inspection, size inspection Double-sided thickness detection
  Technical data

Type

E09.Cap1-200
(without power supply)

Units

Channels 1
Capacitive probe

 Type

C02F13


 Measuring range

0~200

μm

 Static resolution

2.5

nm

 Dynamic resolution(1kHz)

100

nm

 Linearity

100

nm

 Repeatability

5

nm

 Sensor diameter

9

mm

 Minimum target diameter

9

mm

 Sensor wire length

2

m

 Installation

Radial clamping


 Probe size

13×13×4.3

mm

 Mass(wires and connectors included)

33

g

Sensing and Signal Processing

 Sensor channels
1


 Sensor type

CAP


 Static resolution

0.00125

%F.S.

Dynamic resolution(2kHz) 0.05 %F.S.
Analog signal output speed 2 kHz
Absolute error
±0.2
%F.S.
Linearity
0.05 %F.S.
Repeatability
0.0025 %F.S.
Signal temperature stability
<0.005
%FSO/℃
Long-term stability
<0.004
%FSO/月
Bandwidth
2 kHz(-3dB)
Operating temperature
-10~+50

Storage temperature
-10~+75

Ambient humidity
<85
%
Power supply

Prepare on your own

AC 220V±10%,50Hz±10%


Voltage output range(analog)
0~10
V
Sensor output interface
BNC
Size(L×W×D)
35.2×129 ×171.5

mm

      Note: This board-type CAP Micrometer does not have a power supply module and requires  external power supply. Preheating time is about 30 minutes.
