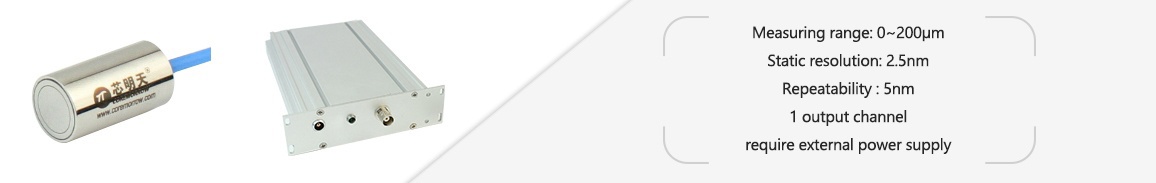

The capacitive displacement measurement system is a non-contact displacement measuring instrument, which consists of a capacitive sensing probe and a sensing and power supply module. It can measure small displacements within the range of 0-1mm with a measurement accuracy of up to nanometer level.
Characteristics
|
|
|
|
|
 Require external power supply
|
|
|
|
|
Principle It is based on the principle of an ideal parallel plate capacitor. The sensor and the measured target on the opposite side form two electrodes.The principle of guard ring capacitor is used to ensure that the sensor is still linear when measuring any metal.
|
Typical Applications
 |
 |
 |
 |
| Vibration, amplitude, gap, beating | Deflection, deformation, waviness, inclination | Distortion, deformation, axial vibration | Displacement, distance, position, elongation |
 |
 |
 |
 |
| Size, tolerance, identification | Insulator thickness measurement | Online inspection, size inspection | Double-sided thickness detection |
| Technical data | |||
|
Type |
E09.Cap1-200 |
Units |
|
| Channels | 1 |
|
|
| Capacitive probe |
Type |
C02D10 |
|
|
Measuring range |
0~200 |
μm |
|
|
Static resolution |
2.5 |
nm |
|
|
Dynamic resolution(1kHz) |
100 |
nm |
|
|
Linearity |
100 |
nm |
|
|
Repeatability |
5 |
nm |
|
|
Sensor diameter |
10 |
mm |
|
|
Minimum target diameter |
10 |
mm |
|
|
Sensor wire length |
1.5 |
m |
|
|
Installation |
Radial clamping |
|
|
|
Probe size |
Φ10×18.5 |
mm |
|
|
Mass(wires and connectors included) |
55 |
g |
|
|
Sensing and Signal Processing |
Sensor channels
|
1 |
|
|
Sensor type |
CAP |
|
|
|
Static resolution |
0.00125 |
%F.S. |
|
| Dynamic resolution(2kHz) | 0.05 |
%F.S. |
|
| Analog signal output speed | 2 |
kHz |
|
|
Absolute error |
±0.2 |
%F.S. |
|
|
Linearity |
0.05 |
%F.S. |
|
|
Repeatability |
0.0025 |
%F.S. |
|
|
Signal temperature stability |
＜0.005 |
%FSO/℃ |
|
|
Long-term stability |
＜0.004 |
%FSO/月 |
|
|
Bandwidth |
2 |
kHz（-3dB） |
|
|
Operating temperature |
-10~+50 |
℃ |
|
|
Storage temperature |
-10~+75 |
℃ |
|
|
Power supply |
Prepare on your own AC 220V±10％，50Hz±10％ |
|
|
|
Ambient humidity |
＜85 |
% | |
|
Voltage output range(analog) |
0~10 |
V | |
|
Sensor output interface |
BNC |
|
|
|
Size(L×W×D) |
35.2×129 ×171.5 |
mm |
|
Note: This board-type CAP Micrometer does not have a power supply module and requires external power supply. Preheating time is about 30 minutes.
