XP-721 series is a small-volume conventional piezoelectric objective positioner with a separate thread adapter design that can be used with a variety of microscopes.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Appearance
|
Moving Part
|
Match brands/sizes of objectives
|
|
Quick Installation, High Stability
XP-721 is general-purpose microscopic imaging focus positioner with piezoelectric ceramic drive, and achieves a scan range of 100μm. |

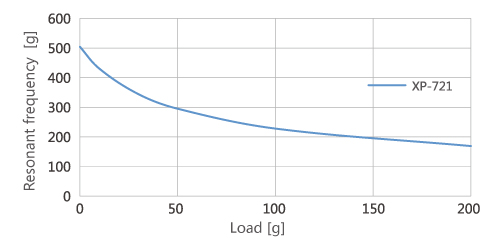

Frequency and Load Curve
|
Inverted Optical Microscope XP-721 piezoelectric objective scanner is mounted in an inverted optical microscope.
|
|
Adjustable response time
|
Driving and Control
|

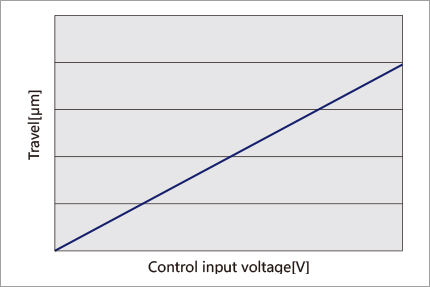

Closed-Loop Curve
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical data | ||||
|
Models |
Suffix S-Closed loop |
XP-721.S |
XP-721.K |
Units |
|
Active axis |
Z |
Z |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
1 driving channel |
|
|
|
Travel range（0~120V） |
80 |
80 |
μm±10% |
|
|
Max.travel range（0~150V） |
100 |
100 |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
3 |
1 |
nm |
|
|
Linearity |
0.2 |
- |
%F.S. |
|
|
Repeatability |
0.1 |
- |
%F.S. |
|
|
Push/pull force |
30/10 |
30/10 |
N |
|
|
Stiffness in motion direction |
0.3 |
0.3 |
N/μm±20% |
|
|
Unloaded resonant frequency |
500 |
500 |
Hz±20% |
|
|
Unloaded step time |
10 |
2 |
ms±20% |
|
|
Load capacity |
0.2 |
0.2 |
kg |
|
|
El.capacitance |
3.6 |
3.6 |
μF±20% |
|
|
Material |
Aluminum |
Aluminum |
|
|
|
Mass |
250 |
250 |
g±5% |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
