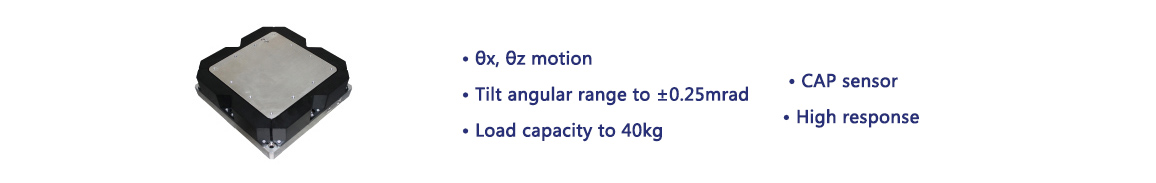

S50 series is θx, θz axis yaw/rotary stage, with super large load capacity of up to 40kg and deflection angle of ±0.25mrad. It can work in dynamics with a 20kg load. The products are mainly used in large load tilt/rotation motion experiments, such as vibration simulation experiments.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Appearance
|
Moving Part
|
Dynamic Performance@20kg
|
|
Large Load Capacity, High Accuracy & Frequency
S50 features large load designed for large load applications. It has capacitive closed-loop amplitude correction function and can move precisely with 40kg load. The max travel is ±0.25mrad. |
Frequency and Load Curve
|
Performance Test S50 requires 3-channel controller for drive control, and different power piezo controllers are used according to the required frequency. For example, for the frequency of use of 100~200Hz, we recommend E00/E01 series controller with E05 amplifier module.
|
|
Custom is available
|
Applications
|
|
|
|
|
| Tilt angle vs operating frequency@20kg loa | ||
| Angle[mrad]±20% |
Frequency θz
[Hz]±20%
|
Frequency θx
[Hz]±20%
|
| ±0.1 | 0-100 | 0-130 |
| ±0.05 | 0-170 | 0-300 |
| ±0.02 | 0-180 | 0-400 |
| ±0.01 | 0-180 | 0-500 |
| Technical data | |||||||
|
Models |
C - closed loop K - open loop |
S50.UR0C S50.UR0K |
Unit |
||||
|
Active axis |
θx, θz |
|
|||||
|
Drive control |
3 driving channels 2 sensing channels |
|
|||||
|
Tilt angle(0~120V) |
0.4/axis(≈80″) |
mrad±20% |
|||||
|
Tilt angle(0~150V) |
0.5/axis(≈100″) |
mrad±20% |
|||||
|
Sensor type |
CAP/- |
|
|||||
|
Resolution |
0.02/0.01(＜0.01"） |
μrad |
|||||
|
Closed-loop linearity |
0.3/- |
%F.S. |
|||||
|
Closed-loop repeatability |
0.2/- |
%F.S. |
|||||
|
Unloaded resonant frequency |
θx500/θz750 |
Hz±20% |
|||||
|
Unloaded step time |
30/15 |
ms±20% |
|||||
|
With 20kg load, tilt angle vs operating frequency |
Angle |
±0.1 |
±0.05 |
±0.02 |
±0.01 |
mrad±20% |
|
|
Frequency θz |
0-130 |
0-300 |
0-400 |
0-500 |
Hz±20% |
||
|
Frequency θx |
0-100 |
0-170 |
0-180 |
0-180 |
Hz±20% |
||
|
Load capacity |
40 |
kg |
|||||
|
El.capacitance |
30/axis |
μF±20% |
|||||
|
Material |
Aluminum, steel |
|
|||||
|
Mass |
16 |
kg±5% |
|||||
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
