S54 series is a two-dimensional θx and θy-axis piezoelectric deflection stage with a large central through-hole. It adopts a frictionless flexible hinge structure design with fast response speed and high closed-loop positioning accuracy. The 80×80mm center large transparent hole makes it easy to be integrated into the systems of microscopy and scanning optics.
Characteristics
|
|
|
|
|
|
|
|
|
|
|

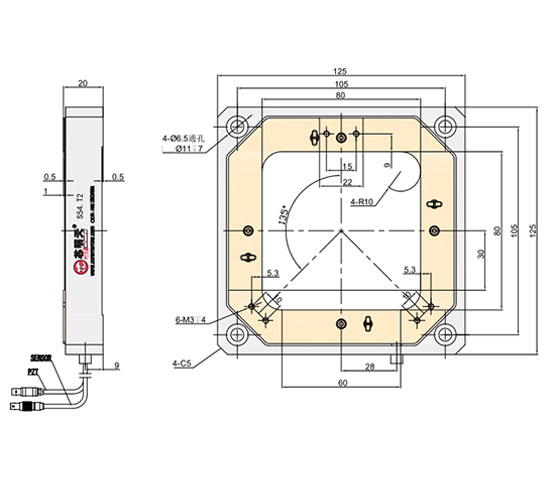

Appearance
|
Moving Part
|
Open-Loop Curve
|
|
Closed-loop with High Accuracy
The internal flexible hinge guiding mechanism is optimized by finite element analysis to minimize the angular offset and no friction. |

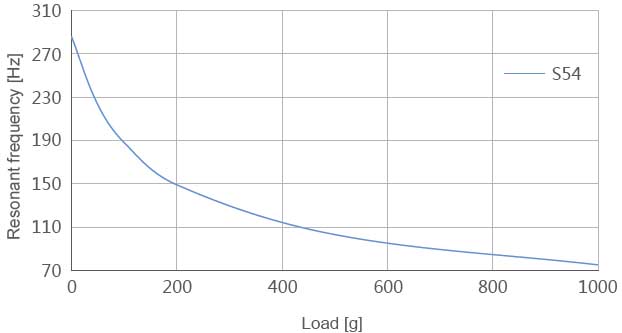

Frequency and Load Curve
|
Custom Available
|
|
Large Aperture S54 piezoelectric stage has a large aperture of 80×80mm, which is very suitable for applications requiring transmitted light.
|
Measuring Tilt Range
|
Vibration Test
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical data | ||||
|
Models |
S - closed loop K - open loop |
S54.T2S |
S54.T2K |
Units |
|
Active axis |
θx, θy |
θx, θy |
|
|
|
Drive control |
3 driving channels 2 sensing channels |
3 driving channels |
|
|
|
Tilt angle(0~120V) |
±0.8/axis(≈±165″) |
±0.8/axis(≈±165″) |
mrad±10% |
|
|
Max.tilt angle(0~150V) |
±1/axis(≈±200″) |
±1/axis(≈±200″) |
mrad±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Tilt resolution |
0.25（≈0.05"） |
0.05（≈0.01"） |
μrad |
|
|
Closed-loop linearity |
0.2 |
- |
%F.S. |
|
|
Closed-loop repeatability |
0.1 |
- |
%F.S. |
|
|
Push/pull force |
40/8 |
40/8 |
N |
|
|
Stiffness in motion direction |
0.5 |
0.5 |
N/μm±20% |
|
|
Unloaded resonant frequency |
θx450/θy400 |
θx450/θy400 |
Hz±20% |
|
|
Unloaded step time |
20 |
3.5 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
110（unloaded） |
110（unloaded） |
Hz±20% |
|
|
Load capacity |
1 |
1 |
kg |
|
|
El.capacitance |
3.6/axis |
3.6/axis |
μF±20% |
|
|
Material |
Aluminum, steel |
Aluminum, steel |
|
|
|
Mass |
510 |
510 |
g±5% |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
