S23 Fast Steering Mirrors with apertureCurrent Location:Product Homepage >> Fast Steering Mirrors>>S23 Fast Steering Mirrors with aperture
  • Introduction
  • Controllers
  • Feedback

piezoelectric Tilt/Tip and Z Platform(phase shifter) is a θx, θy deflection/tilt and Z-axis linear motion platform, with a center aperture. The product is compact, and features the deflection range of 1.5mrad, Z-axis linear motion travel of 10μm. The piezo tilt tip and Z platform is an open-loop version with high resolution and response speed, it is the first choice for interference scanning phase shift.

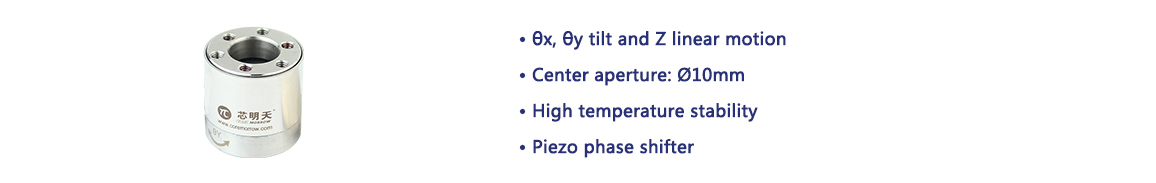

Characteristics


 θx, θy tilt and motion in Z

 Center aperture: Ø10mm

 High temperature stability

 Piezo phase shifter

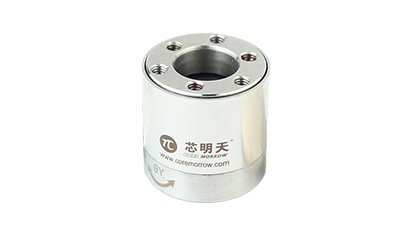

Appearance

θx θy Z motion

Motion Control

The platform has three piezo actuators connected in parallel to provide the top ring motion. For vertical positioning (piston movement), it requires a controller with only one drive channel and three drive channels are required to provide Z-direction and tip/tilt motion.

Frequency and Load Curves

Optional Lens Adapter

Open Loop, High Dynamic, With Aperture

The platform is multi-axis motion platform with volume of Ø20 × 19.5mm, can achieve θx, θy axis of 0.7mrad deflection and 10μm linear travel in Z. The open-loop version features ultra-high resolution and ultra-fast response speed. The tripod structure design has an very wide operating temperature range.

The center of the platform has a through hole of Ø10mm diameter, which is suitable for applications requiring light transmission, such as light filtration.


Applications


 Image processing and stabilization

 Laser scanning / beam deflection

 Active and adaptive optics

 Optical filter

 Beam stabilization

 Phase shifter



    Technical data

Models

 Suffix K - open loop

S23.Z10K

S23.ZT1K

Units

Active axis

Z

θx θy Z



Drive control

1 driving channel

3 driving channel



θx, θy tilt angle0~120V

-

1.2(≈248″)

mrad±20%

Travel in Z0~120V

8

8

μm±20%

θx, θy Max.tilt angle0~150V

-

1.5(≈309″)

mrad±20%

Max.travel in Z0~150V

10

10

μm±20%

Tilt resolution in θx, θy

-

0.02(<0.01"

 μrad

Resolution in Z

0.08

0.08

nm

Unloaded resonant frequency

7.5

θx3.2/θy3.5/Z7.5

kHz±20%

Unloaded step time

1.5

0.5

ms±20%

El.capacitance

0.5

0.5/axis

μF±20%

Material

Steel

Steel



Mass

50

80

g±5%

Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.

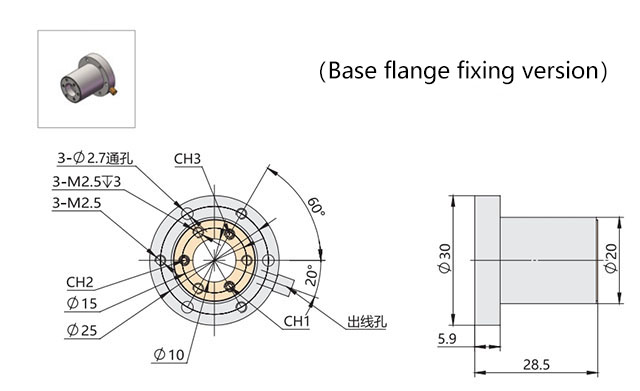

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF

Standard Edition

Base flange fixing Edition

Step

Specs Sheet

S23.Z10

S23.ZT1

Manual
    Drawings(Click on the picture to enlarge it)

推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
