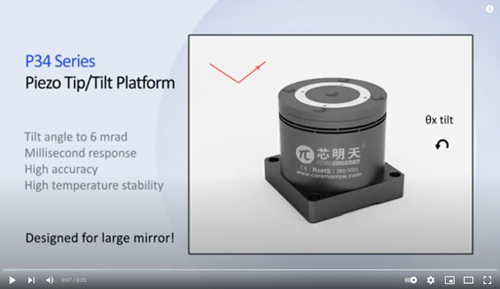

P34 piezoelectric deflection platform is designed for large up to 80 mm in diameter. Their differential drive exhibits excellent angular positioning stability over a wide temperature range. P34's structure allows the top platform to perform high dynamic precision deflection motion on two orthogonal axes with common pivot points.

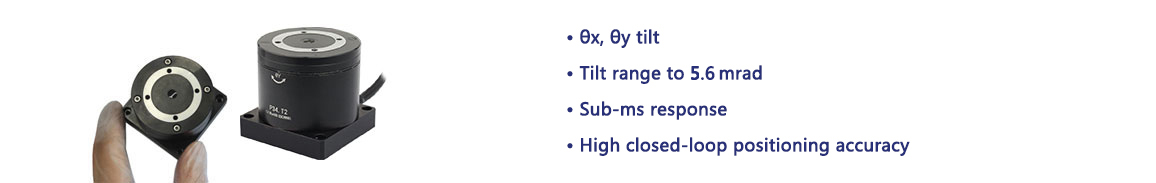

Characteristics
|
|
|
|
|
|
|
|
|
|
|
θx θy Tilt Motion
|

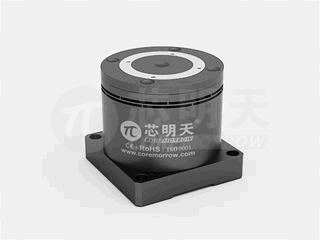

Appearance
|
Moving Part
|
|
Optional Mirror Adapter
|
Step Time Controlled by E51.B piezo controller, P34.T2S piezo tip/tilt platform's step time to 80% deflection range is about 3ms; The step time of loading 200g to 100% tilt range is about 15ms.
|
Frequency and Load Curves
|
|
High Stability, Linearity and Dynamics
CoreMororow's piezo tip/tilt system is based on a parallel kinematic design. The internal four piezo actuators are paired differential controls that determine the platform deflection motion, which makes P34 piezo platform have excellent angular positioning stability in a wide temperature range. |

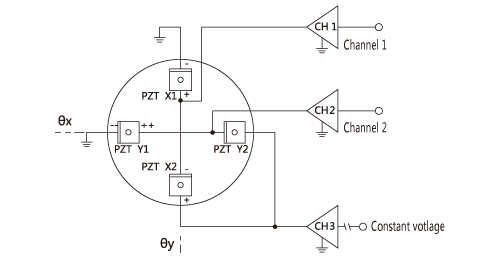

Driving Principle Piezo Tip/Tilt Platform(2-axis motion) is based on parallel kinematic design with coplanar axis and moving platform. 4 piezo actuators are placed at a 90° angle interval, paired differential control distribution. 2 pairs of differentially driven actuators provide the highest achievable angular stability over a wide temperature range. Its tilt motion is achieved by two pairs of piezo actuators in a push-pull motion, controlled by a bridge connection circuit.
|
Applications
|
|
|
|
|
|
|
|
|
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
| P34-B2 Technical Data(Higher Accuracy Version) | ||||
|
Types |
P34.T1S-B2 P34.T1K-B2 |
P34.T2S-B2 P34.T2K-B2 |
P34.T4S-B2 P34.T4K-B2 |
Units |
|
Active axes |
θx θy |
θx θy |
θx θy |
|
|
Driving channels |
3 driving channels 2 sensing channels |
3 driving channels 2 sensing channels |
3 driving channels 2 sensing channels |
|
|
Nominal travel（0~100V） |
1.1 |
2.2 |
4.5 |
mrad±20% |
|
Travel（0~120V） |
1.4 |
2.8 |
5.6 |
mrad±20% |
|
Sensor type |
SGS/- |
SGS/- |
SGS/- |
|
|
Resolution |
0.2/0.1 |
0.2/0.1 |
0.2/0.1 |
μrad |
|
Linearity |
0.1/- |
0.1/- |
0.1/- |
%F.S. |
|
Repeatability |
0.02/- |
0.02/- |
0.02/- |
%F.S. |
|
Unloaded resonant frequency |
3.6 |
2.8 |
1.6 |
kHz±20% |
|
El.capacitance |
3.6/axis |
7.2/axis |
14.5/axis |
μF±20% |
|
Material |
Al, Steel |
Al, Steel |
Al, Steel |
|
|
Mass |
380 |
500 |
800 |
g±5% |
|

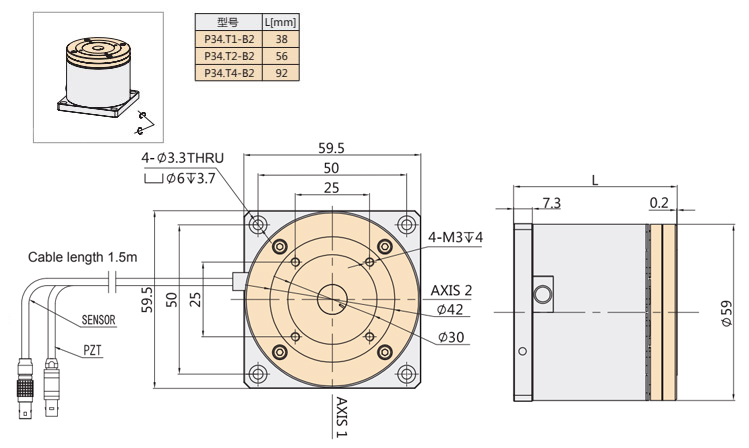

Platform length L |
38 |
56 |
92 |
mm±0.1 |
Note: Above parameters are measured with the E00/E01 piezo controller. The maximum driving voltage can be -20V~150V; For high-reliability and long-term operation, the recommended driving voltage is 0~120V.
