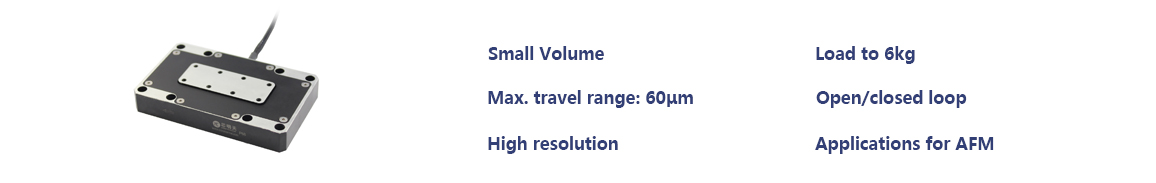

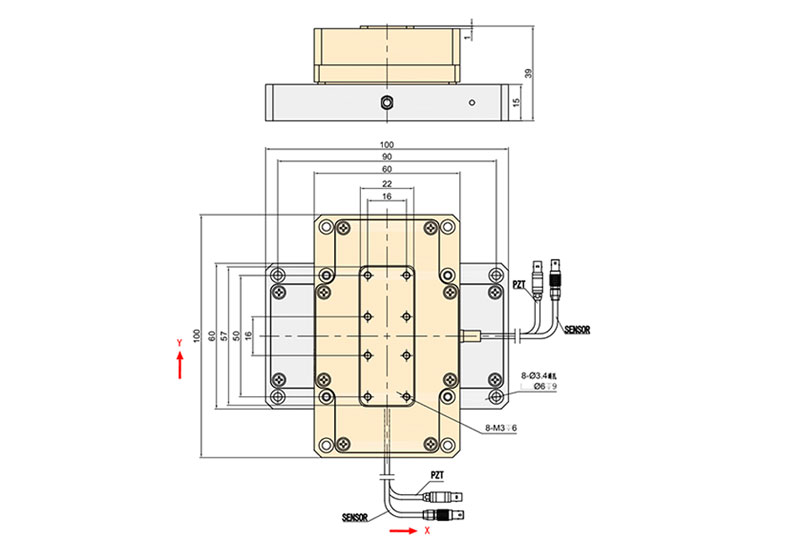

P66.X60 piezo nano-positioning stage uses piezoelectric stacks as driving source and using direct drive mechanism. It is nano-positioning system combining piezoelectric and flexible hinges. Precision, and optional high-precision sensors for closed-loop precise positioning control. This product is ideal for positioning applications such as optical path length correction in interference, sample positioning in microscopy or scanning applications, and more.
Features
|
|
|
|
|
|
Open/Closed Loop Version
P66 could be selected as open-loop or closed-loop version. Closed-loop is equipped with high-resolution and fast-responding strain sensor (SGS). The device feeds back high-bandwidth, high-precision voltage signals. |
Application Cases: AFM CoreMorrow P66.XY piezo nanopositioning stage is widely used in AFM for its high response frequency, high precision and high reliability.
|
Applications
|
|
|
|
|
| Technical data | |||
|
Models |
S-Closed loop K-Open loop |
P66.X60S P66.X60K |
Untis |
|
Active axes |
X |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
|
|
|
Travel range（0~120V） |
48 |
μm±10% |
|
|
Travel range（0~150V） |
60 |
μm±10% |
|
|
Integrated sensor |
SGS/- |
|
|
|
Closed/open loop resolution |
2/0.5 |
nm |
|
|
Closed-loop linearity |
0.1/- |
%F.S. |
|
|
Repeatability |
0.05/- |
%F.S. |
|
|
Pitch/Yaw/Roll |
<20 |
µrad |
|
|
Push/pull force capacity |
160/16 |
N |
|
|
Stiffness in motion direction |
2.8 |
N/μm±20% |
|
|
Unloaded resonant frequency |
2.8 |
kHz±20% |
|
|
Closed/open-loop unloaded Step time |
10/1.6 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
500（unloaded） |
Hz±20% |
|
|
Load capacity |
6 |
kg |
|
|
Electrical capacitance |
7.2 |
μF±20% |
|
|
Material |
Aluminum |
|
|
|
Mass |
190 |
g±5% |
|
