Piezo Clamp XD002Current Location:Product Homepage >> Amplified Piezo Actuator>>Piezo Clamp XD002
  • Introduction
  • Controllers
  • Feedback

According to the requirements of automatic wire bonding machine, CoreMorrow produces piezo clamp, which is designed and developed for clamping wire. It feaures a simple structure, fast response and high resolution.


Features


 Displacement to ±190μm

 Multiple models available

 Resonant frequency to 42kHz

 Small size


Displacement vs Voltage

Recommended Controller

E53.A piezo controller is ideal for driving the piezo clamp, ensuring fast response times and ensuring the stability of the piezo clamps. E53 is very compactand easy to integrate.

Principle

The structure of piezo clamps is composed of piezo stacks, flexible mechanical structure, fixed jaw and adjustable jaw. Piezo stack is installed between clamping jaw and the base. When voltage is applied to piezo stack, the output displacement of the piezo stack is amplified by the lever arm of the clamping jaw to the position where the top end of the clamp is clamped. Control the clamp to hold the gold wire. After the voltage is removed, the of clamp jaws return to initial position.


Applications


 Image processing / stabilization

 Interlaced scanning, jitter

 Laser scanning / beam deflection and stabilization

 Optics

    Technical data

Models

XD002.80K
XD002.90K
XD002.100K
XD002.150K

XD002.200S

XD002.250K

Units

Active axes

X X X X

X(闭环)

X



Travel range0~120V

±32
±36 ±40
±60

±80

±150

μm±20%

Max.travel range(0~150V)

±40
±45 ±50
±75

±100

±190

μm±20%

Push/pull force capacity

- 10/1 - -

4/-

-

N

Stiffness

- 0.04 - -

0.04

-

N/μm±20%

No load resonant frequency

42000 1500 1050 1100

400

660

Hz±20%

No load Step time

0.075 0.7 - -

-

-

ms±20%

No load Operating frequency

- 300 - -

-

-

Hz

Load capacity

0.05 0.05 0.05 0.05

0.05

0.1

kg

Electrical capacitance

0.18 0.18 0.18 0.17

7.2

4.85

μF±20%

Material

Ti Stainless steel Steel Steel

Steel

Stainless steel



Mass

12(Cable included) 10 10
8.7

305

215(Cable included)

g±5%

Power-on jaw status

Open Open Open Open

Close

Close



    Note:

    1, Customizable clamping displacement up to 500 μm and 1000 μm types;

    2. Connector can be customized. Low temperature version and high vacuum version can be customized.

    3.The parameters mentioned are related to the test environment and test equipment.

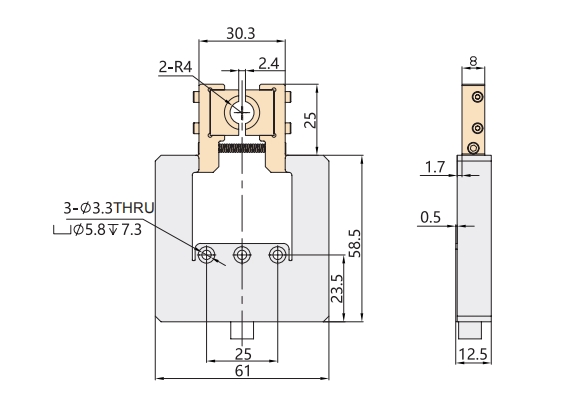

    XD002.80K Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

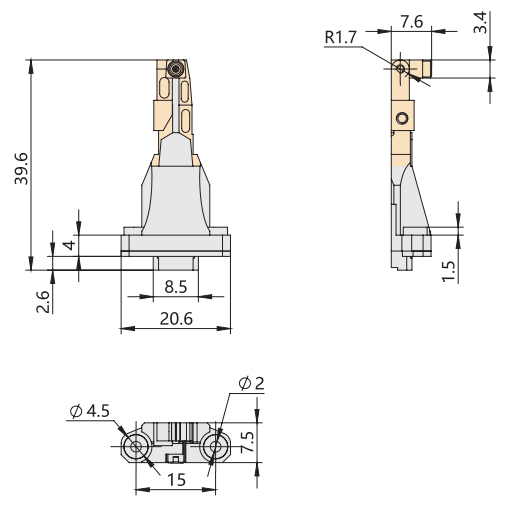

    XD002.90K Drawings(Click on the picture to enlarge it)
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

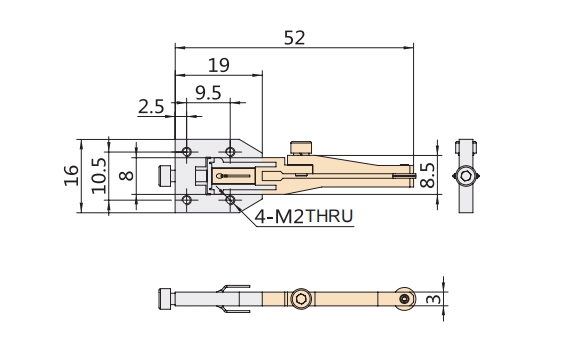

    XD002.100K Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

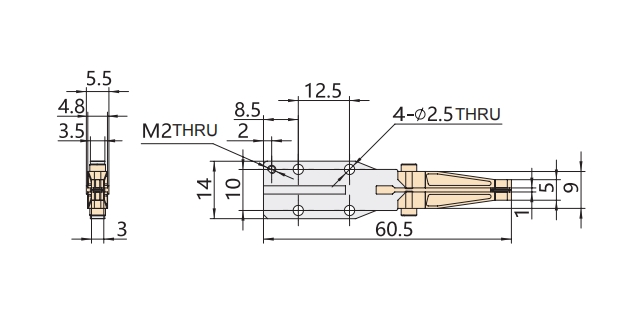

    XD002.150K Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

    XD002.200S  Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF

XD002.90K

XD002.150K

XD002.200S

Step

Specs Sheet

Manual


    XD002.X250K Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual


推荐控制器

E01.D3 Piezo Controller

1 channel
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 291mA


E53 Piezo controller

1 channel
Software / Analog input
Open/closed loop
Ave.current: 60mA


E52 Piezo Controller

1 channel
Analog input
Open/closed loop
Ave.current: 300mA
