Piezo nanopositioning system have nanometer-level resolution and positioning accuracy, and are integrated into various related instruments and mechanical equipment to achieve high-precision nanometer-level positioning and movement. Understand the basic working principle and performance of piezoelectric nanopositioning stage, choose the suitable piezo nanopositioning stage for your applications.
What is the piezo nanopositiong stage?
Piezoelectric nanopositioning stage is piezoelectric platform that uses piezoelectric ceramics as driving source and combines with flexible hinge mechanism to achieve precise movement of X/Z/XY/XZ/XYZ axes. The maximum motion range is up to 375μm. It has the characteristics of small volume, no friction, and fast response speed. It is equipped with high-precision sensors, which can achieve nano-level resolution and positioning accuracy and have extremely high reliability. Piezoelectric nanopositioning stage plays vital role in the field of precision positioning.
Features of piezo nanopositioning stage
High resolution

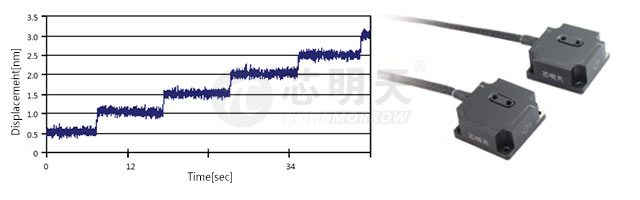

Piezoelectric nanopositioning stage uses frictionless flexible hinge guide mechanism, which can achieve sub-nanometer resolution. CoreMorrow N60.X series piezoelectric nanopositioning stage, with E53 series piezoelectric control, can achieve 0.5nm step resolution.
Large blocking force

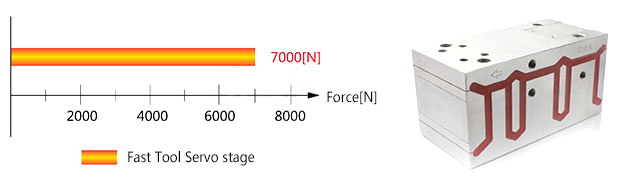

CoreMorrow fast tool servo stage uses large blocking force piezoelectric ceramics, with maximum force of several thousand newtons, which is widely used in precision machining and other fields.
Quick response

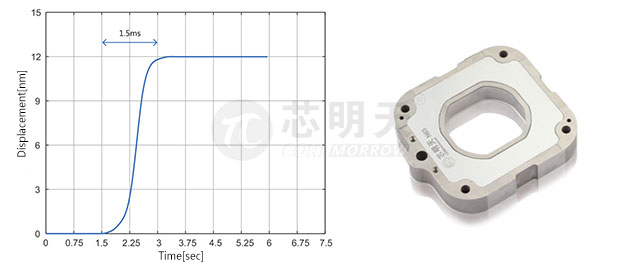

Piezoelectric nanopositioning stage is driven by piezoelectric ceramics, and the response time can be as fast as milliseconds. CoreMorrow N65 series nanopositioning stage is equipped with high-power E00/E01 series piezoelectric controller, which can achieve full amplitude step time of 1.5ms.
No wear
The stage adopts finite element simulation analysis to optimize the flexible hinge structure. The flexible guidance system has ultra-high guidance accuracy, and has the characteristics of high rigidity, high load, no wear, and maintenance-free.
Voltage driving
CoreMorrow standard driving voltage for piezoelectric nanopositioning products is 0~120/150V, which can produce a maximum displacement of 375μm. At the same time, other voltage driving versions can be customized according to requirements.
Driving control system

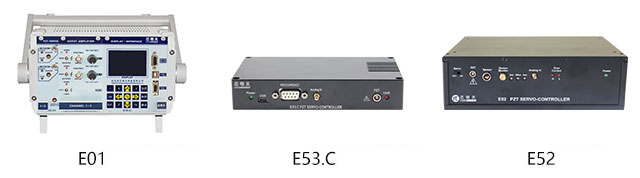

CoreMorrow piezoelectric controller is controlled by analog input or digital input, has power amplification function, and the output voltage and output frequency are adjustable. A variety of channels and functions are optional, which can drive various piezoelectric products, and can also provide customized services according to application needs.
Applications
Fiber end detection
Piezoelectric nanopositioning stage drives the lens to make precise movements, and cooperates with the microscope to complete the interference detection experiment on the quality of the fiber end face.
Precision turning
Using ultra-precision manufacturing technology of rapid tool positioner, realize nano-scale ultra-precision machining of optical aspherical surface, freeform surface, microstructure and array elements and molds.
AFM
Combination of the closed-loop nanopositioning stage and the atomic force microscope can achieve a scanning range of 375μm with a sub-nanometer resolution and a response time of up to sub-milliseconds.
Laser Plane Interferometer
Function of the Z-direction piezoelectric nano-positioning stage is to perform nano-level micro-movements, precisely adjust the position of the object to be measured, and thereby change the width and position of the corresponding stripes to achieve more accurate surface measurement.
