N60.X Piezo Stage, X Direction, Stroke to 30 µmCurrent Location：Product Homepage >> X/Z Piezo Nanopositioner>>N60.X Piezo Stage, X Direction, Stroke to 30 µm
  • Introduction
  • Controllers
  • Feedback

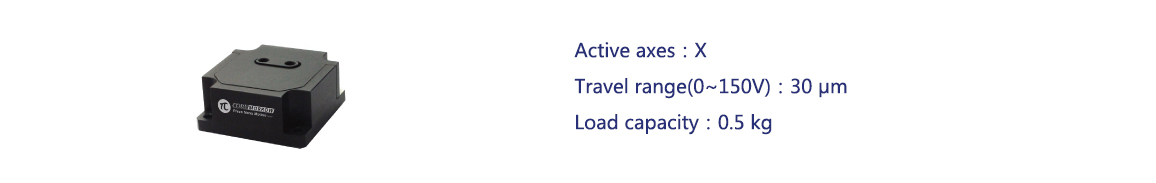

N60 series piezoelectric nanopositioning stage is a one-dimensional X-axis piezoelectric translation stage. The built-in high-performance piezoelectric ceramic can achieve displacement of up to 30μm on the X axis. The principle of excellent mechanism amplification makes it high motion linearity, and open-loop and closed-loop are available. The N60 stage is compact with dimensions of 28×28×12.5mm and easy to integrate, making it an ideal choice for small-volume, high-precision, one-dimensional precision positioning.


Characteristics


 X aixs

 travel range to 30μm

 Ultra small size

 Load to 0.5kg

 Nano resolution

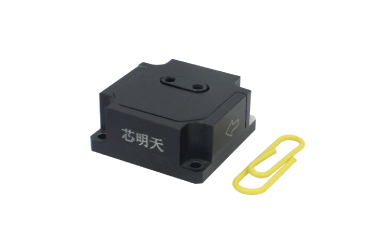

Appearance

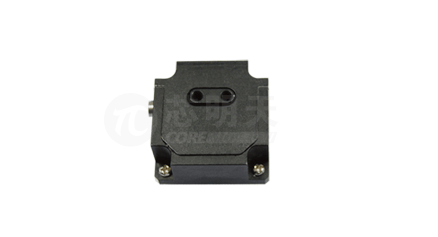

Moving-part

Amplified-driving

High Resolution, High Resonant Frequency, Compact Size

N60 adopts the principle of mechanism amplification, with a one-dimensional X-axis movement travel of 30μm, compact size and structure, and dimensions of only 28╳28╳12.5mm.
The excellent mechanism amplification design principle makes the N60 piezoelectric nanopositioning stage compact, without friction and backlash, and has very high resolution and good dynamic performance. The no-load resonance frequency reaches 1800Hz.

Sensor

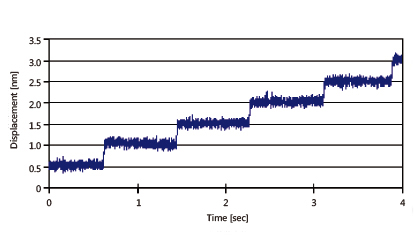

High Resolution

N60 is equipped with an E53 piezo controller, which can achieve step resolution of 0.5nm.


Applications


 Fiber optic positioning/optical scanning

 Nano-imprinting

 Interferometry/Microscopy/Nanopositioning

 Biotechnology/Semiconductor Technology

 Fiber Posistioning / Quality Assurance Testing

 Micromachining/Micromanipulation/Optics scan

    Technical data

Models

 S-Closed loop

K-Open loop

N60.X30S

N60.X30K

Units

Active axes

X



Travel range(0~120V)

24/axis

μm±10%

Travel range(0~150V)

30/axis

μm±10%

Integrated sensor

SGS/-



Closed/open loop resolution

1/0.5

nm

Closed-loop linearity

0.5/-

%F.S.

Repeatability

0.3/-

%F.S.

Pitch/Yaw/Roll

<10

μrad

Push/pull force capacity

8/2

N

Stiffness

0.6

N/μm±20%

Unloaded resonant frequency

1.8

kHz±20%

Closed/open-loop unloaded Step time

10/2

ms±20%

Load capacity

0.8

kg

Electrical capacitance

0.8/axis

μF±20%

Material

Aluminum



Mass

80

g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.

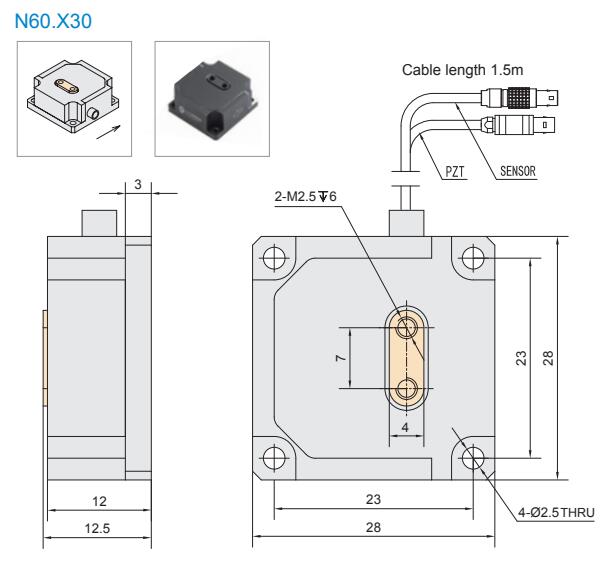

    Drawings（Click on the picture to enlarge it）
     Downloads
Auto CAD PDF

Step

Specs Sheet
Manual

推荐控制器

E01.D3 Piezo Controller

1 channel
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 291mA


E53 Piezo controller

1 channel
Software / Analog input
Open/closed loop
Ave.current: 60mA


E52 Piezo Controller

1 channel
Analog input
Open/closed loop
Ave.current: 300mA
