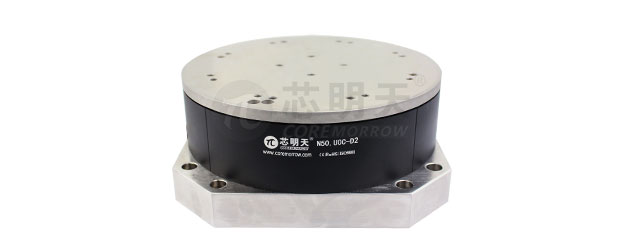

N50.U0C series is one-dimensional θx axis deflection piezoelectric deflection stage, its load capacity can reach 60kg, and the deflection angle is ±0.25mrad. It uses capacitive closed-loop sensor with resolution of up to 10nrad and can work at a high frequency under 20kg load. It is very suitable for large load deflection motion experiments.
Features
Θx axis tilt
Load to 60kg
Tilt angle to 0.5mrad@150V
Operating frquency to 210Hz@±0.01mrad
Applications
Beam scanning
Large load deflection movement
Interference/Metering
Space disturbance simulation system

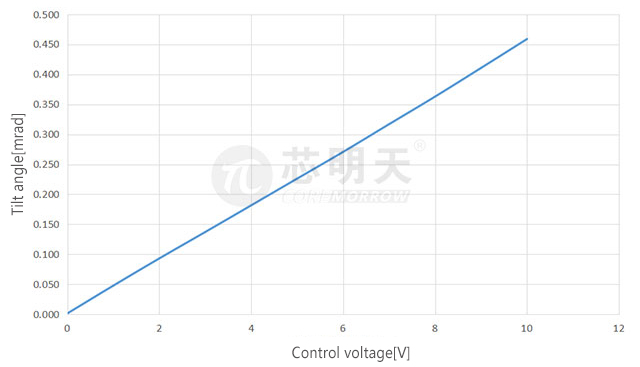

Closed loop displacement VS voltage curve
Note: Contrl voltage is 12 times driving control voltage.

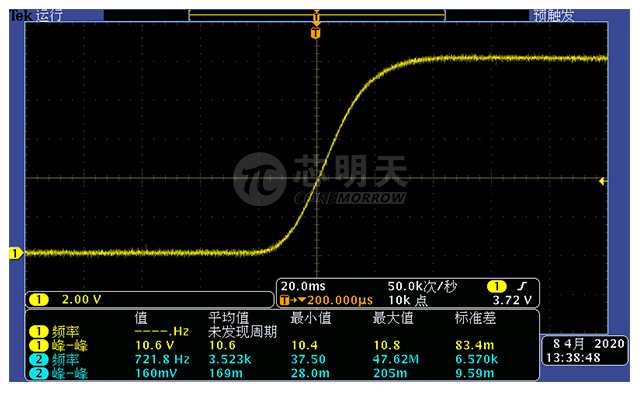

Step time@12ms

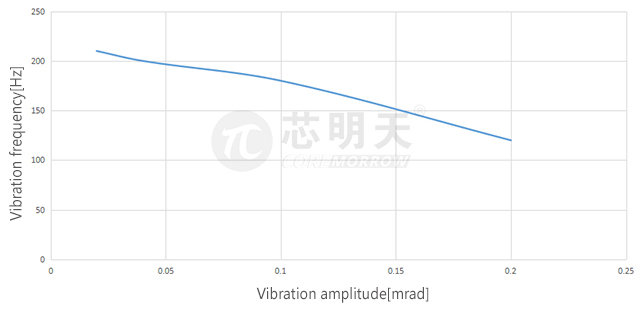

Operating frequency VS vibration amplitude @20kg
Technical data
Model: N50.U0C
Active axis: θx
Tilt angle: 0.4mrad(≈80”)@120V
Tilt angle: 0.5mrad(≈100”)@150V
Sensor: CAP
Closed/open loop resolution: 0.02/0.01μrad(<0.01”)
Closed loop linearity: 0.3%F.S.
Closed loop repeatability: 0.3%F.S.
Unload resonant frequency: 750Hz
Closed/open loop unload step time: 30/15ms
Load: 60kg
Capacitance: 30μF
