CoreMorrow XD002.250K Large Load Piezo Clamps/ Piezo Wire Clamps

Update time：2024-04-17 13:25:10Clicks：1286second

In recent years, in the field of micro-manufacturing, such as micro-machining, micro-manipulation, micro-assembly, etc., devices that can realize the precise positioning operation of micro-size parts or devices, such as clamping, handling, placing and releasing, are becoming more and more important.

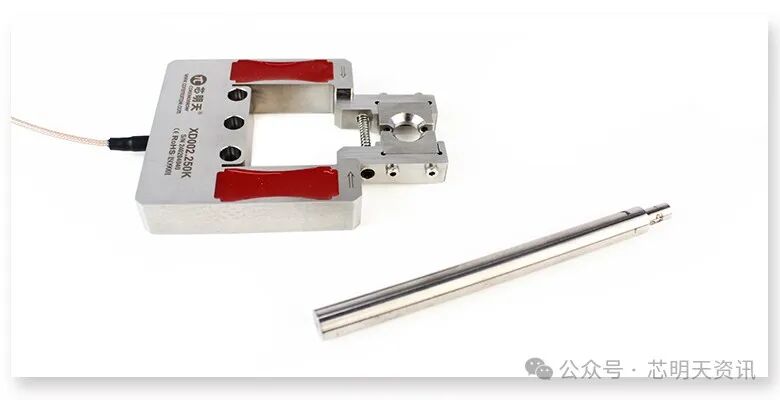

CoreMorrow piezo clamp/piezo wire clamp is a very suitable tool for clamping and releasing micrometer leads. It can clamp and release micrometer gold wire, copper wire, silver wire, etc. CoreMorrow piezo clamp is driven by piezo ceramic stacks and adopts flexible hinge mechanical amplification structure, which has the characteristics of high resolution, fast response speed and no friction. With the continuous iteration of technology, CoreMorrow has developed and designed a new type of piezo clamp with large load characteristics - XD002.250K shown in the following figure. As you can see from the figure, the clamping mouth of this type of piezo clamp/wire clamp is large, which can grip cylindrical metal parts, and the load is larger than previous products. The mechanism amplification device on both sides makes the displacement of this clamp larger.

Characteristics

X Motion

Displacement to ±190μm

Load capacity to 0.1kg

Unloaded resonant frequency to 660Hz

Technical Data

Model	XD002.250K
Active axis	X
Travel range (0~120V）	±150μm
Travel range(0~150V）	±190μm
Unloaded resonant frequency	660Hz
Load capacity	0.1kg
El. capacitance	4.85μF
Material	Stainless steel
Mass	215g（cable included）
Power-on jaw status	Close

Recommended Controller

E53.A Piezo Controller

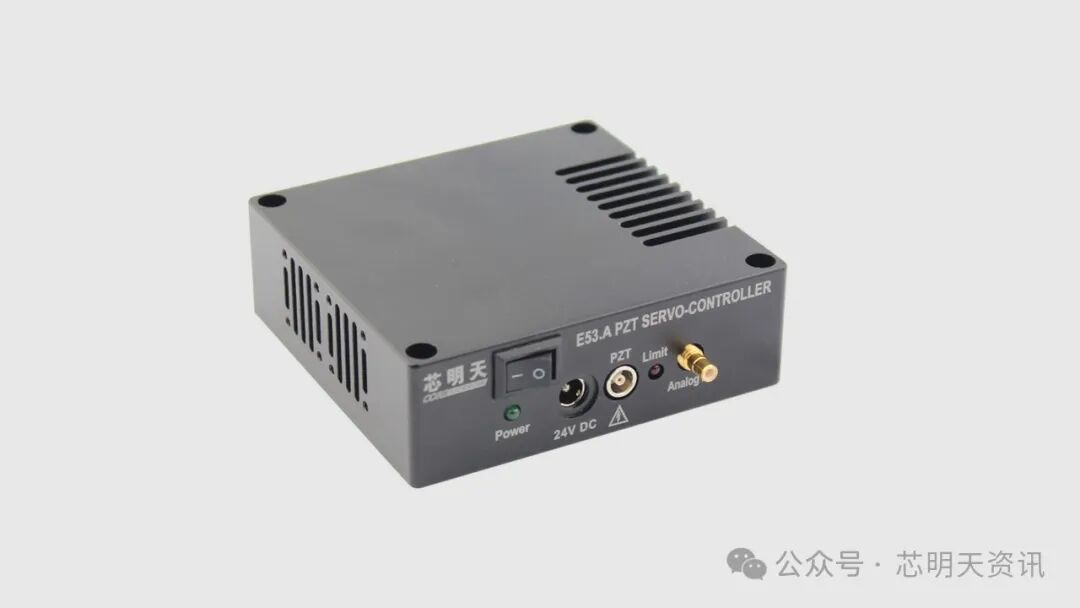

The E53.A is a single-channel open-loop piezo controller with analog inputs and a bandwidth of up to 10kHz. The XD002.250K clamp/clamp can be driven by the E53. A piezo controller for fast response times and operating stability. At the same time, the E53 series piezo controller is very compact, small size, which is easy to be integrated.

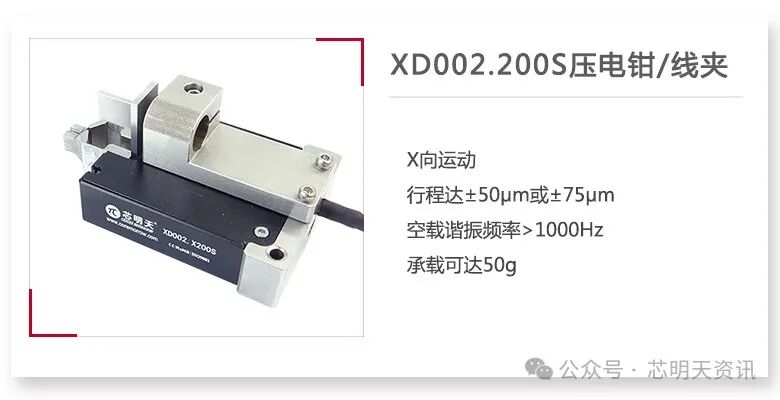

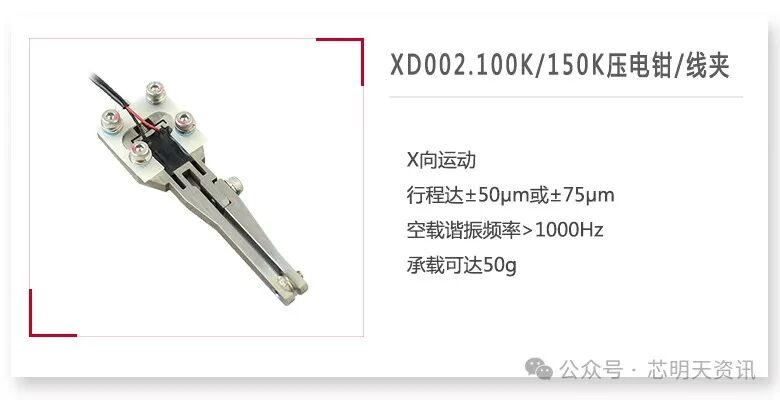

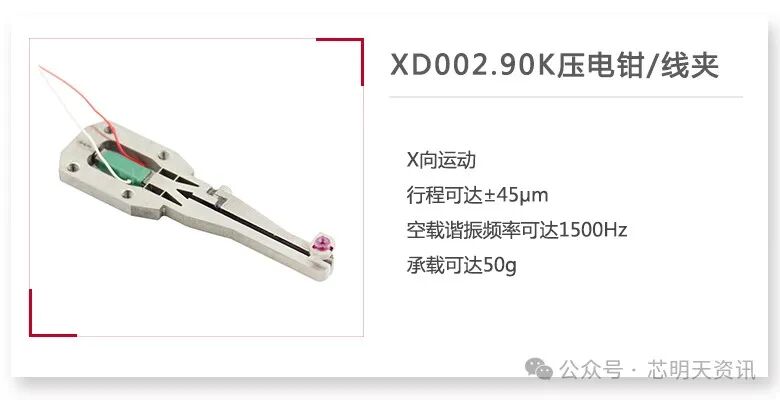

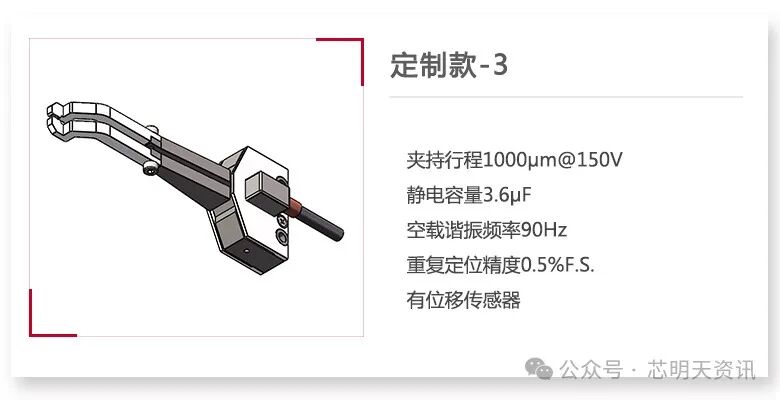

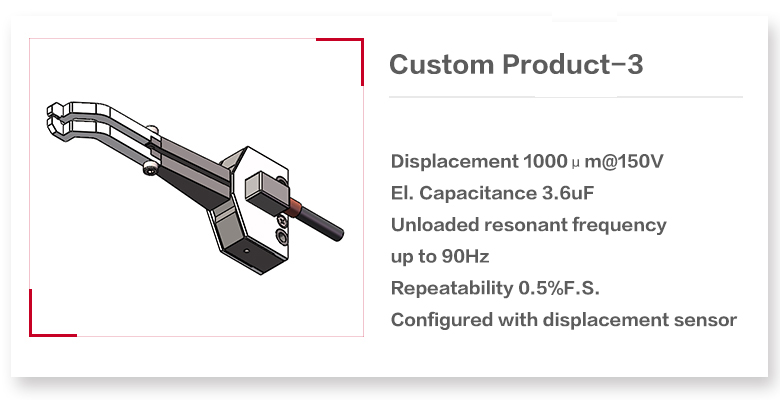

CoreMorrow Standard Piezo Clamps and Costom Products
