Customized Piezo Wire Clamps/Piezo ClampsCurrent Location：Product Homepage >> Amplified Piezo Actuator>>Customized Piezo Wire Clamps/Piezo Clamps

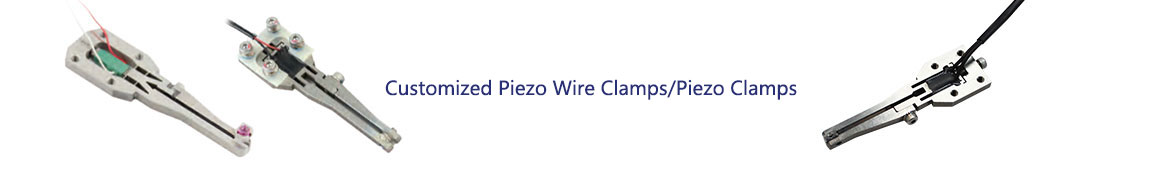

Piezo Wire Clamp Piezo Clamp
  • Introduction
  • Feedback
    Technical Data

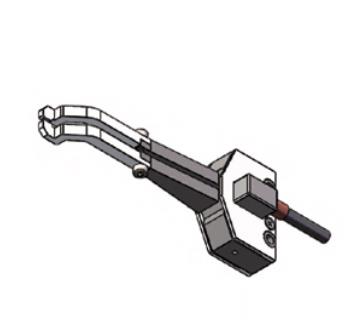

Appearance Piezo Wire Clamp/Piezo Clamp 1 Units
  Stroke 500μm@150V
El. capacitance 1.8μF
Unloaded resonant frequency
 		180Hz
Material Titanium alloy

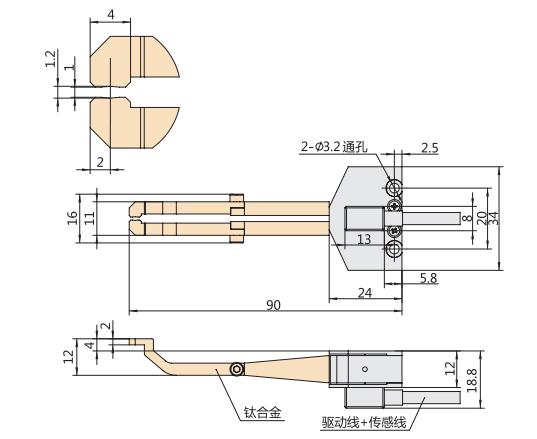

    Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    Technical Data

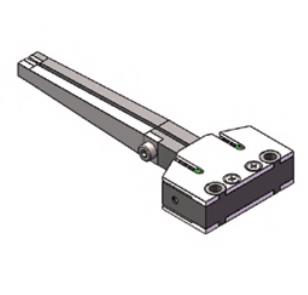

 Appearance Piezo Wire Clamp/Piezo Clamp 2 Units
  Stroke 1000μm@150V
El. capacitance 3.6μF
Unloaded resonant frequency
 		110Hz
Material Titanium alloy

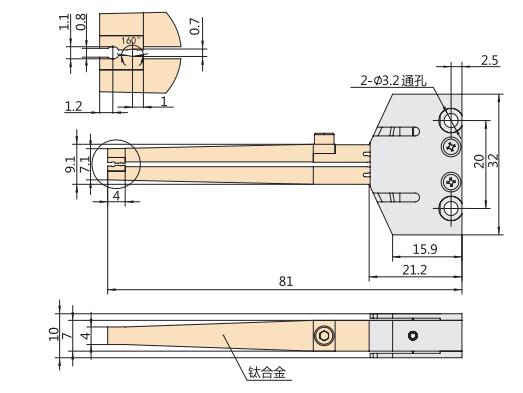

    Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    Technical Data

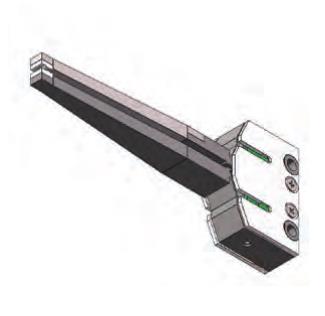

 Appearance Piezo Wire Clamp/Piezo Clamp 3 Units
  Stroke 1000μm@150V
El. capacitance 3.6μF
Unloaded resonant frequency
 		90Hz
Repeatability 0.5%F.S.
Sensor Yes
Material Titanium alloy

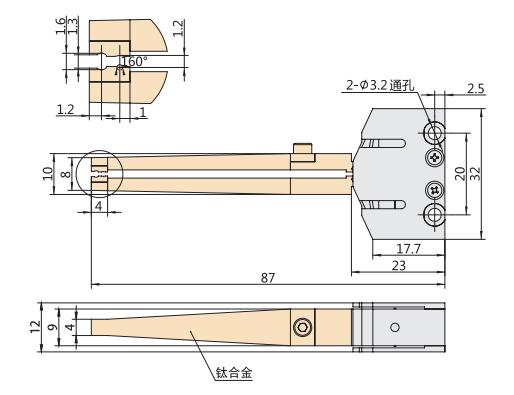

    Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
