P17 is an XY scanning stage specially developed for applications requiring large aperture and large displacement. The scanner adopts amplification mechanism and built-in high-reliability piezo actuators, which could realize the scanning range of 187.5μm. It has been widely used in the fields of precise positioning and scanning microscopy .

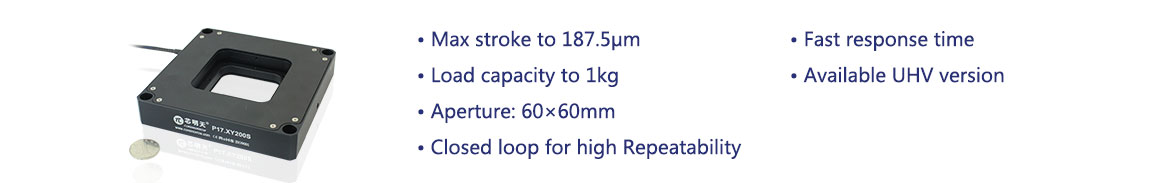

Characteristics


 Max stroke to 187.5μm

 Max load to 1kg

 Aperture:60×60mm

 Closed loop for high Repeatability

  Fast response time

 Available UHV version




Appearance

Moving-part

Amplified-driving

Large Aperture, Large Displacement

P17 is fast and high-precision scanning stage to could realize stroke of 187.5μm/axis. Excellent structural design without friction, high guiding precision, quick response time to 5ms.
Closed-loop version uses high-precision sensing feedback. 60×60mm aperture of the scanner is suitable for wafer positioning or micro-operation in industrial automation.

Freqency VS Load Curve

Application Cases-Wafer Positioning

P17 is used in conjunction with CoreMorrow piezo objective scanner for wafer positioning, the wafer could be driven to perform nano-scale precision positioning of 187.5μm displacement.


Applications


 Image processing and stabilization

 Interference

 Scanning microscopy

 Surface inspection

 Wafer positioning

 Micromanipulation



    Technical data

Models

S-Closed loop

K-Open loop

P17.XY200S

P17.XY200K

Untis

Active axes

XY



Drive control

2 driving channels

2 sensing channels



Travel range(0~120V)

150/axis

μm±10%

Max.travel range(0~150V)

187.5/axis

μm±10%

Integrated sensor

SGS/-



Aperture

60×60

mm

Closed/open loop resolution

5/1.5

nm

Closed-loop linearity

0.1/-

%F.S

Repeatability

0.05/-

%F.S

Pitch/Yaw/Roll

<15

μrad

Push/pull force capacity

40/15

N

Stiffness

X0.2/Y0.2

N/μm±20%

Unloaded resonant frequency

X240/Y400

Hz±20%

Closed/open-loop unloaded Step time

30/5

ms±20%

Closed-loop operating frequency(-3dB)

25(@28g load)/-

Hz±20%

Load capacity

Horizontal

1

kg

Vertical
0.07
Inverted
1

Electrical capacitance

3.6/axis

μF±20%

Material

Steel, Aluminum



Mass

660

g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF

Step

Specs Sheet
Manual
     3D diagram presentation
