P18.XY300 is XY axes motion piezo linear scanner. It adopts amplified mechanism and built-in high-reliability piezo actuators, which could realize high-speed scanning up to ±187.5μm. The aperture is Ø35mm, and various displacement strokes and specifications are available for selection. It is suitable for large-travel multi-dimensional scanning applications.
Features
|
|
|
|
|
|
|
|

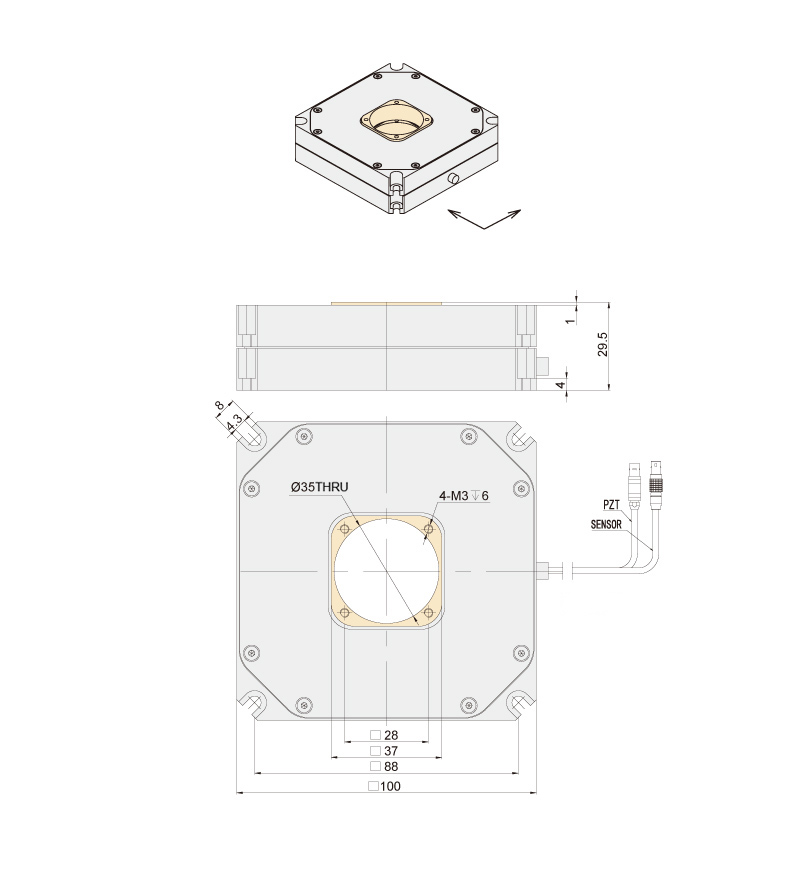

Appearance
|
Moving-part
|
Direct-driving
|
|
Large Stroke, Large Load Capacity
P18.XY300 is built with high-reliability PZT, which could achieve the displacement up to ±187.5μm. Closed-loop version could be selected to achieve excellent linearity and repeatability. |

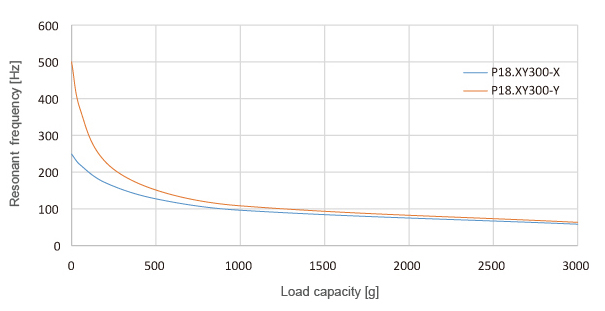

Freqency VS Load Curve
|
High Positioning Accuracy
|
Applications
|
|
|
|
|
|
|
|
| Technical data | |||
|
Models |
S-Closed loop K-Open loop |
P18.XY300S P18.XY300K |
Units |
|
Active axes |
X、Y |
|
|
|
Drive control |
3 driving channels |
|
|
|
Travel range(0~120V) |
±150/axis |
μm±10% |
|
|
Max.travel range(0~150V) |
±187.5/axis |
μm±10% |
|
|
Integrated sensor |
SGS/- |
|
|
|
Aperture |
Ø35 |
mm |
|
|
Closed/open loop resolution |
10/3 |
nm |
|
|
Closed-loop linearity |
0.2/- |
%F.S |
|
|
Repeatability |
0.15/- |
%F.S |
|
|
Pitch/Yaw/Roll |
<15 |
μrad |
|
|
Push/pull force capacity |
150/150 |
N |
|
|
Stiffness |
X0.5/Y0.5 |
N/μm±20% |
|
|
Unloaded resonant frequency |
X250/Y500 |
Hz±20% |
|
|
Closed/open-loop unloaded Step time |
50/10 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
10（@30g load） |
Hz±20% |
|
|
Load capacity |
Horizontal |
3 |
kg |
|
Vertical |
1.5 | ||
|
Inverted |
3 | ||
|
Electrical capacitance |
21.6/axis |
μF±20% |
|
|
Material |
Aluminum |
|
|
|
Mass |
380 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime. Technical data are measured by CoreMorrow E00/E01 series piezo controller.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
