P78 piezo microscope scanner is a Z-axis piezoelectric scanning stage designed for biomedical microscopy applications. It is easy to integrate into microscopic instruments.



Characteristics


 Z motion

 Travel range to 100μm

 Resolution to 1nm

 Aperture 120×70mm

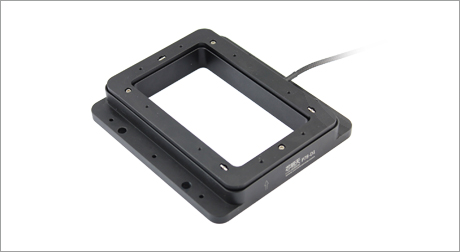

Appearance

Moving Part

Amplified-driving

Appearance

Moving Part


Applications


 Microscopic imaging

 Biotechnology

 Super-resolution microscopy

 3D imaging

 Interferometry

 Measurement techniques

 Autofocus systems etc

    Technical data

Models

S-Closed loop

K-open loop

P78.Z100S-D
P78.Z100K-D

Units

Active axis

Z



Drive control

1 driving channel 1 sensing channel



Travel range(0 ~+120 V)

80

µm±10%

Max.travel range(-20~+150 V)

100

µm±10%

Sensor type

SGS/-



Aperture size

120×70

mm

Resolution

3/1

nm

Linearity

0.3/-

%F.S.

Repeatability

0.1/-

%F.S.

Pitch/yaw/roll

<25



Push/pull force

120/15

N

Stiffness

1.5

N/μm±20%

Unloaded resonant frequency

400

Hz±20%

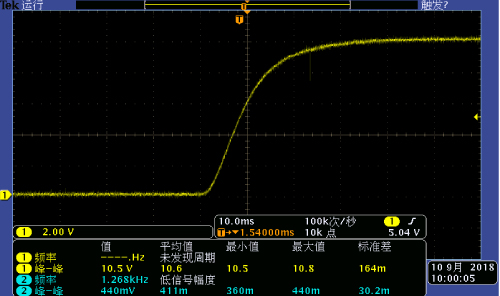

Unloaded step time

30/5

ms

Load capacity

Horizontal

1

kg

Vertical
0.03
Inverted
0.3

El.capacitance

5.4

μF±20%

Operating temperature

-20~80

Material

Steel, Al



Mass

560

g±5%

Cable length

1.5

m±10mm

Sensor/voltage connector

LEMO

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime. Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
     3D diagram presentation

推荐控制器

E01.D3 Piezo Controller

1 channel
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 291mA


E53 Piezo controller

1 channel
Software / Analog input
Open/closed loop
Ave.current: 60mA


E52 Piezo Controller

1 channel
Analog input
Open/closed loop
Ave.current: 300mA
