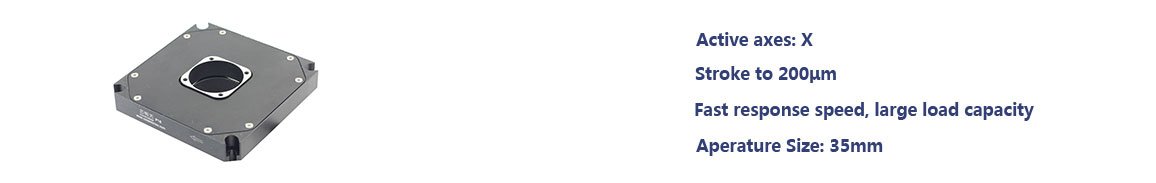

P18.X200 is X axis motion piezo linear scanner. It adopts amplified mechanism and built-in high-reliability piezo actuators, which could realize high-speed scanning up to 250μm. The aperture is Ø35mm, and various displacement strokes and specifications are available for selection. It is suitable for large-travel multi-dimensional scanning applications.
Features
|
|
|
|
|
|
|
|

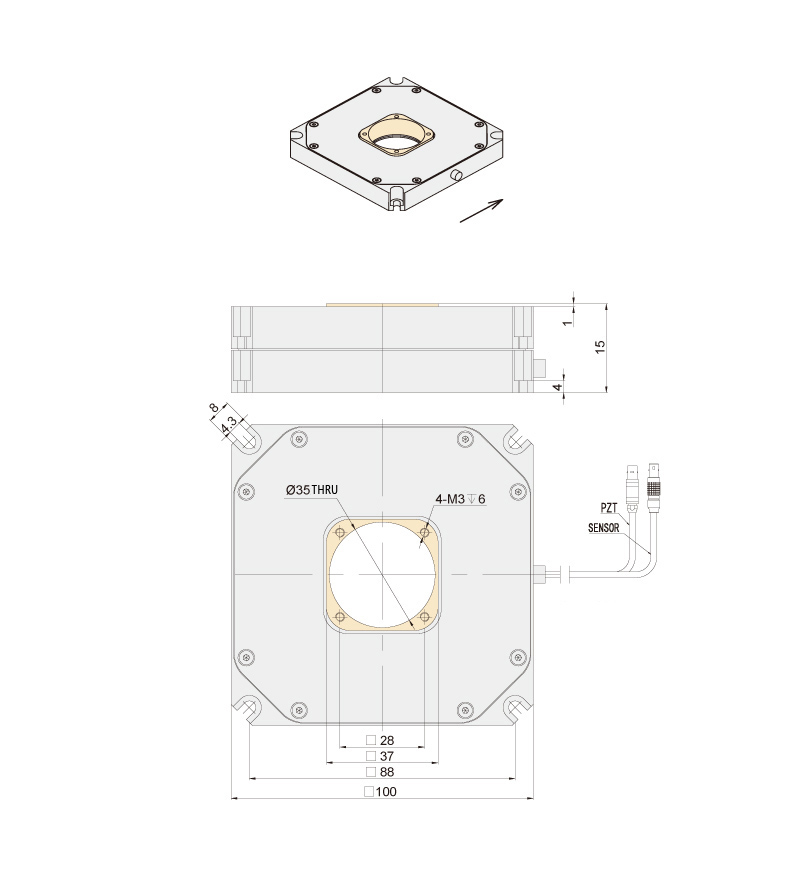

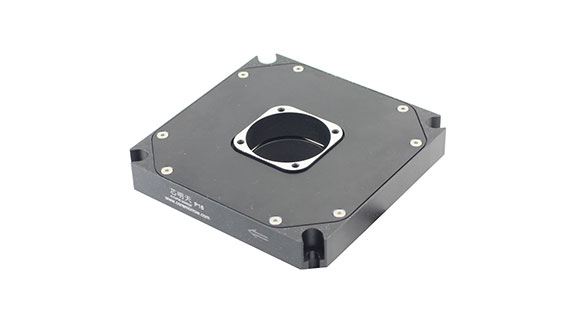

Appearance
|
Moving-part
|
Direct-driving
|
|
Large Stroke, Large Load Capacity
P18.X200 is built with high-reliability PZT, which could achieve the displacement up to 250μm. Closed-loop version could be selected to achieve excellent linearity and repeatability. |

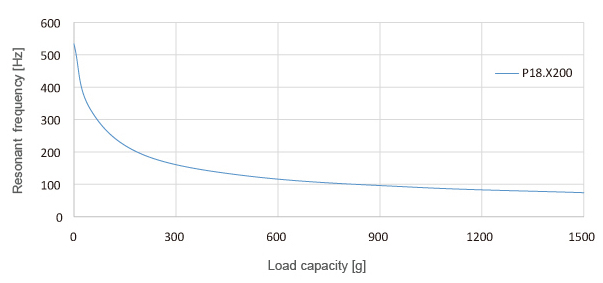

Freqency VS Load Curve
|
High Positioning Accuracy
|
Applications
|
|
|
|
|
|
|
|
| Technical data | |||
|
Models |
S-Closed loop K-Open loop |
P18.X200S P18.X200K |
Units |
|
Active axes |
X |
|
|
|
Drive control |
1 driving channel |
|
|
|
Travel range(0~120V) |
200 |
μm±10% |
|
|
Travel range(0~150V) |
250 |
μm±10% |
|
|
Integrated sensor |
SGS/- |
|
|
|
Aperture |
Ø35 |
mm |
|
|
Closed/open loop resolution |
7/2 |
nm |
|
|
Closed-loop linearity |
0.2/- |
%F.S |
|
|
Repeatability |
0.15/- |
%F.S |
|
|
Pitch/Yaw/Roll |
<10 |
μrad |
|
|
Push/pull force capacity |
60/20 |
N |
|
|
Stiffness |
0.3 |
N/μm±20% |
|
|
Unloaded resonant frequency |
500 |
Hz±20% |
|
|
Closed/open-loop unloaded Step time |
30/5 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
- |
Hz±20% |
|
|
Load capacity |
2 |
kg |
|
|
Electrical capacitance |
11 |
μF±20% |
|
|
Material |
Aluminum |
|
|
|
Mass |
200 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime. Technical data are measured by CoreMorrow E00/E01 series piezo controller.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
