S21 series piezoelectric rotation stage is a one-dimensional θz rotary stage with small size, a maximum rotation angle of 7.5mrad and a load capacity of 0.1kg, which can drive the lens to make precise rotary motion.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Appearance
|
Moving Part
|
Step Time-30ms
|
|
Small Size, High Resolution and Accuracy

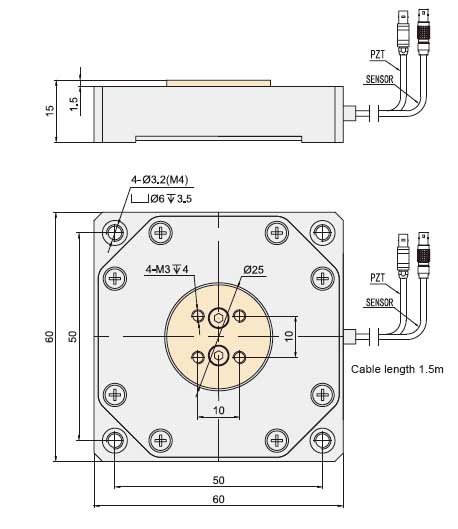

S21 adopts principle of mechanism amplification design, which can achieve maximum rotation of 7.5mrad. It is very compact, and its size is only 60×60×15mm. It is very easy to integrate into precision rotating equipment. |
Driving and Control
S21 rotation stage needs a piezo controller with 1-channel voltage output. The S21 closed-loop version can be equipped with E01 series closed-loop controller to realize θz high-precision rotary positioning control. |
Application Case-Precision Positionin S21 piezo rotation stage can be used with CoreTomorrow's any linear or tilting stage to form a multi-axis precision positioning operations.
|
|
Frequency and Load Curve
|
Applications
|
|
|
|
|
| Technical data | ||||
|
Models |
S - closed loop K - open loop |
S21.R7S |
S21.R7K |
Units |
|
Active axis |
θz |
θz |
|
|
|
Drive control |
θ1 driving channel 1 sensing channel |
θ1 driving channel |
|
|
|
Rotation angle(0~+120V) |
6（≈1240"） |
6（≈1240"） |
mrad±20% |
|
|
Rotation angle(0~+150V) |
7.5（≈1500"） |
7.5（≈1500"） |
mrad±20% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
0.2（≈0.04"） |
0.1（≈0.02"） |
μrad |
|
|
Closed-loop linearity |
0.5 |
- |
%F.S. |
|
|
Closed-loop repeatability |
0.2 |
- |
%F.S. |
|
|
Push/pull force |
10/5 |
10/5 |
N |
|
|
Stiffness in motion direction |
1 |
1 |
N/μm±20% |
|
|
Unloaded resonant frequency |
1.1 |
1.1 |
kHz±20% |
|
|
Unloaded step time |
30 |
1.5 |
ms±20% |
|
|
Load capacity |
0.1 |
0.1 |
kg |
|
|
El.capacitance |
1.8 |
1.8 |
μF±20% |
|
|
Material |
Aluminum |
Aluminum |
|
|
|
Mass |
105 |
105 |
g±5% |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
