S38 Fast Steering Mirror, Piezo tip tilt platform (Discontinued)Current Location:Product Homepage >> Fast Steering Mirrors>>S38 Fast Steering Mirror, Piezo tip tilt platform (Discontinued)
  • Introduction
  • Feedback

Characteristics


 θx, θy tilt

 Tilt angle: 1.2 or 2.4mrad

 Small size, outer diameter is only 20mm

 Optional closed-loop sensor

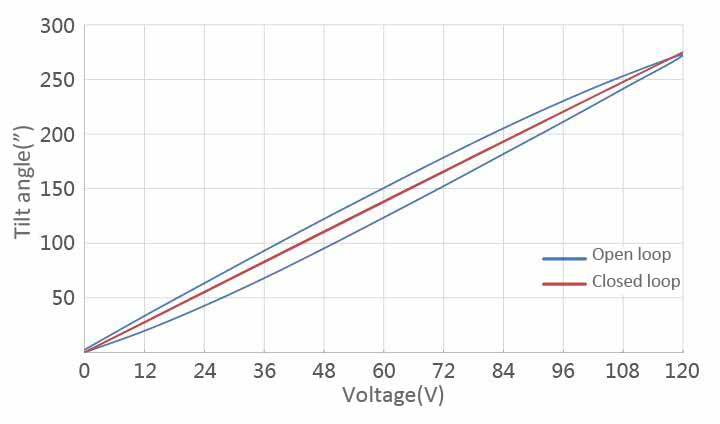

S38.T1 Tilt Angle vs Voltage

S38.T1 Linearity

    Technical Data

Type

S38.T1S
S38.T1K

S38.T2S
S38.T2K

Units

Active axes

θx、θy

θx、θy



Drive control

3 driving channels

2 sensing channels

3 driving channels

2 sensing channels



Tilt angle(0~100V)

1 or ±0.5(≈±103")

2 or ±1(≈±206")

mrad/axis±20%

Tilt angle(0~120V)

1.2 or ±0.6(≈±123")

2.4 or ±1.2(≈±247")

mrad/axis±20%

Integrated sensor

SGS/-

SGS/-



Resolution

0.03(<0.01″)

/0.01(<0.01″)

0.07(≈0.01″)

/0.02(<0.01″)

μrad

Linearity

0.3/-

0.4/-

%F.S

Repeatability

0.1/-

0.2/-

%F.S

Unloaded resonant frequency

7000

2000

Hz±20%

Closed-loop operating frequency

400(@100g load)

-

Hz±20%

El. capacitance

1.6

3.6

μF/axis±20%

Material

Steel, cuprum

Steel, cuprum



Mass(with no cable)

50

60

g±5%

Tilt angle vs voltage curve


Linearity curve



    Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

S38.T1

S38.T2

Specs Sheet

S38.T1

S38.T2

Manual

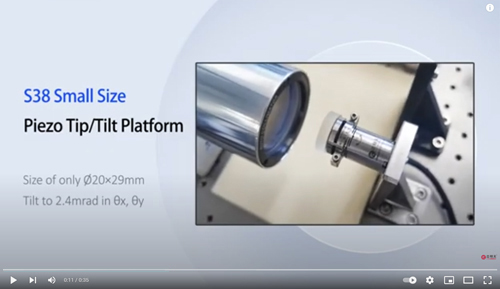

    Product Motion Video

     三维图演示
