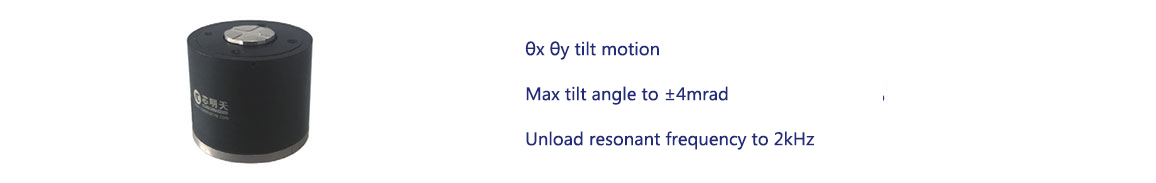

Anti-vibration Piezo Fast Steering MirrorsCurrent Location:Product Homepage >> Fast Steering Mirrors>>Anti-vibration Piezo Fast Steering Mirrors
  • Introduction
  • Controllers
  • Feedback
    Technical data

Active axis

θx θy

Tilt angle0~100V

±4mrad±20%

Sensor type

SGS

Unloaded resonant frequency

2000Hz±20%

Resonant frequency@Ø12×8 mirror

1450Hz±20%

El.capacitance

3.6μF/axis±20%

Operating frequency/Tilt angle

1000Hz/±0.4mrad600Hz/±0.9mrad,±20%

Material

Titanium alloy

Vibration grade

10g

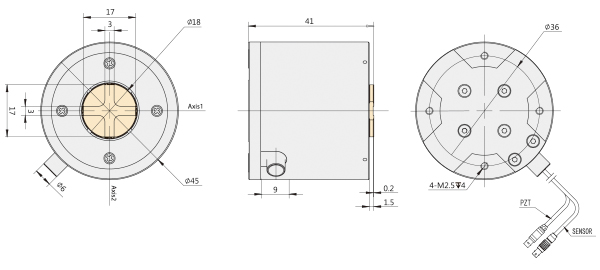

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
