S30 θx θy Fast Steering Mirrors, Max to 3mradCurrent Location:Product Homepage >> Fast Steering Mirrors>>S30 θx θy Fast Steering Mirrors, Max to 3mrad
  • Introduction
  • Controllers
  • Feedback

S30 is θx, θy piezo tip/tilt platform, which is designed for highly-dynamic applications, with unloaded resonance frequency up to 17kHz.


Features


 θx θy tilt

  Nanoradian resolution

  Unloaded resonant frequency to 17kHz

 Open loop

 High-dynamic




θx θy tilt motion

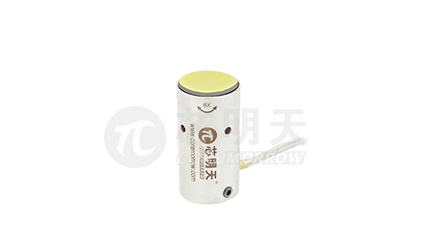

Appearance

Moving part


Applications


 Image processing and stabilization

 Interlaced scanning, jitter

  Laser scanning

 Optical Filter / Switch

 Laser Micromachining

 Beam Deflection

 Adaptive optics, image stabilization

 Interference

    技术参数

Type

S - closed loop
K - open loop

S30.T2SF
S30.T2KF

S30.T2SY
S30.T2KY

S30.T1KY

Units

Active axes

θx、θy

θx、θy

θx、θy

Drive control

3driving channel,2 sensing channel

3driving channel,2 sensing channel

3driving channel



Integrated sensor

SGS/-

SGS/-

-

Tilt angle(0~120V)

3/±1.5

≈±309″)

3/±1.5

≈±309″)

1.5/±0.75

≈±154 ″)

mrad±10%

Resolution

0.1(≈0.02″)/
0.03(<0.01″)

0.1(≈0.02″)/
0.03(<0.01″)

0.02(<0.01″)

μrad

Unloaded resonant frequency

17

15

15

kHz±20%

Resonant frequency
@ loading Ø12.5×3mm mirror

14

10

10

kHz±20%

Linearity

0.2/-

0.2/-

-

%F.S.

Repeatability

0.1/-

0.1/-

-

%F.S.

枢轴点至平台表面距离

4.2

4.2

4.2

mm±0.2mm

El. capacitance

1.6//axis

1.6//axis

0.7//axis

μF±10%

Material

Titanium, steel

Titanium, steel

Titanium, steel

Mass(not include cable)

35

30

20

g±5%

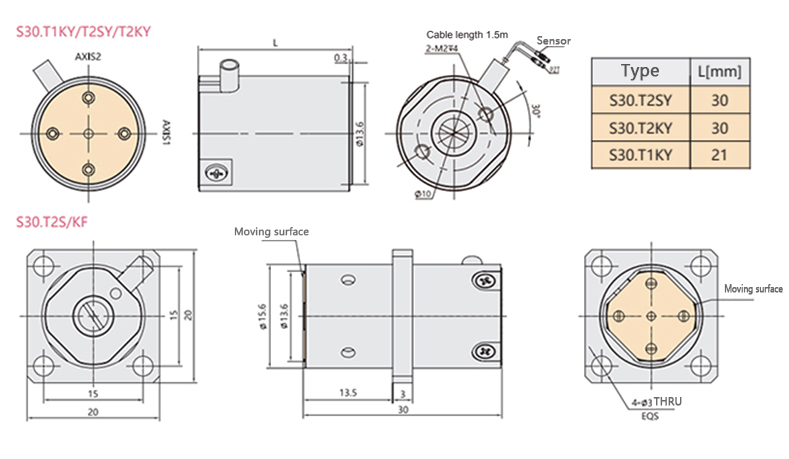

    Drawings(Click on the picture to enlarge it)
    Downloads
Auto CAD PDF


Step


S30.T2SF/KF


Specs Sheet

S30.T2SF/KF

S30.T2SY/KY

S30.T1

Manual


推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
