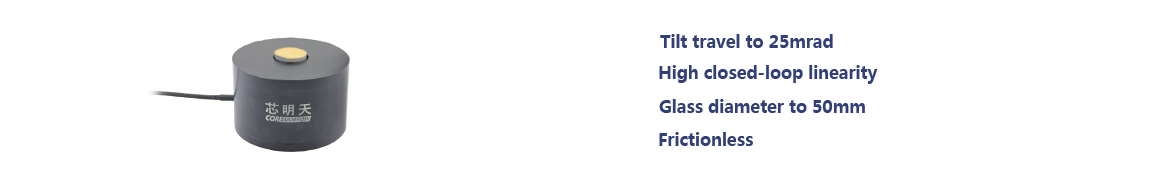

P31 piezo tip/tilt platform can offer a beam deflection angle of 50 mrad. This deflection system is based on a proven parallel kinematics design with two axes of motion being perpendicular coplanar axes with common fixed points, featuring high resolution, high Positioning accuracy and so on.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
θx θy tilt motion
|
Moving part
|

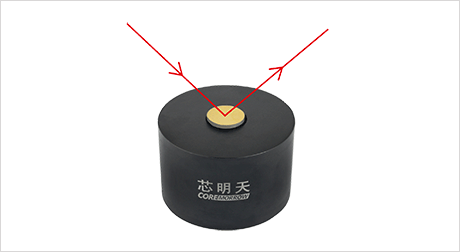

Optional mirror adapter
|
|
Driving
|
Frequency and Load Curves
|

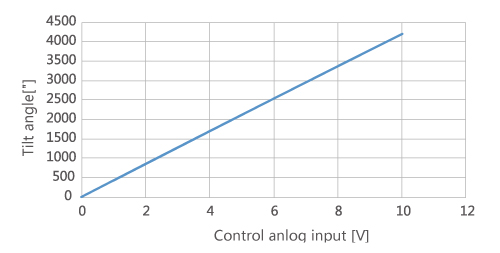

Closed-loop Curve
|
|
High Stability Linearity Dynamics
P31 is equipped with high-reliability piezo actuators with preloaded force that are integrated into a mature hinge guidance system that has been analyzed by FEA. The piezo actuators are stacked co-fired piezoelectric ceramics that provide better stability and reliability. |

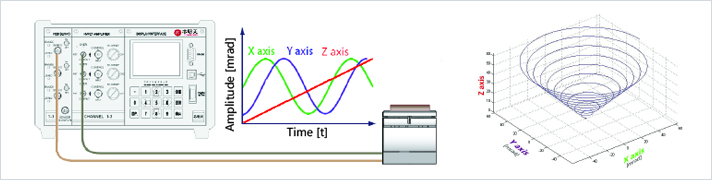

Driving Principle Piezo Tip/Tilt Platform(2-axis motion) is based on parallel kinematic design with coplanar axis and moving platform. 4 piezo actuators are placed at a 90° angle interval, paired differential control distribution. 2 pairs of differentially driven actuators provide the highest achievable angular stability over a wide temperature range. Its tilt motion is achieved by two pairs of piezo actuators in a push-pull motion, controlled by a bridge connection circuit.
|
Applications
|
|
|
|
|
| Technical data | |||
|
Models |
S - closed loop |
P31.T25S P31.T25K |
Units |
|
Active axis |
θx, θy |
|
|
|
Tilt angle（0~120V） |
20（≈4120"）or ±10（≈±2060"） |
mrad±20% |
|
|
Tilt angle（0~150V） |
25（≈5160"）or ±12.5（≈±2580"） |
mrad±20% |
|
|
Sensor type |
SGS/- |
|
|
|
Resolution |
2（≈0.4"）/1（≈0.2"） |
μrad |
|
|
Linearity |
0.5/- |
%F.S. |
|
|
Repeatability |
0.2/- |
%F.S. |
|
|
Unloaded resonant frequency |
0.4 |
kHz±20% |
|
|
Unloaded step time |
50/3.2 |
ms±20% |
|
|
Unloaded operating frequency |
10% travel |
50 |
Hz±20% |
|
100% travel |
15 |
||
|
El.capacitance |
7.2/axis |
μF±20% |
|
|
Material |
Aluminum |
|
|
|
Mass |
700 |
g±5% |
|
|
Platform length L |
63 |
mm±0.1 |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
