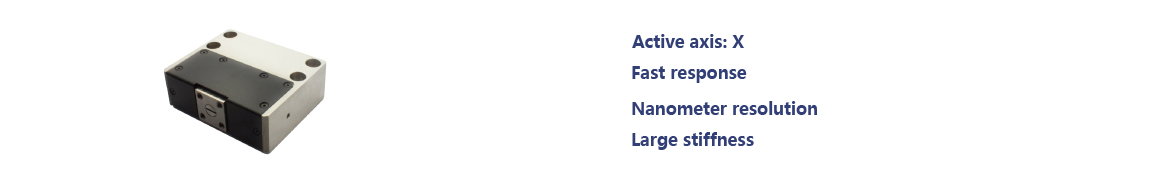

Fast Tool Positioning Stage is designed for ultra-precision turning. It has the characteristics of high frequency, large stiffness, high precision to drive the stage to quickly feed in the direction of motion, achieving precision machining of complex surface parts or structures.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Dust and Droplet Proof On Request
P92 is dust- and drip-resistant, allowing it to work in humid environments. The stage body material is made of stainless steel to ensure the stability during processing, the structure is stable and reliable, and the machining accuracy is not affected by the vibration. |
Large Blocking Force Blocking force of piezo actuator in fast tool positioning stage is several times of other piezo actuator in piezo stage.
|
Closed loop Resolution Unlike vibration machining, the tool position could be feedback controlled by sensor for nanometer resolution.
|
|
Sensor P92 could be optionally equipped with SGS sensor, LVDT sensor or CAP sensor to eliminate the hysteresis and creep of piezo actuator, input control voltage is linear with output displacement.
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical data | ||||
|
Models |
S-Closed loop K-Open loop |
P92.X30S |
P92.X30K |
Units |
|
Travel range(0~120V) |
24 |
24 |
μm±10% |
|
|
Travel range(0~150V) |
30 |
30 |
μm±10% |
|
|
Drive control |
1 driving channel 1 sensing channel |
1 driving channel |
|
|
|
Integrated sensor |
SGS |
- |
|
|
|
Resolution |
1 |
0.5 |
nm |
|
|
Closed-loop linearity |
0.1 |
- |
%F.S. |
|
|
Repeatability |
0.05 |
- |
%F.S. |
|
|
Pitch/Yaw/Roll |
<10 |
<10 |
μrad |
|
|
Push/pull force capacity |
300/100 |
300/100 |
N |
|
|
Stiffness |
10 |
10 |
N/μm±20% |
|
|
Unloaded resonant frequency |
1.8 |
1.8 |
kHz±20% |
|
|
Unloaded Step time |
5 |
3 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
- |
110（@500g load） |
Hz±20% |
|
|
Load capacity |
0.3 |
0.3 |
kg |
|
|
lectrical capacitance |
7.2 |
7.2 |
μF±20% |
|
|
Material |
Steel, Aluminum |
Steel, Aluminum |
|
|
|
Mass |
1450 |
1450 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
