P60.XYZ200 Piezo Nanopositioning StageCurrent Location:Product Homepage >> XYZ Piezo Nanopositioner>>P60.XYZ200 Piezo Nanopositioning Stage
  • Introduction
  • Controllers
  • Feedback

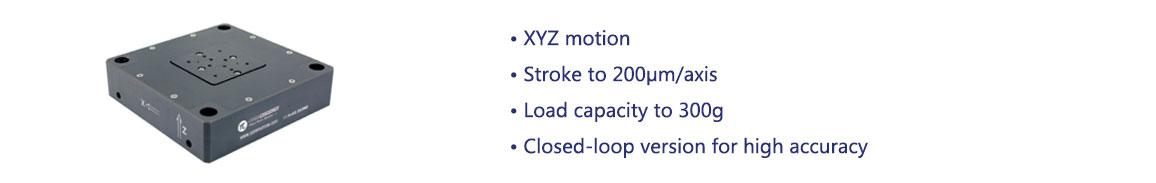

Characteristics


 XYZ motion

 Stroke to 200μm/axis

 Closed-loop version is more accurate

    Technical data

Type

P60.XYZ200S

P60.XYZ200K

Units

Active axes

XYZ



Drive control

4 driving channels 3 sensing channels



Driving channels

4



Travel range(0~120V)

160

µm±10%

Max.travel range(0~150V)

200

µm±10%

Integrated sensor

SGS



Resolution

5.5/2

nm

Closed-loop linearity

0.2

%F.S.

Repeatability

0.1

%F.S.

Unloaded resonant frequency

270

Hz±20%

Resonant frequency@100g

110

Hz±20%

Unloaded resonant frequency@50% travel range

20

Hz±20%

El. capacitance

14/14/7.2

μF±20%

Material

Aluminum



Operating temperature

-20~80

Load capacity

Horizontal

0.3

kg

Vertical
0.1
Inverted
0.1

Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

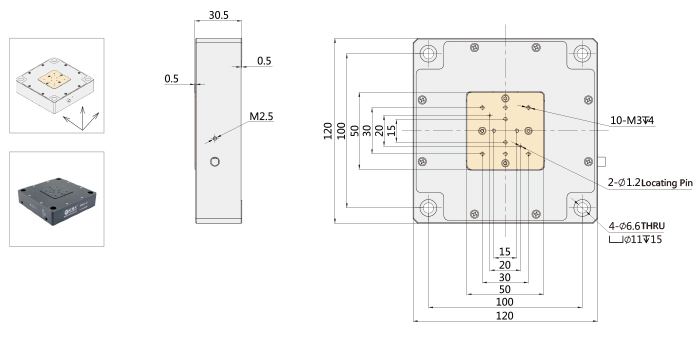

    Drawings(Click on the picture to enlarge it)

    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

推荐控制器

E01.D3 Piezo Controller

3 channels
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 58mA


E70 Piezo controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 70mA


E53 Piezo Controller

3 channels
Software / Analog input
Open/closed loop
Ave.current: 60mA
