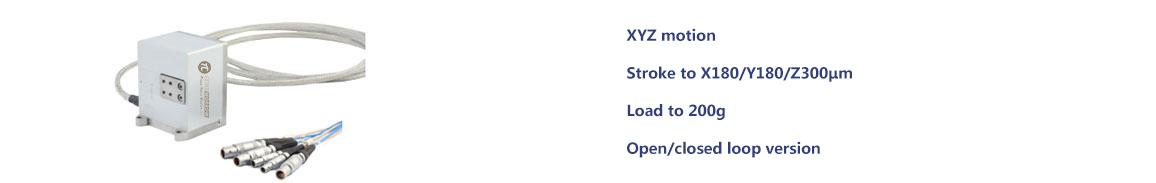

Characteristics
|
|
|
|
|
| Technical data | |||
|
Models |
P11.XY200Z300S P11.XY200Z300K |
Units |
|
|
Active axes |
XYZ |
|
|
|
Drive control |
3 driving channels 3 sensing channels |
|
|
|
Driving source |
Piezo Stack |
|
|
|
Travel range(0~120V) |
X130/Y130/Z250 |
µm±10% |
|
|
Max.travel range(0~150V) |
X180/Y180/Z300 |
µm±10% |
|
|
Integrated sensor |
SGS/- |
|
|
|
Closed/open loop resolution |
XY4.5/1.5，Z8.5/2.5 |
nm |
|
|
Linearity |
0.4 |
%F.S. |
|
|
Repeatability |
0.1 |
%F.S. |
|
|
Unloaded resonant frequency |
X200/Y180/Z200 |
Hz±20% |
|
|
Closed-loop operating frequency（-3dB） |
40（@50g load）/- |
Hz±20% |
|
|
Load capacity |
Horizontal |
0.2 |
kg |
|
Vertical |
0.03 | ||
|
Inverted |
0.05 | ||
|
Electrical capacitance |
X2.2/Y2.2/Z7 |
μF±20% |
|
|
Material |
Aluminum, steel |
||
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.

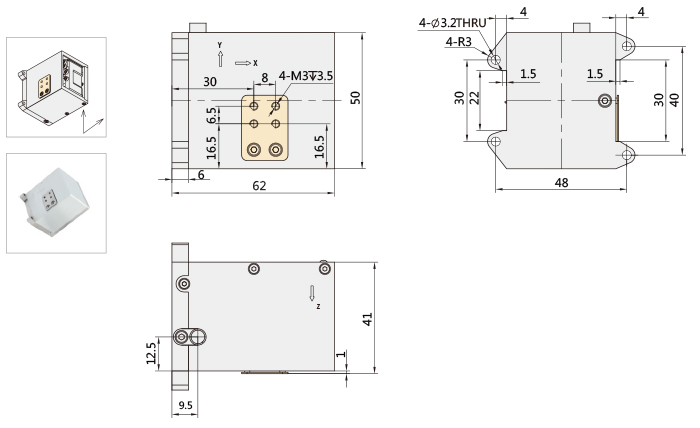

| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
