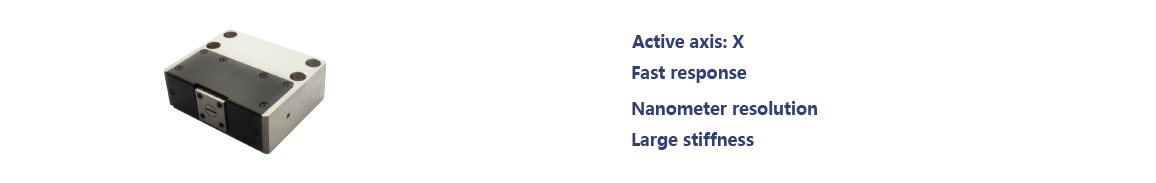

P92.X30 Fast Tool Positioning Stage, X Direction, Stroke to 30 µmCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P92.X30 Fast Tool Positioning Stage, X Direction, Stroke to 30 µm
  • Introduction
  • Controllers
  • Feedback

Fast Tool Positioning Stage is designed for ultra-precision turning. It has the characteristics of high frequency, large stiffness, high precision to drive the stage to quickly feed in the direction of motion, achieving precision machining of complex surface parts or structures.


Characteristics


 Ultra high precision

 Large load capacity

 Quick response time

 High stiffness

 Travel range to 30µm





Dust and Droplet Proof On Request

P92 is dust- and drip-resistant, allowing it to work in humid environments. The stage body material is made of stainless steel to ensure the stability during processing, the structure is stable and reliable, and the machining accuracy is not affected by the vibration.
The stiffness of the fast tool positioning stage is much greater than the conventional piezo nanopositioning stage.

Large Blocking Force

Blocking force of piezo actuator in fast tool positioning stage is several times of other piezo actuator in piezo stage.

Closed loop Resolution

Unlike vibration machining, the tool position could be feedback controlled by sensor for nanometer resolution.

Sensor

P92 could be optionally equipped with SGS sensor, LVDT sensor or CAP sensor to eliminate the hysteresis and creep of piezo actuator, input control voltage is linear with output displacement.


Applications


 Diamond bit feed

 Precision processing

 High speed tool control

 Precision machining and grinding

 Workpiece positioning

 FTS fast tool servo turning system



    Technical data

Models

S-Closed loop

K-Open loop

P92.X30S

P92.X30K

Units

Travel range(0~120V)

24

24

μm±10%

Travel range(0~150V)

30

30

μm±10%

Integrated sensor

SGS

-



Resolution

1

0.5

nm

Closed-loop linearity

0.1

-

%F.S.

Repeatability

0.05

-

%F.S.

Pitch/Yaw/Roll

<10

<10

μrad

Push/pull force capacity

300/100

300/100

N

Stiffness

10

10

N/μm±20%

Unloaded resonant frequency

1.8

1.8

kHz±20%

Unloaded Step time

5

3

ms±20%

Closed-loop operating frequency(-3dB)

-

110(@500g load)

Hz±20%

Load capacity

0.3

0.3

kg

lectrical capacitance

7.2

7.2

μF±20%

Material

Steel, Aluminum

Steel, Aluminum



Mass

1450

1450

g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Recommended Controller


E01.D1 Servo Piezo Controller


E01.A1 Piezo Amplifier


E52 Open-loop/Servo Piezo Controller

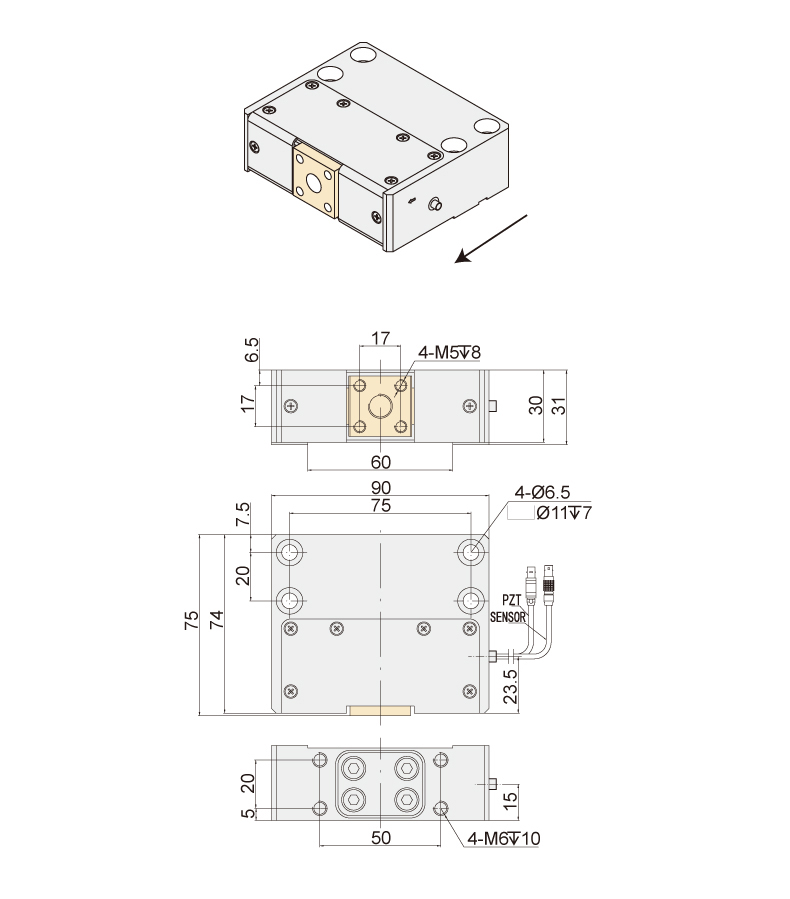

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
     3D diagram presentation

推荐控制器

E01.D3 Piezo Controller

1 channel
Software / Analog input / Rotary konb
Open/closed loop
Ave.current: 291mA


E53 Piezo controller

1 channel
Software / Analog input
Open/closed loop
Ave.current: 60mA


E52 Piezo Controller

1 channel
Analog input
Open/closed loop
Ave.current: 300mA
