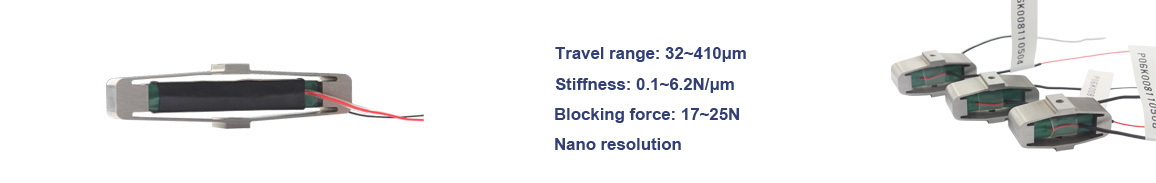

The amplified piezo actuator is an actuator that amplifies and outputs the displacement generated by low-voltage piezo stacks preloaded by a mechanical amplifying structure.

The amplified structure is an mechanical shell, and its material is generally steel. In addition to providing optimized pre-tightening force for piezo stacks, it also protects piezo stacks from tensile forces that can cause irreversible or even fatal damage to piezo stacks. The mechanical amplified structure also provides the user with mechanical interface, easy to integrate.

Characteristics

Customizable P06 series amplified piezo actuators can be customized for size, parameters, etc. For example, connect two P06 actuators in parallel to obtain large displacement, or perform clamping, switching operations, etc.

Dynamic operation For dynamic conditions, the system is required to be able to generate or handle large accelerations, and the actuator needs to have fast response and reliability. CoreMorrow mechanism amplifier actuator uses high-performance piezoelectric stack ceramics with high resonance frequency, fast response speed, high reliability, high stability, etc. In addition, in dynamic application, please consider the loading situation.

Easy to installment The amplified piezo actuator has mechanical installation interface, which is convenient for users to install.

Principle

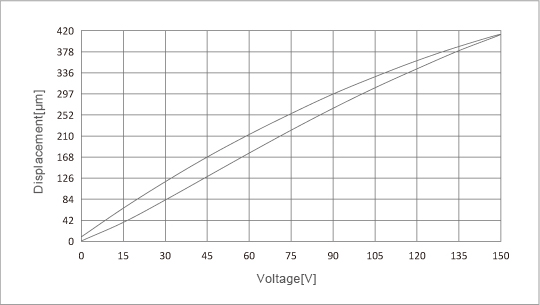

Open Loop Curve

40A5（32μm travel）

60A5（48μm travel）

Z axis moiton, optimized elliptical mechanism

Piezo stack actuators produce deformation displacement along the main axis, while the elliptical mechanical structure amplifies the displacement along the short axis direction, that is, the mechanism amplifies the piezoelectric actuator to extend the piezoelectric ceramic laterally by the principle of mechanism amplification. The long displacement is amplified to the axial displacement output. The material of the elliptical mechanical structure is generally steel. In addition to providing an optimized pre-tightening force for the piezoelectric stacked ceramics, it also protects the stacked ceramics from being subjected to tensile force. The tensile force affects the piezoelectric stacked ceramics. Produce irreversible or even fatal damage. The force and displacement of the mechanism-amplified actuator is much greater than that of the direct-drive actuator or other piezo bender.

Applications

Optometry：

Mechanics:

Fluidics:

series

Technical data
Models	Max/stroke [μm]±15%*	Blocked force [N]	Stiffness [N/μm]±20%	El. capacitance [μF]±20%	Unloaded resonant frequency [Hz]±20%	Weight [g]±5%	Specs Sheet Download	step
40A5	41/32	125	6.2	1.8	4100	14
60A5	66/48	80	1.7	1.8	2700	29
100A5	100/80	120	2.1	3.6	1900	-		/
100A7	100/80	148	1.2	7.2	2000	-
19071	100/80	500	5	10.8	1600	-
150A5	147/120	65	0.7	3.6	1300	22		/
200A5	217/160	40	0.4	3.6	800	-		/
400A5	410/320	27	0.1	3.6	500	-

*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

40A5 Drawings（Click on the picture to enlarge it）

60A5 Drawings（Click on the picture to enlarge it）

100A5 Drawings（Click on the picture to enlarge it）

100A7 Drawings（Click on the picture to enlarge it）

19071 Drawings（Click on the picture to enlarge it）

150A5 Drawings（Click on the picture to enlarge it）

200A5 Drawings（Click on the picture to enlarge it）

400A5 Drawings（Click on the picture to enlarge it）

Downloads Auto CAD PDF Manual
