The amplified piezo actuator is an actuator that amplifies and outputs the displacement generated by low-voltage piezo stacks preloaded by a mechanical amplifying structure.
The amplified structure is an mechanical shell, and its material is generally steel. In addition to providing optimized pre-tightening force for piezo stacks, it also protects piezo stacks from tensile forces that can cause irreversible or even fatal damage to piezo stacks. The mechanical amplified structure also provides the user with mechanical interface, easy to integrate.
Characteristics
Z axis moiton |
Travel range to 500μm |
Quick response |
Principle |

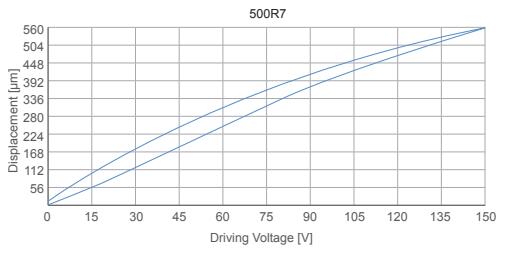

Open Loop Curve |
Easy to installment |
Customizable P06 series amplified piezo actuators can be customized for size, parameters, etc. For example, connect two P06 actuators in parallel to obtain large displacement, or perform clamping, switching operations, etc. |
Dynamic operation For dynamic conditions, the system is required to be able to generate or handle large accelerations, and the actuator needs to have fast response and reliability. CoreMorrow mechanism amplifier actuator uses high-performance piezoelectric stack ceramics with high resonance frequency, fast response speed, high reliability, high stability, etc. In addition, in dynamic application, please consider the loading situation. |
Easy to installment The amplified piezo actuator has mechanical installation interface, which is convenient for users to install. |

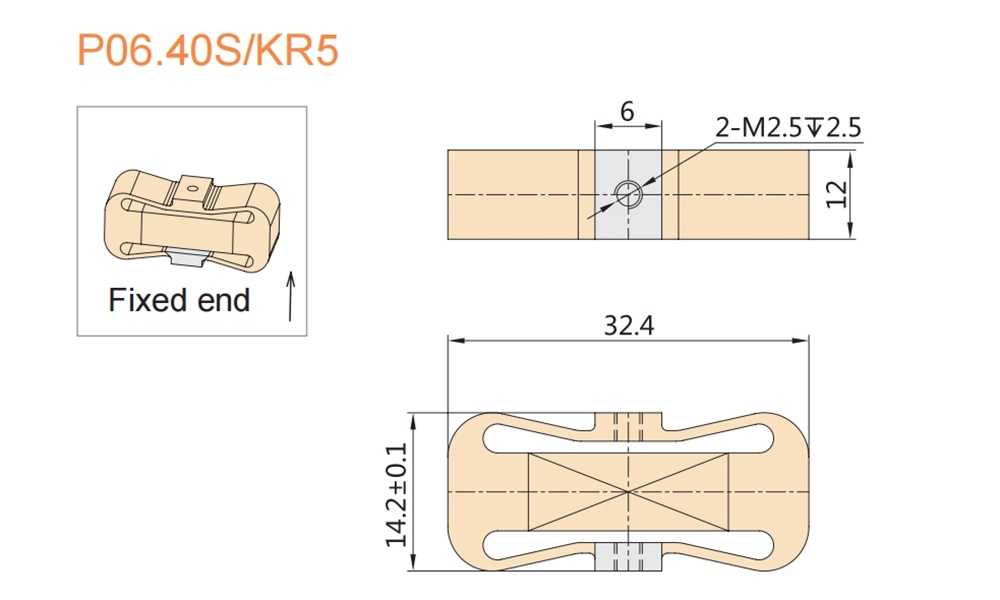

40R5(32μm travel) |

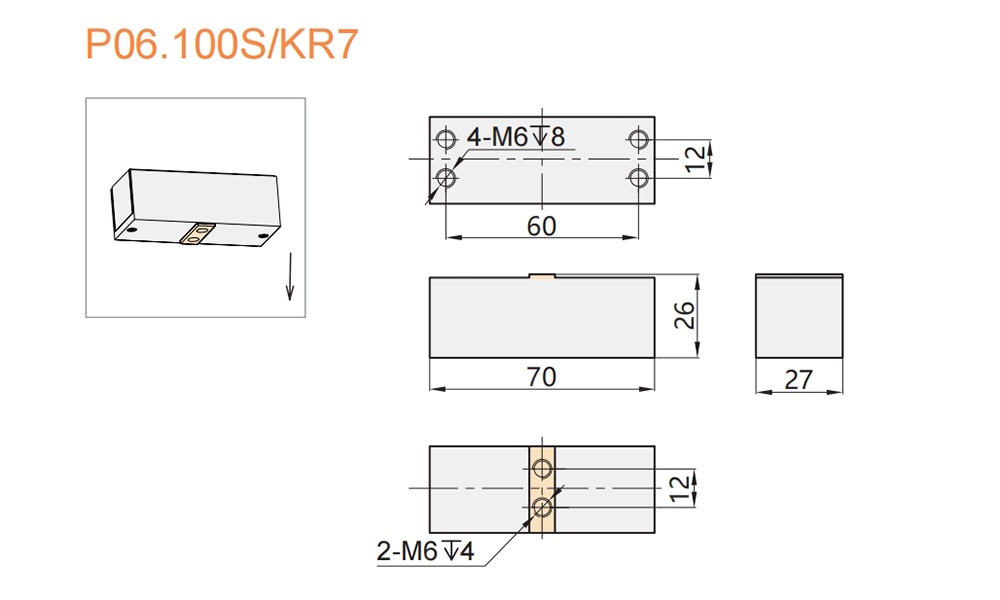

Closed-loop 100R7S (80μm travel) |
Z axis moiton, optimized elliptical mechanism
Piezo stack actuators produce deformation displacement along the main axis, while the elliptical mechanical structure amplifies the displacement along the short axis direction, that is, the mechanism amplifies the piezoelectric actuator to extend the piezoelectric ceramic laterally by the principle of mechanism amplification. The long displacement is amplified to the axial displacement output. The material of the elliptical mechanical structure is generally steel. In addition to providing an optimized pre-tightening force for the piezoelectric stacked ceramics, it also protects the stacked ceramics from being subjected to tensile force. The tensile force affects the piezoelectric stacked ceramics. Produce irreversible or even fatal damage. The force and displacement of the mechanism-amplified actuator is much greater than that of the direct-drive actuator or other piezo bender.
Applications
Optometry:
Probe scanning |
optical lens positioning |
optical switch |
micro-scanning |
wafer testing |
astronomy |
focus positioning |
laser cavity tuning |
fiber coupling and deformation |
modulator |
chopper, interferometer |
PDP Crystal cutting |
FBG (fiber Bragg grating) deformation |
|
|
Mechanics:
Fiber stretching |
tool positioning |
pick and place tools |
diamond turning |
elliptical piston machining |
damping, dynamic control |
device fatigue monitoring |
NDT |
new generation ultrasonic or sonic vibration |
|
|
Fluidics:
Proportional valves |
inkjet technology |
syringes |
droplet generators |
flow measurement technology |
|
|

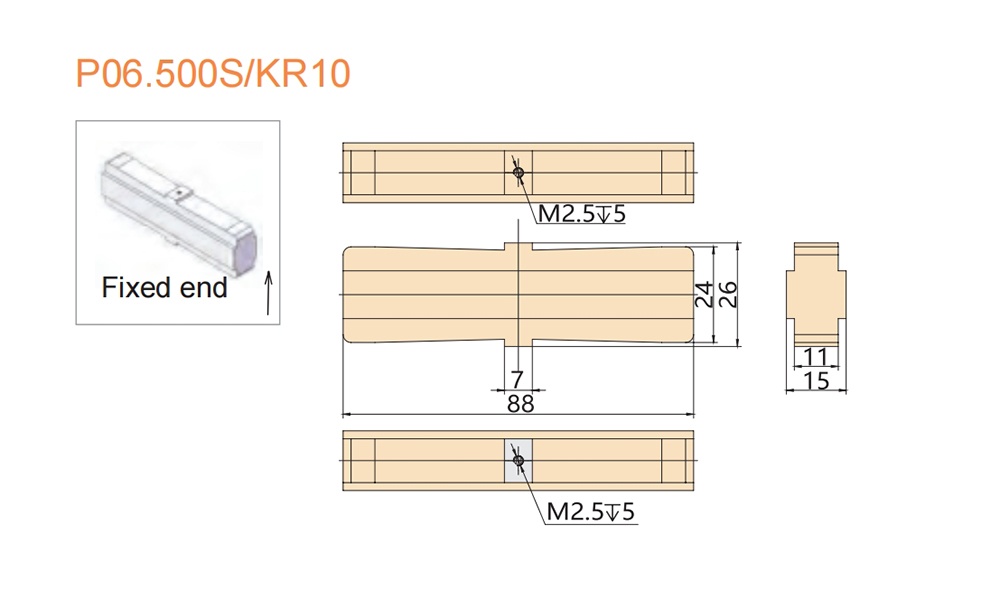

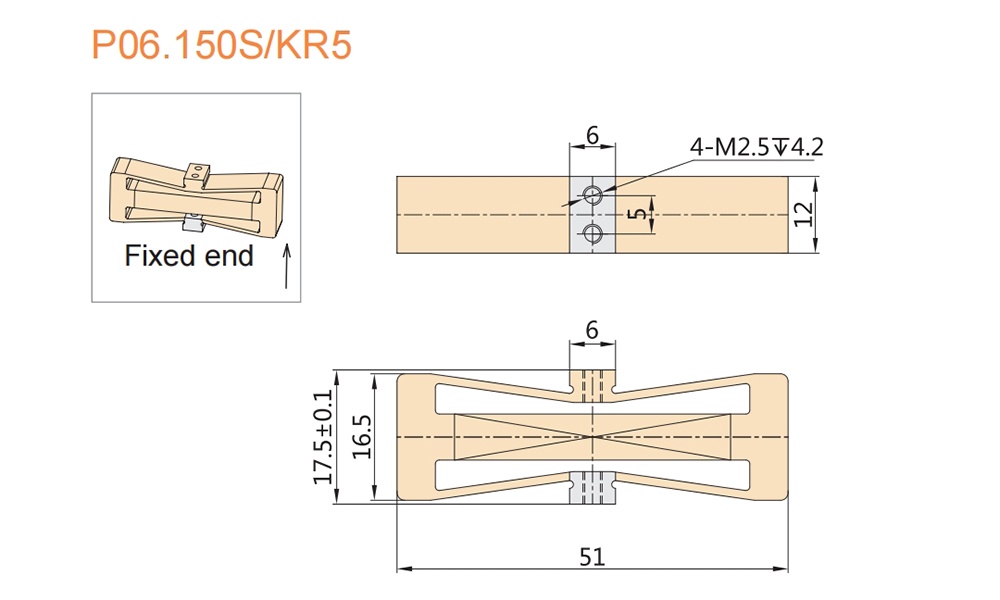

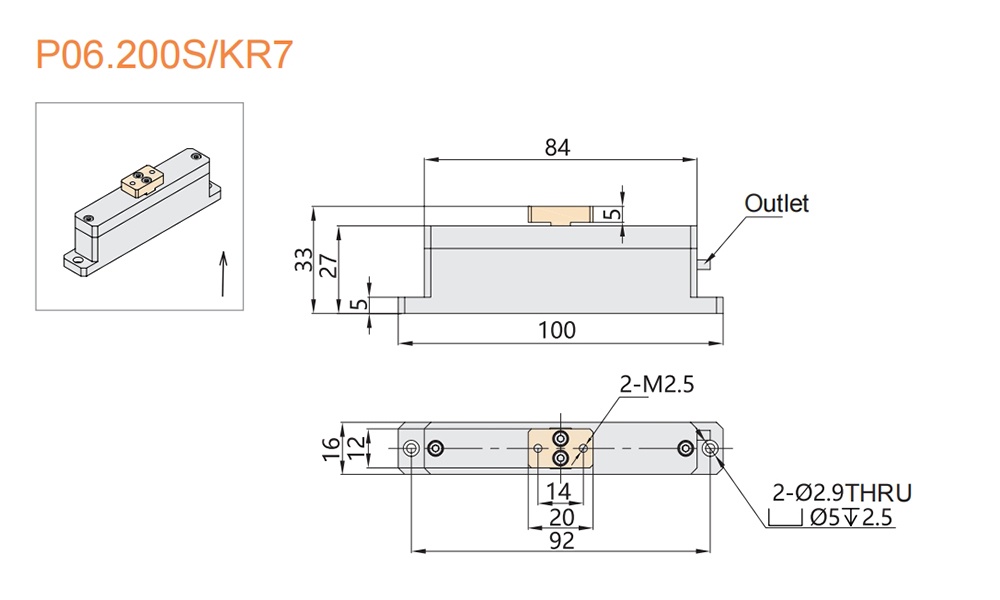

series
|
|
|
||
|
|
|
*Nominal Stroke corresponding drive voltage 0-150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
|
|
|
|
|
