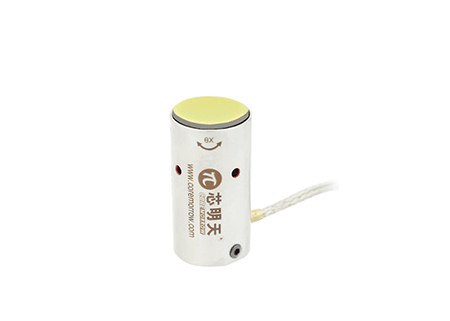

XD302 serie is open-loop 2-dimensional θX, θY motion piezoelectric fast steering mirror which is designed for high dynamic applications. The unload resonant frequency is up to 15kHz, and the small size is suitable for space-limited applications.
Features
θX, θY deflection motion
Compact structure
Open loop, high resolution
Suitable for highly dynamic applications
Applications
XD302 is suitable for various optical path adjustments such as rapid scanning of laser processing and stable laser light path.
2 model versions
XD302 series have two models: XD302-D1 and XD302-D2. The displacements of the two models are 3mrad and 1.5mrad, respectively, and the no-load resonance frequency of both versions is up to 15kHz. Moreover, their volume is very compact, the outer diameter is only 15.6mm, the height is 30mm, 21mm.

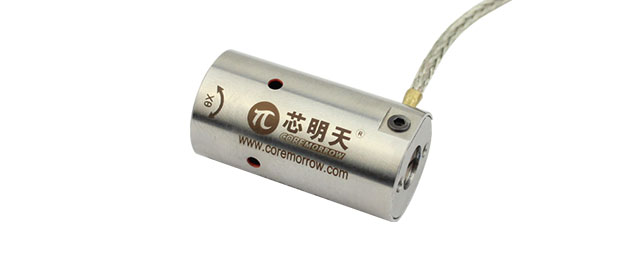

XD302-D1
Models: XD302-D1
Active axes: θx、θy
Travel range(0~120V): 3/±1.5mrad
Resolution: 0.03μrad
Unloaded resonant frequency: 15kHz
Resonant frequency @Ø12.5×3mm mirror: 10kHz
El.capacitance: 1.6μF/axis
Material: Titanium alloy, steel
Mass: 30g
Driving: 3 channels
Height(L): 15.6/30mm

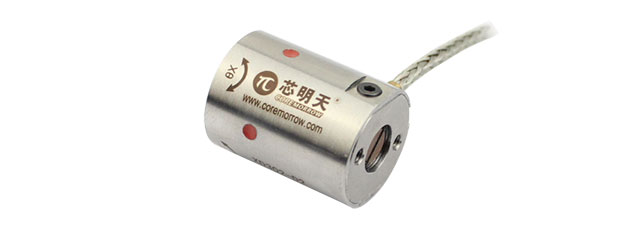

XD302-D2
Models:XD302-D2
Travel range(0~120V): 1.5或±0.75mrad
Resolution: 0.02μrad
Unloaded resonant frequency: 15kHz
Resonant frequency @Ø12.5×3mm mirror:10kHz
El.capacitance:0.7μF/axis
Material: Titanium alloy, steel
Mass: 20g
Driving: 3 channels
Height(L): 15.6/21mm

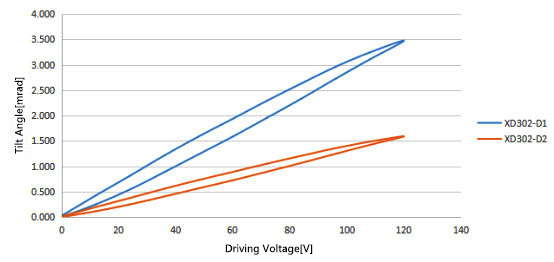

Tilt Angle VS Driving Voltage
