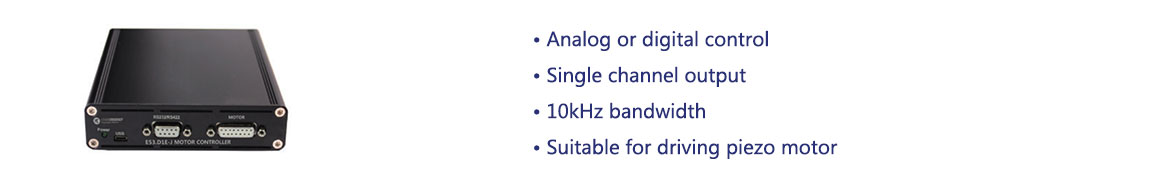

E53.D1E/C1K-J Piezo Motor Servo Controller is designed for driving CoreMorrow 360° piezo rotation motor, digital control, and features small size.

Characteristics

Digital control

Single channel output

Servo control or open loop

Suitable for driving piezo motor

Technical Data
Types	E53.D1E-J	E53.C1K-J	Units
Input supply	24VDC/1A(20~30)	24VDC/1A(20~30)	V
Servo control	Servo control	Open loop
Static dissipation	<5	<5	W
Processor	32bit 168MHz	32bit 168MHz
D/A converter	16bit	16bit
Communication interface	TYPE-C, RS-422, RS-232	TYPE-C, RS-422, RS-232
Rated output	9	9	W
Operating temperature	0~50	0~50	℃
Output short-circuited current	60	60	mA
PZT connector	DB15	DB15
Communication connector	DB9、TYPE-C	DB9、TYPE-C
Size	105×103×30.1	105×103×30.1	mm
Mass	0.31	0.31	kg

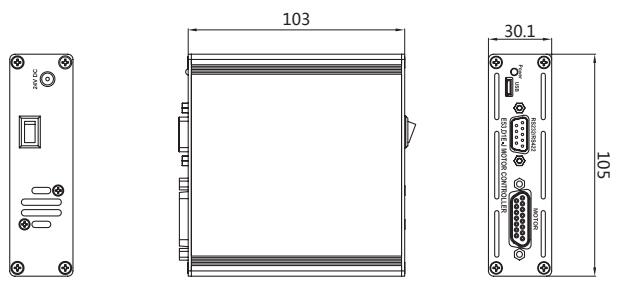

Drawings（Click on the picture to enlarge it）
